Product Details:
|
| Width: | 600mm-1800mm | Standard: | ASTM,AISI,GB,JIS,DIN |
|---|---|---|---|
| Grade: | DX51D Z275-Z300 | Application: | Roofing,Decor,Flange Plate,commercial Use |
| Technique: | Cold Rolled Galvanized Steel | Coil Weight: | 2.5-8ton |
| Type: | Steel Coil | Surface: | Galvanized Coated,chromated And Oiled |
| Thickness: | 0.12-4.0 | ||
| High Light: | DX51D Z275 Galvanized Steel Strip Coils,Thickness 1.6mm Galvanized Steel Coils,Cold Rolled Galvanized Steel Coil Strip |
||
Grade :SGCC, SGC340, DX51D, SGH440 ,SGH340 S390GD S350GD SGHC DX51D DX52D DC53+Z
Width 10-1800mm
Coil ID: 508mm 610mm
Length : 2000 2500 6000mm or in Coil Strip
Zn Coating : 30-600G/M2
Edge : Mill and Slit edge
Surface Structure:Regular, Minimmal, Zero, Big Spangle
Welcome to consult the quotation with or to import cheap standard dx51d z275 galvanized steel coil made in Wuxi City China from us, which is one of the most credible standard dx51d z275 galvanized steel coil manufacturers and suppliers.
1. Product Specification
|
Name Of Product |
Hot Dipped Galvanized Steel Coil |
| Grade | ,SGCC , DX51D ,SGCD S350GD |
| Certification | ISO9001 ,2000 MTC |
| Thickness | From 0.14 mm to 4.0 mm , all available |
| Width | From 930 mm to 1500 mm ,all available |
| Coat Fabric | Top Coating: 10-25 micron ;Back Coating: 5-7 micron primer |
| Color | According to RAL ,or as customer’ model |
| Surface Treatment | Oils coated ,Zinc Coated, Color Coated |
| Package | Standard Seaworthy Package |
|
Application |
1) Cable armouring 2) Deep drawing applications 3) Constructions 4) Electric appliance |
2.Chemical Composition:
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| GRADE | Yield Strength MPa | Tensile Strength MPa | Elongation % | |||
| SGCC(DX51D+Z) | ≥205 | ≥270 | - | |||
| SGCD(DX53D+Z) | - | ≥270 | 38 | |||
| SGCE(DX54D+Z) | - | ≥270 | 4 | |||
3,Different Surface:Small,Large,Zero.Select as per your requirement

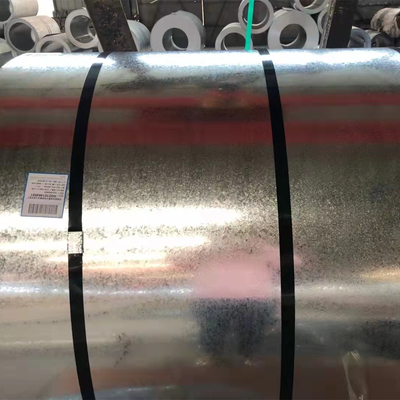

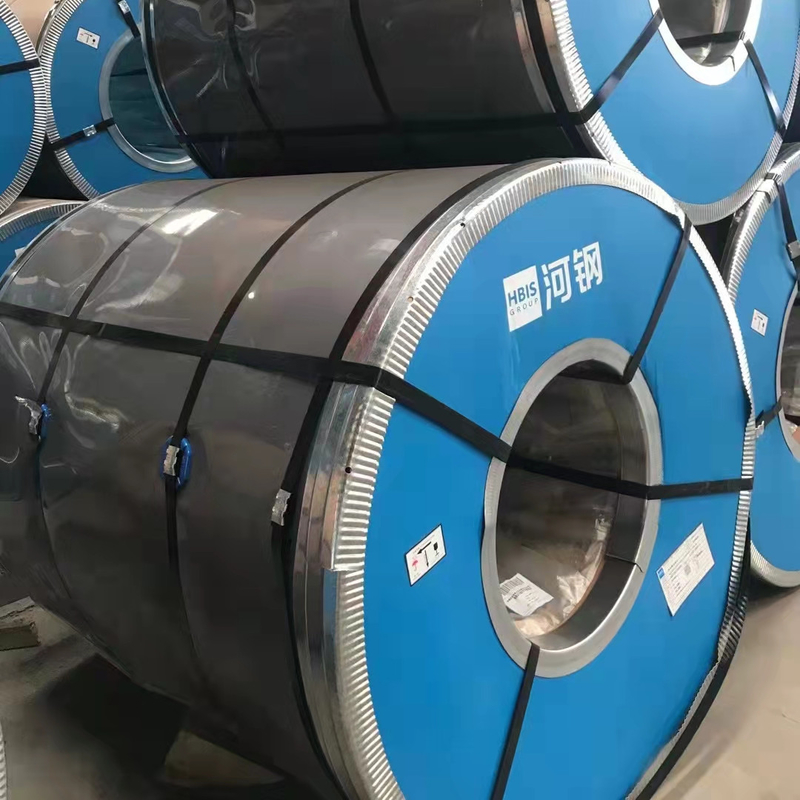

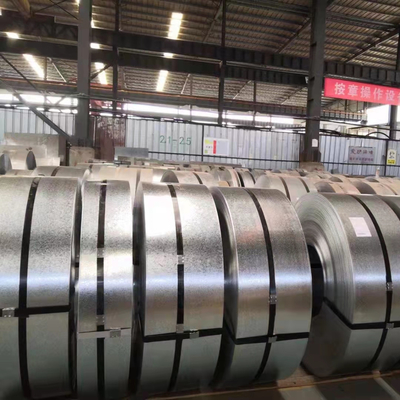

4. Product Show
5. All items of our products and related tests as follow :
1.ERW black round pipe (ASTM A53,GB..)
2.Weld black square/rectangular pipe(ASTM A500,GB,...)
3.Hot dip galvanized round pipe (BS 1387,ASTM A53,GB ,...)
4.Hot dip galvanized square/rectangular pipe(ASTM A500,GB...)
5.Pre-galvanized square/rectangular/round pipe,cold rolled black annealed or bright finished pipe.
6.Spiral steel pipe
7.Seamless pipe (ASTM A53,A106B,)
8.Oval pipe in galvanized and black surface
9.LTZ... special sizes pipe
10.Steel prop , steel plank,steel scaffolding pipe and accessories... steel constrctution material
11.Steel angle, Flat bar,round bar,sqaure bar,
12.H,I,U,C,T,Y,W...steel beam/channel
13.Deformed steel bar
14.Hot rolled& cold rolled steel sheet/coil in black,galvanized,color coated surface.
Packing: In bundle.
Loading port: shanghai Tianjin,China.
Shipment:usual length ≤5.8m by 20'GP,6m-12m by 40'GP(some sizes with 6m L can be into 20'GP).
Our company have all kinds of professional quality in product test technology to ensure
our product high quality.
