Product Details:
|
| Product: | Galvanized Steel Channel Bar | Model NO.: | Q235b A36 |
|---|---|---|---|
| Shape: | U Channel | Surface: | Galvanized Or Black |
| Type: | Cold Bending Equal Channel Galvanized | Size: | Cutomized |
| High Light: | u slotted strut channel bar,galvanized shaped steel strut channel bar,profile strut channel bar |
||
Product Description
Steel channel is a hot-rolled carbon steel channel shape. Constructed using a vertical web and top and bottom horizontal flanges with inside radius corners, it is available in a wide range of sizes and thicknesses. The shape provides superior structural support, making it an ideal product for frames and braces used for machinery, enclosure, vehicle, building and structural support applications.
|
ITEM
|
Stainless Steel Bars/Channel/Angle/Round Bar/Hexagonal Bar
|
|
Size
|
Thickness:3-24mm; Length:3m,6m,9m,12m, or customized
|
|
Tolerance
|
Weight tolarance: -4% TO -10%;Width +/-0.8mm;Thickness +/-0.4mm;Length:4-12mm
|
|
Brand
|
MITTEL ,BAOSTEEL, JISCO, TISCO, etc.
|
|
Equal Angle
|
Type: 2#-20#;Size: 20-200mm;Thickness: 3.0-24mm; Weight: 0.597-71.168kg/m
|
|
Unequal
Angle |
Type: 2.5*1.6-20*12.5#;Size:25*16-200*125mm;Long Side: 25-200mm
Short Side: 16-125mm;Thickness: 3.0-18mm;Weight: 1.687-43.588kg/m |
|
Material
|
A36 Q235B SS400 S235JR S355JR |
|
Standard
|
GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
|
|
Surface
|
Mill finish. Galvanized.Forged.Hot Rolled.Cold Drawn.Peeled or customized
|
|
Trade Term
|
FOB CIF CFR CNF EXWORK
|
|
Application
|
widely used in a variety of architectural and enginee
ring structures,such as a.) beams, bridges, ship; b.) transmission tower, reaction tower; c.) lifting transportation machinery; d.) industrial furnace; e.)container frame, warehouse goods shelves, etc |
|
Package
|
Standard export sea-worthy packing or customized
|
|
Lead Time
|
3-15 days after deposit
|
|
Payment
|
TT/LC
|
|
Sample
|
we could offer the sample for free charge but do not pay the cost of freight.
|
Packaging & Delivery:
| Packaging details | 1.Big order: in bulk |
| 2.Small order: packed by steel strips | |
| 3.woven cloth with 7 slats | |
| 4.according to the requirements of customers | |
| 5. 20ft container can load 25 tons, 40ft container can load 26 tons. | |
| Delivery | 3-15 working days after received the deposit or L/C. |
Delivery term: EXW, FOB, CFR, CIF
Sample: available
Alloy or not: Alloy steel
Spot goods: Regular size have stock
| Channel Steel (H * B * T ) |
|||||
| Size (mm) |
Theoretical Weight (kg/m) |
Size (mm) |
Theoretical Weight (kg/m) |
||
| 5 | 50*37*4.5 | 5.438 | 22b | 220*79*9 | 28.453 |
| 6.3 | 63*40*4.8 | 6.634 | 25a | 250*78*7 | 27.41 |
| 6.5 | 65*40*4.8 | 6.709 | 25b | 250*80*9 | 31.335 |
| 8 | 80*43*5 | 8.054 | 25c | 250*82*11 | 35.26 |
| 10 | 100*48*5.3 | 10.007 | 28a | 280 *82*7.5 | 31.427 |
| 12 | 120*53*5.5 | 12.059 | 28b | 280*84*9.5 | 35.823 |
| 12.6 | 126*53*5.5 | 12.318 | 28c | 280*86*11.5 | 40.219 |
| 14a | 140*60*8 | 14.535 | 30a | 300*85*7.5 | 34.463 |
| 14b | 140*60*8 | 16.733 | 30b | 300*87*9.5 | 39.173 |
| 16a | 160*63*6.5 | 17.24 | 30c | 300*89*11.5 | 43.883 |
| 16b | 160*65*8.5 | 19.752 | 36a | 360*96*9 | 47.814 |
| 18a | 180*68*7 | 20.174 | 36b | 360*98*11 | 53.466 |
| 18b | 180*70*9 | 23 | 36c | 360*100*13 | 59.118 |
| 20a | 200*73*7 | 22.64 | 40a | 400*100*10.5 | 58.928 |
| 20b | 200*75*9 | 25.777 | 40b | 400*102*12.5 | 65.204 |
| 22a | 220*77*7 | 24.999 | 40c | 400*104*14.5 | 71.488 |
Product Advantages :
Convenient in construction and save much time and labor
Light ,good quality and reasonable price
The shape and specification can be made by customer's requirement
High mechanical strength
Attractive in appearance and reasonable designs
Channel Steel:
Grade:A36,S235jr,St37-2,SS400,Q235,Q195
Standard:JIS,GB,ASTM,EN,DIN
Dimensions:50*37*4.5mm,400*104*14.5mm
Length:6m,9m,12m or as your requirement
Technique:hot rolled,cold bending
Application:industry,construction,etc...
Packing detail: In bundle or as customer's requirements
compam information :
Our company is a manufacture specialized in flat bar, Channel bar which is located in wuxi City.
We have been in this line of business for many years.Have the honor of the first flat steel production
base in China.We are capable of producing satisfactory products for our customers.We say what we do,
gratitude to customers and make staff create unique achievements is our eternal promise!

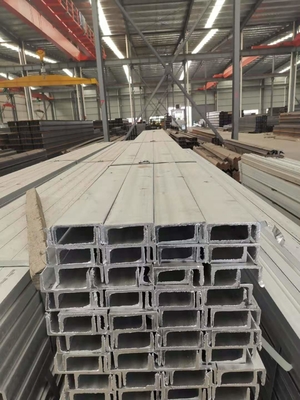

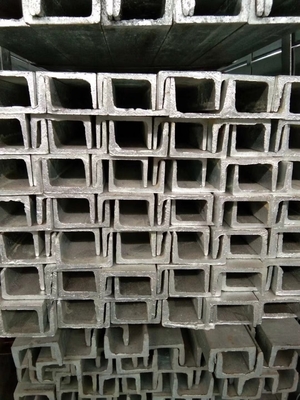

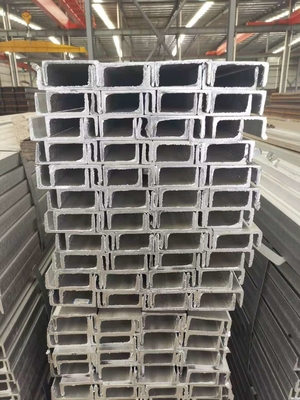

Product show:
Packaging & Delivery:
| Packaging details | 1.Big order: in bulk |
| 2.Small order: packed by steel strips | |
| 3.woven cloth with 7 slats | |
| 4.according to the requirements of customers | |
| 5. 20ft container can load 25 tons, 40ft container can load 26 tons. | |
| Delivery | 3-15 working days after received the deposit or L/C. |
