Product Details:
|
| Products: | Stainless Steel Round Bar | Grade: | 316LN |
|---|---|---|---|
| Diameter: | 12 - 250mm | Length: | 6m/pcs |
| Standard: | ASTM A276/276M | Finish: | Hot Rolled Black Surface |
| Service: | Cutting | MOQ: | 50 Kgs |
| High Light: | ASTM Stainless Steel Solid Round Bar,316LN Stainless Steel Solid Round Bar,12mm 316 stainless steel round bar |
||

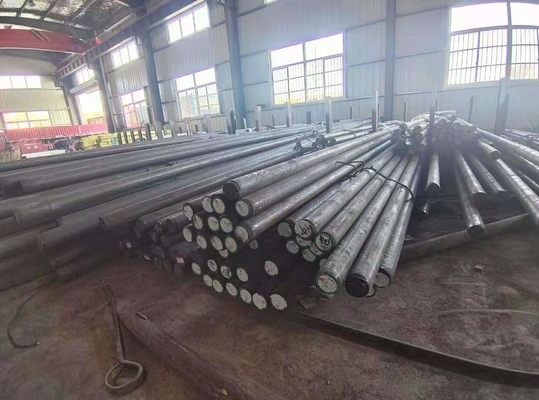

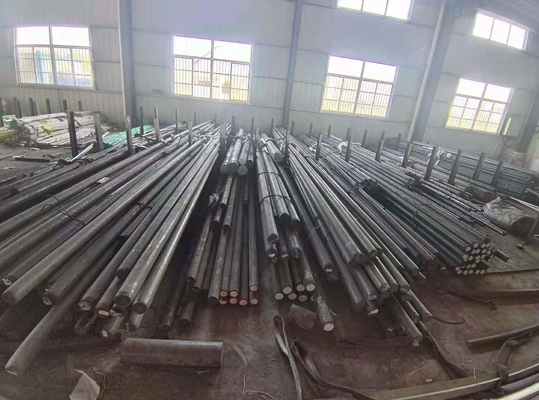

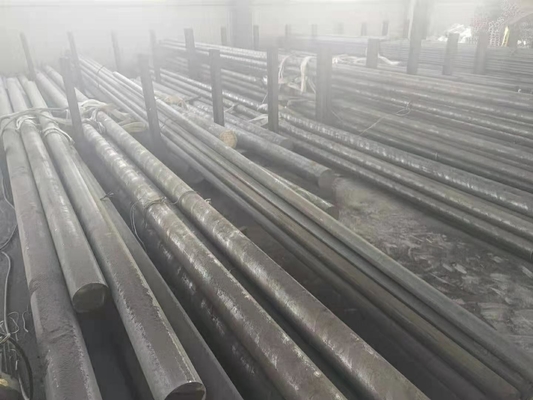

ASTM Standard Stainless Steel Round Bar 316LN Stainless Steel Rod Diameter 12 - 250mm
SS 316LN ROUND BARS & STEEL 316LN ROUND RODS SPECIFICATION
| Grade | Stainless Steel 316LN (UNS S31653) |
| Standard | ASTM A276 / ASME SA276 |
| Diameter | 12mm to 250mm dia |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Finish | Bright, Polish & Black |
| Type | Round/Square/ Hexagonal/ Rectangular |
About 316LN stainless steel
316LN (UNS S31653) is a lowcarbon, nitrogen-enhanced version of Type 316 molybdenum-bearing austenitic stainless steel. The Type 316 alloys are more resistant to general corrosion and pitting/crevice corrosion than the conventional chromium-nickel austenitic stainless steels such as Type 304. They also offer higher creep, stress-rupture and tensile strength at elevated temperature. The nitrogen in Type 316LN adds additional resistance to sensitization in some circumstances.
The nitrogen content of Type 316LN stainless steel also provides some solid solution hardening, raising its minimum specified yield strength compared to Type 316L stainless steel. Like Types 316 and 316L, the Type 316LN alloy also offers good resistance to general corrosion and pitting/crevice corrosion.
The chemical composition of grade 316LN stainless steel is outlined in the following table.
| Element | Content (%) |
|---|---|
| Iron, Fe | Balance |
| Chromium, Cr | 16.0-18.0 |
| Nickel, Ni | 10.0-14.0 |
| Molybdenum, Mo | 2.0-3.0 |
| Manganese, Mn | 2.00 |
| Silicon, Si | 1.00 |
| Nitrogen, N | 0.10-0.30 |
| Phosphorous, P | 0.045 |
| Carbon, C | 0.03 |
| Sulfur, S | 0.03 |
Typical Applications
