Product Details:
|
Grade: | 316L | Application: | Construction,Industry |
---|---|---|---|
Standard: | ASTM | Shape: | Falt Plate |
Type: | Flat | Length: | 5.8-12m |
Technique: | Hot Rolled | Surface: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
Width: | 10mm~500mm | ||
High Light: | 316L stainless flat bar,ASTM A240 stainless flat bar,ASTM A276 Stainless Flat Bar |

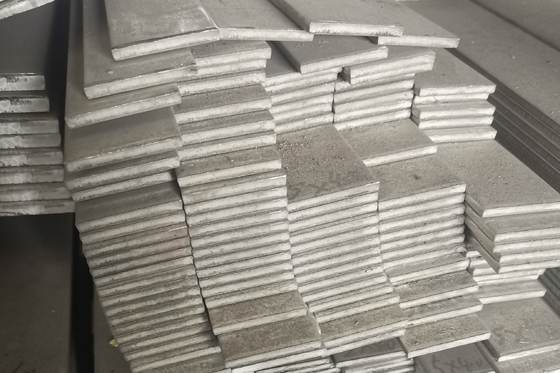

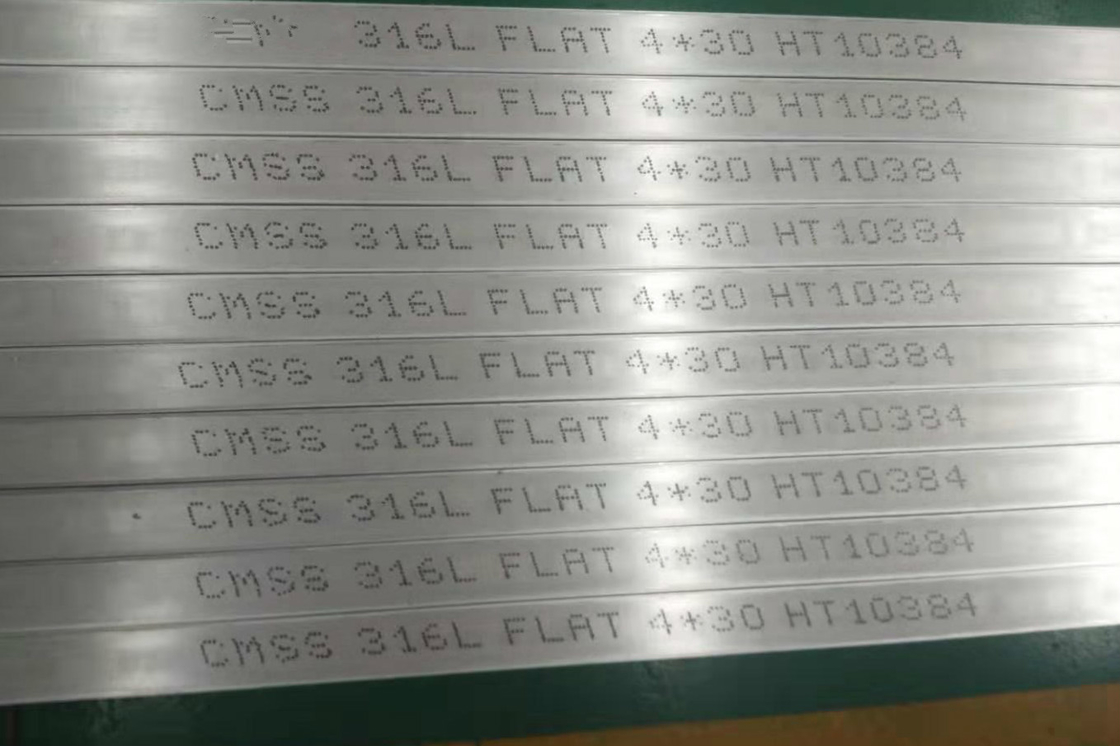

ASTM A240 316L Stainless Steel Flat Bar Hot Rolled ASTM A276 TP316L Flat Bar
Width | 10mm-2000mm |
Thickness | 0.3mm-100mm |
Length | As your requirements |
Materials |
304,TP304,TP304L,309S,310S,310H, TP316,TP316L,316Ti,317,317L,317Ti,321,SUS321,347,SUS347,440C,440F,C-276,Ni80Cr20,Ti,630,631,632,XM7,329JI,2205,2207,S32750,S32550,S32154,S32183, 904L, |
Minimum order | 1 Ton |
Standards | ASTM A511 A269 A312 A213, GB/ T14976-2002 GB 13296-91 |
FOB Price | the latest price |
Surface | polish, primary color, matt, mirror face ,wire drawing |
Productions requirement | cold drawing, cold rolling, precision rolling |
Main markets | Asia, Europe, Middle-east area, Africa, South/North America |
Certification | ISO, SGS |
Application | chemical industry, metallurgy, construction, water conservancy |
Alloy 316/316L is molybdenum-bearing austenitic stainless steel. The higher nickel and molybdenum content in this grade allows it to demonstrate better overall corrosion resistant properties than 304, especially with regard to pitting and crevice corrosion in chloride environments. In addition, Alloy 316/ 316L provides excellent elevated temperature tensile, creep and stress-rupture strengths, as well as outstanding formability and weldability. 316L is the lower carbon version of 316 and is immune from sensitization; therefore, it is very frequently used in heavy gauge welded components.
Specifications: UNS S31600 / S31603
Chemical Properties:
C | Mn | Si | P | S | Cr | Mo | Ni | N | |
---|---|---|---|---|---|---|---|---|---|
316 (S31600) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
Mechanical Properties:
Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
---|---|---|---|---|---|
316 (S31600) |
75 | 30 | 40 | 217 | 95 |
316L (S31603) |
70 | 25 | 40 | 217 | 95 |
