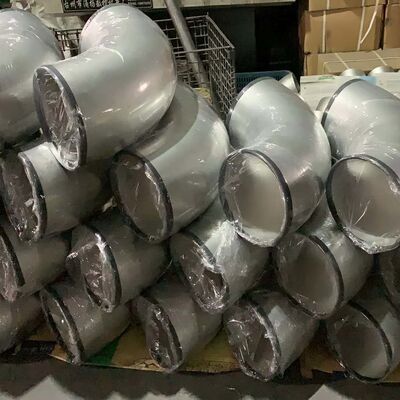

Elbow 45º Long Radius in Avesta 254SMO 10" Sch-40 BW S31254 Stainless Steel Eblow

254SMO is an austenitic stainless steel designed for maximum resistance to pitting and crevice corrosion. With high levels of chromium, molybdenum,and nitrogen, 254SMO is especially suited for high chloride environments such as brackish water, seawater, pulp mill bleach plants and other highchloride process streams. 254SMO offers chloride resistance superior to that of Alloy 904L, Alloy 20, Alloy 825 and Alloy G. 254SMO is compatible with the common austenitic stainless steels. It is often used as a replacement in critical components of larger constructions where Type 316L or 317L has failed by pitting, crevice attack, or chloride stress corrosion cracking. In new construction, 254SMO has been found in many cases to be a technically adequate and much less costly substitute for nickel-based alloys and titanium. 254SMO is substantially stronger than the common austenitic grades, but is also characterized by high ductility and impact strength. 254SMO is readily fabricated and welded.

Description:
254SMo 1.4547 ,UNS S31254 Super Austenitic Stainless Steel Pipe or Tube

Standard:
ASTM A213, A249,A269, A358,A312, A511, A554, A789, A790, A376, EN 10216-5, EN 10297, EN 10217, EN 10296,DIN 17456, DIN 17458,JISG3459, JIS GS3463, GS3467, JIS G3448, GOST 9940, GOST 9941,

Material: 254SMo,1.4547,UNS S31254,X1CrNiMoCuN 20-18-7

Nominal Dia: 1/2 "to 24" NB for seamless pipe, 3/8" to 40" NB for welded pipe
Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
Size Range for tubing: OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)

Length:
15m(Max) or as your requirement

Process:
Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube
Gas tungsten arc welding, Plasma arc welding (PAW),Submerged arc welding (SAW) For Welded Pipe or Tube

Finish: Annealed & pickled, bright annealing, polished

Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end

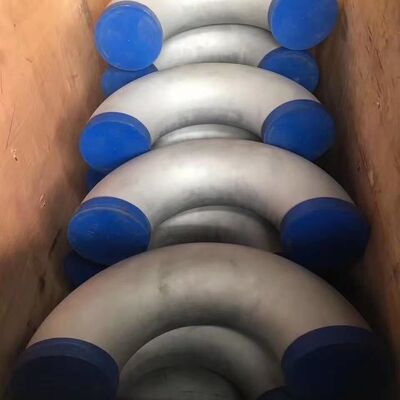

Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test Procedure
1. 100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2. 100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6. Straightness Test (optional)
7. Roughness Test (optional)
8. Intergranular Corrosion Test(optional)
9. Impact Test (optional)
10. Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.

Application:
Seawater handling equipment
Pulp mill bleach systems
Tall oil distillation columns and equipment
Chemical processing equipment
Food processing equipment
Desalination equipment
Flue gas desulfurization scrubbers
Oil and gas production equipment
