Home ProductsGalvanized Steel Coils

Dipped Galvanized Corrugated Sheet As Per JIS G3302 SGCH Regular Spangle Chromated

Certification
Good quality Stainless Steel Plates for sales
Good quality Stainless Steel Plates for sales
this is the second order l buy this company ,quality is very good ,same as europure quality .we will go on ccooperate with this company .

—— Andrew Greg - Turkey

200 ton Stainless steel sheet is arrived on 10th Oct 2014 , the quality is very good.,deliver time is very fast It's very lucky we find this factory

—— Mechile Kilar Chard - Brazial

We Have Cooperate With this Factory Many Years , Everything Goes Very Well.l Like This Factory !

—— Tony Hilton - Poland

This is Our Thrid Time Buy from Mittel,Quality is Very Goods ,We Are Glad to Find This Reliable Factory

—— Natalya Ugay-Russia

Quality is very good and delivery time very fast ,we want to do long terms business with this company

—— Pongpol Pluemsati-Thailand

I'm Online Chat Now

Dipped Galvanized Corrugated Sheet As Per JIS G3302 SGCH Regular Spangle Chromated

China Dipped Galvanized Corrugated Sheet As Per JIS G3302 SGCH Regular Spangle Chromated supplier
Dipped Galvanized Corrugated Sheet As Per JIS G3302 SGCH Regular Spangle Chromated supplier

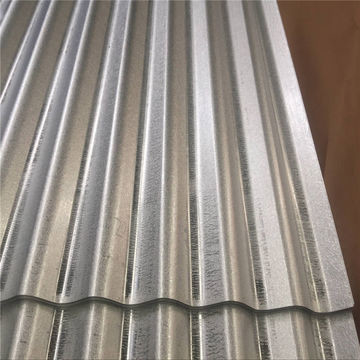

Large Image :  Dipped Galvanized Corrugated Sheet As Per JIS G3302 SGCH Regular Spangle Chromated

Product Details:

Place of Origin: China
Brand Name: MITTEL
Certification: SGS ISO MTC
Model Number: JIS G3302

Payment & Shipping Terms:

Minimum Order Quantity: 500KGS
Price: 0.75 USD/KG
Packaging Details: Wooden Pallet BOX
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 80000KGS
Contact Now
Detailed Product Description
Width: 100mm-1500mm Standard: ASTM,AISI,JIS,DIN
Length: Coil Grade: SGCC,Q195 DX51D DX53D SGCC
Zinc Coating: 30-275g/m2 Application: Roofing
Technique: Cold Rolled Coil Weight: 2.5-8ton
Type: Steel Coil Spangle: Normal,Reuglar Spangle,Minimized
Thickness: 0.12-4.0

1. Brief Introduction
It is a plain carbon steel sheet coated in a galvanizing process that applies a barrier of zinc to
insulate it from the elements. Most of the corrugated roofing and siding products seen today
and for many years past are made with a galvanized finish

2. Roofing Sheet Finish
As with almost any product the finish of the galvanized metal finish will change over time. After
a period of time, the surface will appear to have a white oxide look. When this happens the
material is actually protecting itself from further damage. We stock and sell several corrugated
and decking panels in either a (G-60) or (G-90) level of galvanizing

3. Application scope
It is most commonly used for commercial, agricultural, and industrial purposes, however, it is
now also being recognized as an excellent form of residential roofing

4. Advantages
A normal steel sheet will rust almost immediately, but galvanizing will protect the steel. This
galvanized, eltro-coated, hot-dipped process produces a silvery look or spangled finish. As
a standard, several of our industrial metal siding, metal roofing, metal decking, corrugated
metal panels and accessories are made in galvanized steel

5. Technical Processing
Hot rolled steel coil -->Cold rolled- >hot dipped galvanized/ galvalume- > corrugated-->packing

6. Common size as follows
1) 762mm to 665mm(ater corrugated)and 9 waves
2) 914mm to 750mm(after corrugated)and 11 waves
3) 1000mm to 890 or 900mm(after corrugated and12or14waves

Product Hot Dipped Galvanized Corrugated Steel Iron Roofing Sheet
Base material Hot dipped galvanized steel sheet; Hot dipped galvalume steel sheet
Material Grade SGCC / SGCH / DX51D+Z / DX51D+AZ, etc
Thickness 0.12-0.8mm
Width before corrugation 750mm,762mm,800,900mm,914mm,1000mm ,1200mm
Tolerance Thickness: +/-0.02mm Width:+/-2mm
Zinc-coating 40g/m2-275g/m2(G30-G60).
Technique Hot rolled steel coil > Cold rolled>hot dipped galvanized>corrugated
Terms Raw material width 762mm,after corrugated width 665mm:9 waves
Raw material width 914mm,after corrugated width 800mm:11 waves
Raw material width 1000mm,after corrugated 890/900mm:12 or 14 waves
Feature Roofing Steel Sheet have excellent performance of decoration, corrosion resistance etc.
Export package Waterproof paper, galvanized steel covered and steel strip packed



Dipped Galvanized Corrugated Sheet As Per JIS G3302 SGCH Regular Spangle ChromatedDipped Galvanized Corrugated Sheet As Per JIS G3302 SGCH Regular Spangle Chromated
