Product Details:
|
| OD: | 6-630mm | Thickness: | 0.5-30mm |
|---|---|---|---|
| Length: | 1000-12000mm | Surface: | NO.1 |
| Type: | Seamless | Use: | Heat Exchanger |
| High Light: | seamless stainless steel tube,astm stainless steel pipe |
||
Stainless Steel Heat Exchanger Tubes SA 213 TP 904L For Heat Exchanger Application 57mmOD x 3mm thk
UNS N08904, 904L Welded Stainless Steel Tube and Pipe, DIN 1.4539
Description:
1. Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids.The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.
2. Main Steel Grade: UNS N08904 / DIN 1.4539 / 904L / X1NiCrMoCuN25-20-5
3. Dimension / Speficication:
One Straight Seam: O.D.: 6MM - 914MM, W.T.: 0.5MM - 60MM
Double Straight Seam: O.D.: 630MM - 1524MM, W.T.: 2MM - 80MM
Circular Seam: O.D.: 630MM and above, W.T.: 2MM-100MM
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| 904L | min. max. | -0.020 | -2.00 | -1.00 | -0.045 | -0.035 | 19.0-23.0 | 4.0-5.0 | 23.0-28.0 | 1.0-2.0 |
Mechanical Properties
| Grade | Tensile Strength (Mpa) min | Elongation(% in 50mm) min | Yield Strength 0.2% Proof (Mpa) min | Hardness |
| 904L | 490 | 35 | 220 | 70-90 typical HRB |
Remark: Rockwell Hardness value range is typical only; other values are specified limits.
4. Testing:
(1). Visual and Dimensional Checking
(2). Chemical Composition Test
(3). Mechanical Properties Test, such as Tensile Test, Yield Test, Elogation Test, Hardness Test , etc
(4). 100% RT
(5). Hydro Static Test
5. Surface: Solution Annealled and Pickled
6. Length: 6m, 11.8m or advised by customers
7. Payment: L/C or T/T or negotiable
8. Marking: As per Standard
9. Packing: Reinforced plywood box or Bundle with plastic Caps
10. 3rd party inspection is acceptable
Our Advanatages:
1.Professional Producer and Regular Stock Holder
2.Supplying full range of weldled stainless steel tubes / pipes with Russian Standard, American Standard and DIN Standard
3.Complete Testing equipment, such as RT test , Heat treatment furnace and HT
4.Focus on Projects
Applications:
Oil Refinery Industry;
Pulp and Paper-making Industry;
Seawater Treatment;
Acetic, phosphoric and sulphuric acid processing plants

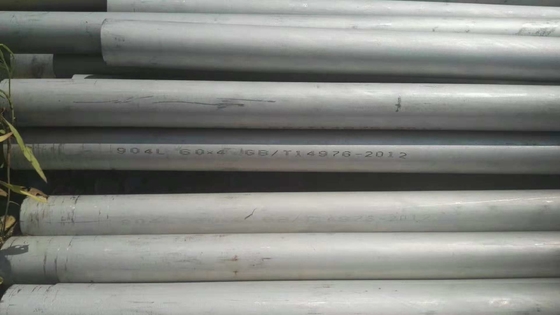

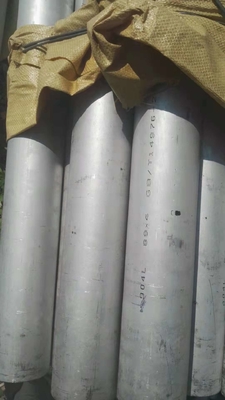

Photoes:
