Product Details:
|
| Standard: | ASTM, DIN, GB, JIS | Thickness: | 0.13-0.8MM |
|---|---|---|---|
| Type: | Steel Coil | Surface Treatment: | Coated |
| Technique: | Grain Oriented Electrical | Width: | 20-1500mm |
| High Light: | hot dipped galvanized steel coils,galvanized steel sheet in coil |
||

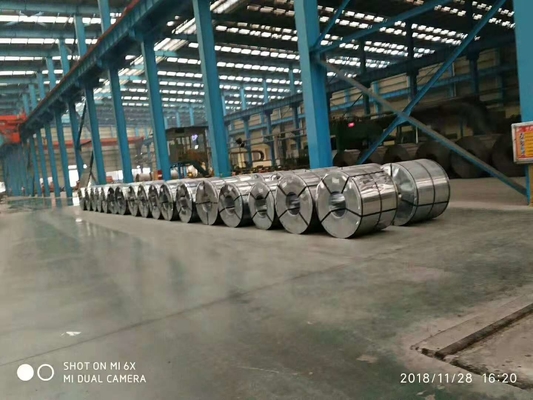

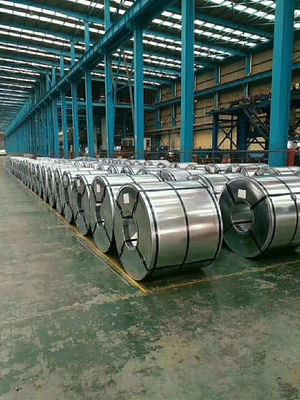

Steel Cold Rolled Grain Oriented Electrical Sheet 30QG100 CRGO Coils Electrical Steel Sheet
30QG100 CRGO Coils Electrical Steel Sheet , Cold Rolled Grain Oriented Steel
Cold-rolled electrical steel is also called silicon steel, As the name suggests, the electrician silicon steel is made by cold rolled with the silicon content ranged from 0.8％-4.8％. General thickness below 1mm, therefore calls the thin steel.
The cold rolling silicon steel is classified as the crystal grain non- oriented and the crystal grain oriented one. The crystal grain oriented cold rolling steel serves as the power transformer, large-scale generators and other equipment cores.
| Commodity | Prime CRGO EI Core Silicon Steel Sheet Electrical Steel Coil Grain Oriented Electrical Steel |
| Standard | ASTM, BS, DIN, GB, JIS,etc. |
| Nominal Thickness | 0.23/0.27/0.30/0.35mm |
| Nominal Width | 10mm~1200mm |
| Length | Any Length Based on Coil Weight or by Required |
| Application | Suitable for Transformer,Reactor and other electrical products |
| Steel Grade | Thickness Mm | Theoretical Density Kg/Dm3 | Tatal Iron Loss P1.7/50 W/Kg | Magnetic Polarization B800 T |
| 30QG100 | 0.3 | 7.65 | ≤1.00 | ≥1.89 |
| 30QG105 | 0.3 | 7.65 | ≤1.05 | ≥1.89 |
| 30QG110 | 0.3 | 7.65 | ≤1.10 | ≥1.89 |
| 30QG120 | 0.3 | 7.65 | ≤1.20 | ≥1.89 |
| 30Q120 | 0.3 | 7.65 | ≤1.20 | ≥1.80 |
| 30Q130 | 0.3 | 7.65 | ≤1.30 | ≥1.80 |
| 30Q140 | 0.3 | 7.65 | ≤1.40 | ≥1.79 |
| 27QG100 | 0.27 | 7.65 | ≤1.00 | ≥1.89 |
| 27QG110 | 0.27 | 7.65 | ≤1.10 | ≥1.89 |
| 27QG120 | 0.27 | 7.65 | ≤1.20 | ≥1.89 |
| 27Q120 | 0.27 | 7.65 | ≤1.20 | ≥1.80 |
| 27Q130 | 0.27 | 7.65 | ≤1.30 | ≥1.79 |
| 27Q140 | 0.27 | 7.65 | ≤1.40 | ≥1.78 |
| 35Q135 | 0.35 | 7.65 | ≤1.35 | ≥1.80 |
| 35Q145 | 0.35 | 7.65 | ≤1.45 | ≥1.80 |
| 35Q155 | 0.35 | 7.65 | ≤1.55 | ≥1.78 |
Size: 0.27/0.3/0.35X800-1000XC
Coil ID: 508MM
Coil weight: 2-6MT
FAQ:
1. Q: How To Order?
A: Step 1. please tell us specification about size, color, paint coating,
quantity and port for quotation.
Step 2. then we will make a PI for you to confirm the order details;
Step 3. when we confirmed everything, you can arrange the deposit for production;
Step 4. finally we deliver the goods within the stipulated time.
2. Q: What colors are available?
A: Color in RAL K7 CLASSIC are all available and make as special color sample also available.
3. Q: What's MOQ?
A: MOQ is 25TON per size per color.
4. Q: When will make delivery ?
A: Delivery Time: 15-25 days after receipt of the deposit according to production schedule.
5. Q: How about payment?
A: it should be 30%TT deposit + balance T/T against BL copy or by LC at sight.
6.Q: Who can be our (sole)agent:
A: With good experience in steel biz,good connections with various endbuyers in the country,to be powerful in developing new customers.
