Cold Drawn Seamless Steel Pipe Precision Carbon Steel Tube DIN2391 EN10305 ST37 ST52

China Cold Drawn Seamless Steel Pipe Precision Carbon Steel Tube DIN2391 EN10305 ST37 ST52 supplier
Cold Drawn Seamless Steel Pipe Precision Carbon Steel Tube DIN2391 EN10305 ST37 ST52 supplier Cold Drawn Seamless Steel Pipe Precision Carbon Steel Tube DIN2391 EN10305 ST37 ST52 supplier

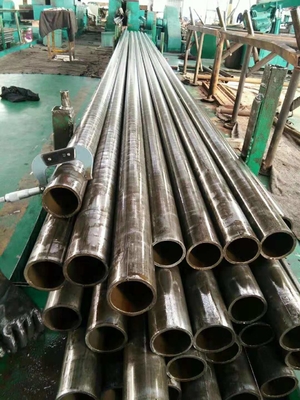

Large Image :  Cold Drawn Seamless Steel Pipe Precision Carbon Steel Tube DIN2391 EN10305 ST37 ST52

Product Details:

Place of Origin: CHINA
Brand Name: MITTEL
Certification: SGS
Model Number: ST37 ST52

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton
Price: 850 USD/Ton
Packaging Details: Wodden Box
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 7 Days
Contact Now
Detailed Product Description
OD: 6-159MM Thickness: 0.5-10mm
Surface: Bright Length: 6m
Type: Cold Drawn



Cold Drawn Seamless Steel Pipe Precision Carbon Steel Tube DIN2391 EN10305 ST37 ST52



DIN2391 EN10305 ST37 ST52 Seamless Precision Carbon Steel Tube

1,Standards: ASTM / DIN / EN / GOST / SAE / JIS etc

2,Material Grade: Carbon Steel / Alloy Steel or According to requirements.

Size: (mm)

OD: 19.05 mm

WT: 2.11 mm;

Length: max 25m





Description:



Product name: Heat Exchanger Tubes / Cold Drawn / ERW

Standard executived: ASTM / DIN / EN / GOST / SAE / JIS etc

(ASTM A179,ASTM A199, ASTM A200, ASTM A213, DIN 17175,JIS G3462,JIS G3458 )

Outside diameter:19.05mm

Wall Thickness:2.11mm

Length:6m-25m,also can be manufactured according to customers' requirements

Type:Cold Drawn or ERW

Ends:Plain ends or bevel ends

Delivery Conditions: BK,BKS,BKW,NBK,GBK( As drawn, quenched and tempered, normalized, annealed, stress-relieved)As different requirements,It including pickling,etc. AS per Standard.

Coating for protection:black painting,anti-rust oiled or varnish,also can be required according to customers' requirements





Factory test and other terms:



1.Hydrostatic or Nondestructive Electric Test

2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking

6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing

service.





Main Specification Details:



Name Cold drawn or ERW straight steel tubes and pipes for heat exchanger
Standard

Meet or exceed ASTM,ASME,API,ANSI and DIN standards.

ASTM A106/A179/A192/A210/A213/A519 etc.

DIN2391/DIN17175/EN10305 etc

GB8162/GB8163/GB3639 etc

Material

A179,St35,St45,St52,E215,E235,E355,10,20,

A106,A179,A192,A210,T11,T22,T12 etc

Size

Outer diameter:6-114.0mm

Wall thickness:0.5-15mm

Length:max 2400mm,generally 6000mm

Application

Cold drawn or cold rolled precision seamless steel tubes for hydraulic pressure and

pneumatic services.


For Auto use,machinery use,oil cylinder tube,motorcycle shock reducer use,auto shock

reducer inner cylinder,etc.



Seamless steel pipes for low and medium pressure boiler, high pressure boiler,

ship-building,Liquid service, petroleum cracking, chemical fertilizer equipment,

Drawing-oil-equipment and structure purposes.

Business scope

DIN series cold drawn precision seamless steel tubes

DIN series cold rolled precision seamless steel tubes

Related coated and galvanized steel tubes

Rustproof phosphyorylated tube

Main characteric

No Oxidation Layer on the outer and inner walls;

No Leakage under high pressure;

No Crake under flating and flattening;

No distortion after cold bending;

High precision high cleanness;

Excellent brightness

cold drawn and hot finished

Superior performance for high pressure and temperature uses

Black finish and hot dip galvanized

Excellent corrosion resistance





Delivery condition:



Designation Symbol Description
Cold finished (hard) BK Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation.
Cold finished (soft) BKW The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding).
Cold finished and stress-relieved BKS Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.
Annealed GBK The last cold forming process is followed by annealing in a controlled atmosphere.
Normalized NBK The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.





All other tubes applicable for boiler and heat exchanger tube we can produce ,



Chinese Standard Steel Grade/ No. American Standard Steel Grade/ No.
GB5310

20G,15MoG,12CrMoG,

12Cr2MoG,15CrMoG,

12Cr1MoVG,

ASTM A106 GR. A,B,C
GB9948 10,20,12CrMo,15CMo ASTM A53 GR.A,B
GB3087 10,20 ASTM A192
    ASTM A179
    ASTM A210 A-1,C
    ASTM A333 GR.1,GR3,GR6
    ASTM A334 GR.1,GR3,GR6
    ASTM A209 T1, Ta, Tb
German standard Steel Grade/ No. Japanese standard Steel Grade/ No.
DIN17175 ST35.8, ST45.8 JIS G3454 STPG370,STPG410
DIN1629 ST37.0, ST44.0, ST52.0 JIS G3461 STB340, STB410, STB440
British Standard Steel Grade/ No. European standard Steel Grade/ No.
BS3059-Ⅰ 320 EN10216-1 P195TR1/TR2,P235TR1/TR2,
P265TR1/TR2
BS3059-ⅡS1/S2; TC1/TC2 360,440, EN10216-2
TC1,TC2
195GH,P235GH,
P265GH,





Applications:



1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.

2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field

3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;

4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc

5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc





Competitive Advantage:



Asia Leading Steel Pipe & Tube Manufacturer with more than 250,000Tons/Year, >60% shipped to more than 35 Countries.We aims at manufacturing quality pipes & tubes with reasonable and competitive price, good quality for our global customers.





DIN 2391/EN 10305-4
Cold drawn or cold rolled precision seamless steel tubes
Inside precision seamless tubes for hydraulic pressure and pneumatic services
Application: for Auto use;for machinery use;Oil cylinder tube;Motorcycle shock reducer steel tubes;Auto shock reducer inner cylinder
Size(mm): O.D.:4.0-76 W.T.:0.5-6





Grade Chemical Composition(%):
C max Si max Mn P max S max
St 35 0.17 0.35 ≥0.40 0.025 0.025
St 45 0.21 0.35 ≥0.40 0.025 0.025
St 52 0.22 0.55 ≤1.60 0.025 0.025

Steel grade Chemical Composition(%):
Steel name Steel number C max Si max Mn P max S max Al min
E215 1.0212 0.10 0.05 0.70 0.025 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025 -
E355 1.0580 0.22 0.55 1.60 0.025 0.025 -



Mechanical Properties(Mpa):




Steel grade
BK BKW BKS GBK NBK
RmN/mm
min
min RmN/mm
min
min N/mm
min
ReH
N/mm
min
min N/mm
min
min N/mm
min
ReH
N/mm
min
min
St35 480 6 420 10 420 315 14 315 25 340-470 235 25
St45 580 5 520 8 520 375 12 390 21 440-570 235 21
St52 640 4 580 7 580 420 10 490 22 490-630 355 22



Steel grade Minimum values for the delivery condition
Steel name Steel number + C + LC + SR + A + N
Rm Mpa A% Rm Mpa A% Rm Mpa ReH Mpa A% ReH Mpa A% Rm Mpa ReH Mpa A%
E215 1.0212 430 8 380 12 380 280 16 280 30 290-430 215 30
E235 1.0308 480 6 420 10 420 350 16 315 25 340-480 235 25
E355 1.0580 640 4 580 7 580 450 10 450 22 490-630 355 22

The tubes of this standard are exported to Turkey,Germany,France,Uk etc Since 2005
