Product Details:
|
| Width: | 1000-2000mm | Length: | 2000-6000mm |
|---|---|---|---|
| Thickness: | 0.3-50mm | Surface: | 2B,NO.1,BA,8K .etc |
| Quality: | Prime Grade | Technique: | Hot Rolled Cold Rolled |
| Product: | BSEN 1.4404 316L Stainless Steel Sheets Plates Width1000-2000mm Or Customized Size | Material: | 1.4404 316L |
| Highlight: | stainless steel sheets and plates,stainless steel plate thickness |
||
Product Introduction
| Product |

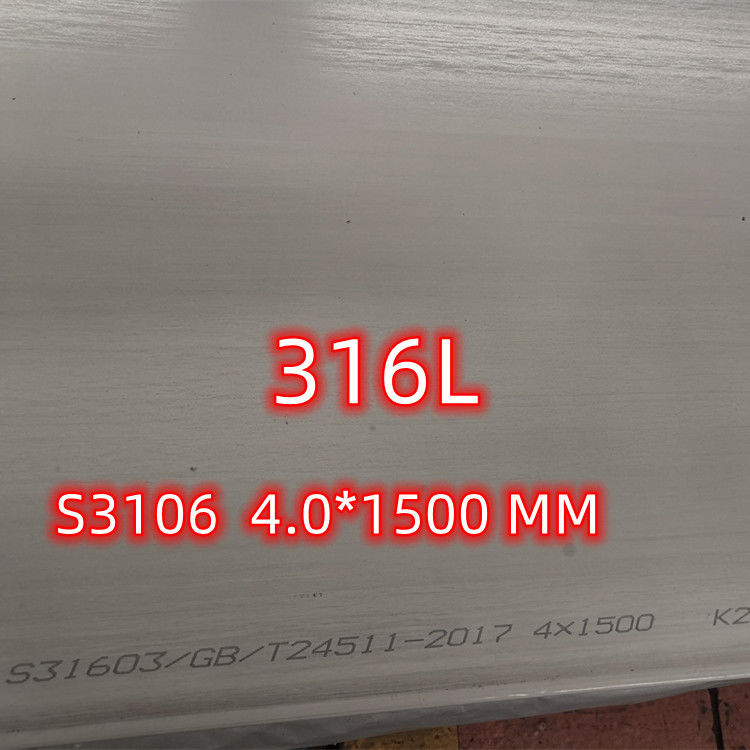

1.4404 316L Stainless Steel Sheets Plates Width1000-2000mm or Customized Size
|
| Grade | 201 304 304L 316 316L 321 310S 309S 202 430 409L 444 410s 904L 2205 2507 .etc |
| Standard | ASTM,AISI, ASME ,SUS,JIS,EN,DIN,BS,GB .etc |
| Certification | ISO,SGS, BV |
| Brand | JISCO, LISCO, TISCO ,BAO STEEL POSCO/ ZPSS .etc |
|
SIZE
|
thickness:0.3mm-50mm
|
|
width:1000mm 1219mm 1250mm 1500mm 1800mm 2000mm or as your requirement
|
|
|
Length: 2000mm 2438mm 2500mm 3000mm 3048mm 5800mm 6000mm or as your requirement
|
|
| Surface Finish |
NO.1,NO.2D,2B, BA, 6K,SB,8K (Mirror), HL, No.4, Sand Blasting ,Embossed, Etching. etc. More than 80 different pattern for your choice. |
| Color |
Golden, rose gold, Titanium golden coating, Champagne gold, Brown, Bronze, Black, Sapphire blue, Purple, Gray, Silver, Coffee, Champagne .etc. |
| Technique | Cold rolled /Hot rolled |
| Price Terms | Ex-Work , FOB , CIF , CNF , CFR .etc |
| Payment terms | L/C / TT / West Union or as required |
| Package |
Standard export packing (wooden boxes package, pvc package, and other package) or as per customer’s request. |
|
Port of Loading |
Shanghai Port |
Chemical Component (wt%):
| Specification | C | Si | Mn | P | S | Cr | Ni | Mo |
| SUS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0~18.0 | 10.0-14.0 | 2~3 |
| SUS316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0~18.0 | 12.0-15.0 | 2~3 |
Mechanical Capacity:
| Specification | YS(Mpa) | TS(Mpa) | EL(%) | Hv |
| TYPE:SUS316 | ≥205 | ≥520 | ≥40 | ≤200 |
| TYPE:SUS316L | ≥175 | ≥480 | ≥40 | ≤200 |
Surface Finish
| Surface Finish | Definition | Application |
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
|
BA/8K mirror |
Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| Hairline | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe. |
Manufacturing Process of Stainless Steel Sheet/Plate
Raw materials are sending to hot rolling units for rolling into different sizes.
→Hot rolled material is annealing in cold rolled annealing furnace and pickling in acid.
→All mill rolls are grinded on precision grinding machine with proper chamfering after first shift operation.
→All sheets are pickled in different tanks and dried on brush roll machine before dispatched.
→These sheets are again annealing and are sent to straighten machine for straightening.
→Inspections are done at various stages. Keep proper control overall internal process via rolling, annealing and pickling by our experienced staff.
Cold rolled,annealing,pickled,slited,straightened,for stainless steel plate raw material
Stainless steel maintenance:
(1) Regular cleaning and maintenance
(2) Pay attention to prevent the occurrence of the phenomenon of surface scratches
(3) Use soap, weak detergent or warm water to remove surface dust, dirt
(4) In addition to the surface of the binder with alcohol or an organic solvent
(5) Use neutral detergent or ammonia solution in addition to surface oil
(6) With 10% nitric acid or abrasive detergent in addition to the surface of the embroider caused by the dirt.
Application
Stainless steels of various kinds are used in thousands of applications. The following gives a flavour of the full range:
1.Domestic – cutlery, sinks, saucepans, washing machine drums, microwave oven liners, razor blades
2.Transport – exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers,
refuse vehicles
3.Oil and Gas – platform accommodation, cable trays, subsea pipelines.
4.Medical – Surgical instruments, surgical implants, MRI scanners.
5.Food and Drink – Catering equipment, brewing, distilling, food processing.
6.Water – Water and sewage treatment, water tubing, hot water tanks.
7.General – springs, fasteners (bolts, nuts and washers), wire.
8.Chemical/Pharmaceutical – pressure vessels, process piping.
9.Architectural/Civil Engineering – cladding, handrails, door and window fittings, street furniture, structural sections,reinforcement bar, lighting columns, lintels, masonry supports
Architectural/Civil Engineering - cladding, handrails, door and window fittings, street furniture, structural sections,
reinforcement bar, lighting columns, lintels, masonry supports
Transport - exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers, refuse vehicles
Chemical/Pharmaceutical-pressure vessels, process piping.
Oil and Gas- platform accommodation, cable trays, subsea pipelines.
Medical - Surgical instruments, surgical implants, MRI scanners.
Food and Drink - Catering equipment, brewing, distilling, food processing.
Water - Water and sewage treatment, water tubing, hot water tanks.
General - springs, fasteners (bolts, nuts and washers), wire.
