Product Details:
|
Length: | 6-11meter | Type: | Seamless Pipe |
---|---|---|---|
OD: | 10-325mm | Thickness: | SCH10 - SCH160 |
Company Type: | Factory And Trading | Grade: | 304,304L,310S,316L,321,904L,S32760.254SMO Etc |
Highlight: | seamless stainless steel tube,ss seamless pipes |
Item | Seamless Steel Industrial Pipe |
Standard | ASTM,AISI,ANSI,DIN,JIS,EN,GB,Non-standard |
Steel grade | Austenitic Stainless Steel : 304,304L,316L,310S,316Ti,316LN,317L,321,347H,321,309S,314 Duplex Steel: 904L,UNS S32205, UNS S32750, UNS S32760, S30815(253MA),UNS32550,UNS S31254 Nickel Alloy Steel:625 (UNS N06625),600 (UNS N06600),601 (UNS N06601),718 (UNS N07718),Alloy 800/800H/800HT(UNS N08800/N08810/N08811),825 (UNS N08825),201 (UNS N02201),ect Hastelloy Steel: C-276/HASTELLOY C276/N10276/2.4819/Inconel 276,Hastelly B-2/UNS N10665/2.4617 ,Hastelloy B-3/Alloy B-3/ UNS N10675,Hastelloy C22 /UNS N06022 Monel Steel: Alloy 400/UNS N04400/Monel 400. |
Surface/Interior | Polishing, Annealing, Pickling, Bright, Hairline, Mirror, Matte |
Outer Diameter | 6~914mm/(1/8"~36") |
Thickness | 1~45mm/Sch10s~Sch XXS |
Length | 1500mm~12000mm,as customized. |
Technique | Hot-rolled/Cold-rolled/Cold drawing |
Price terms | EXW/FOB/CIF/CRF |
Stainless steel grade 254 SMO is a very high end austenitic stainless steel. It is designed with a combination of impact toughness resistance to chloride stress corrosion cracking, and pitting and crevice corrosion with strength that is twice that of the stainless steel 300 series.
For certain applications, grade 254 SMO has been reported to be a cost-effective substitute for high nickel and titanium alloys. It is known to possess excellent workability as well.
The following sections will discuss in detail about stainless steel grade 254 SMO.
The chemical composition of stainless steel grade 254 SMO™ is outlined in the following table.
Element | Content (%) |
---|---|
Iron, Fe | 55.69 |
Chromium, Cr | 20 |
Nickel, Ni | 18 |
Molybdenum, Mo | 6.1 |
Nitrogen, N | 0.20 |
Carbon, C | 0.010 |
The physical properties of stainless steel grade 254 SMO™ are tabulated below.
Properties | Metric | Imperial |
---|---|---|
Density | 8 g/cm3 | 0.289 lb/in3 |
The following table shows mechanical properties of stainless steel grade 254 SMO™.
Properties | Metric | Imperial |
---|---|---|
Tensile strength | 680 MPa | 98600 psi |
Yield strength | 300 MPa | 43500 psi |
Modulus of elasticity | 195 GPa | 28300 ksi |
Shear modulus | 75 GPa | 10900 ksi |
Poisson’s ratio | 0.30 | 0.30 |
Elongation at break | 50 % | 50 % |
Hardness, Brinell | 210 | 210 |
The thermal properties of stainless steel grade 254 SMO™ are tabulated below.
Properties | Metric | Imperial |
---|---|---|
Thermal expansion co-efficient (@20-100°C/68-212°F) | 16.5 µm/m°C | 9.17 µin/in°F |
Thermal conductivity | 14 W/mK | 97.2 BTU in/hr.ft².°F |
Quality Control: | ||||||||
ISO 9001:2000 by Lloyd's | ||||||||
Pressure Equipment Directive 97/23/EC and AD 2000-Merkblatt W0 | ||||||||
Classification Society Accreditation: | ||||||||
BV, DNV, LR, GL, ABS, NK, KR, CCS | ||||||||
Main Material: | ||||||||
300 series.: 304/L, 304H, 316L,316Ti, 317L, 309S/309H, 310S, 321/H, 347H ect. | ||||||||
Duplex Material: S31803, S32205, S32750, S32760 | ||||||||
Special Material: N08904904L, MONEL 400, INCOLOY 800/H/HT, INCOLOY 600,625, Alloy 254 SMOetc. | ||||||||
Production Size: | ||||||||
1/8''-24'' 6mm-610mm | ||||||||
Production Standard: | ||||||||
ASTM: A213, A269, A312, A511, A789, A790, B163, B165 | ||||||||
GOST: 9940, 9941 | ||||||||
JIS:: G3459, G3463 | ||||||||
DIN: 17456, 17458 | ||||||||
EN 10216-5 |

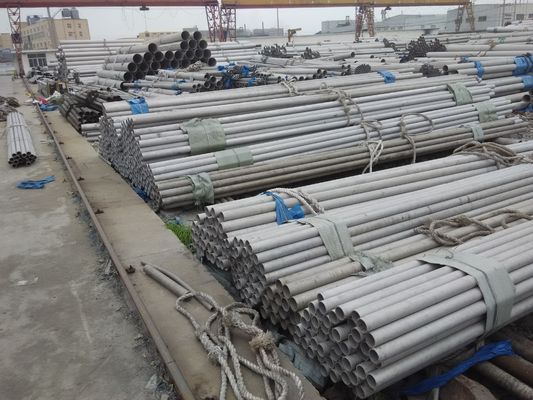

Photos of our products
Q1:What product information must I provide before making a purchase?
Please provide the Grade, Outside Diameter, Thickness, and surfacetreatment requirements, as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai and Ningbo ports.
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
