Product Details:
|
| Service: | Slit Cutting | Technique: | Hot Dip Galvanized |
|---|---|---|---|
| Shape: | Coil,plate,sheet | Usage: | Construction |
| Az Zinc Coating: | 30-275g/m2 | Stock: | Stock |
| Colour: | Ral Colour | Standard: | ASTM/JIS/EN/DIN/GB |
| Steel Grade: | SGCC/CGCC/DX51D | Yield Strength: | 195-420Mpa |
| Loading Port: | Shanghai, China | Heat Method: | Cold Rolled |
| Grade: | DX51D/SGCC/SGCH/SPCC | Coil Inner Diameter: | 508mm Or 610mm |
| Spangle Type: | Zero Spangle |
|
Technical Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 JIS G3302,ASTM A653M,EN10327,DIN17162,EN 10142,EN10292,
|
|
Steel Grade
|
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement |
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Thickness
|
0.12-6.00mm,or customer's requirement
|
|
Width
|
600mm-1500mm, according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) galvanized,PVC,black and color painting,transparent oil,anti rust oil
|
|
Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Coil Weight
|
3-20 metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement |
|
Export market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
|
A653/A653M – Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron AlloyCoated (Galvannealed) by the Hot-Dip Process
This specification covers steel sheets, zinc-coated (galvanized), or zinc-iron alloy-coated (galvannealed) by the hot-dip process in coils and cut lengths.
ASTM refers to the American Society for Testing and Materials Standards.
A-653 is one of its branch standard numbers.
ASTM A653 is the standard specification for hot-dipped galvanized iron alloy or galvanized steel sheets.

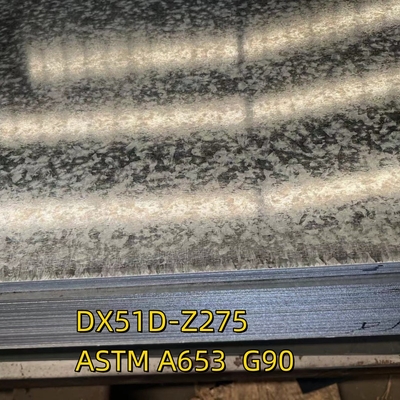

ASTM A653 G90 refers to the ASTM A653 specification, the galvanized layer code G90 represents the meaning that the sum of the two-sided zinc coating is 0.9 oz/ft2 (the average minimum value of three points on both sides) or 0.8 oz/ft2 (the smallest single point on both sides) value).
ASTM A653 G90 refers to the galvanized steel sheet, the material grade is G90 (according to ASTM A653 standard), thickness 3.2 mm.
The American standard is special. There are both metric weight units (g/m2) such as Z90 and British weight units (oz/ft2) such as G90. The weight difference between the two is about 3 times.
Thin-coated hot-dip galvanized materials have excellent welding ability and processing performance. It can be used from general use to deep drawing and can be selected according to the purpose.
Thick galvanized hot-dip galvanized materials have excellent corrosion resistance. Various applications can be used by selecting spangles and post-processing functions.
Hot-dip alloy steel not only has excellent corrosion resistance but also has good adhesion and ductility of the coating, so it can exert excellent processing performance. The advantage is that it has a beautiful appearance and can be used for applications where the surface is not painted.
ASTMA653 is an American standard, which is equivalent to the Japanese JIS G 3302, Europe EN 10346. Hot-dip galvanized steel sheet with a coating thickness of 0.3 oz/square inch. The material has general specifications.
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, we have our own factory. And we are the China leading galvanized steel coil, galvalume steel coil,PPGI/PPGL etc. We promise that we are exactly the supplier you have been looking for.
Q:Can we visit your factory ?
A:Yes, of course, we welcome you to visit our factory to check our production lines and know more about our capacity, quality.
Q: Do you have quality control system?
A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
Q: Can you arrange the shipment for us?
A: Yes, we have designated seafreight and railway freight Forwarders with decades of experiences and we can get the best price with earlist vessel and professional services.
Q: How long is your delivery time?
A: Generally it is 7-14 days if we have the exact goods in our stock. If not, it will take around 25-35 days to get goods ready for delivery.
Q: How do you keep long-term business and good relationship ?
A: 1.We keep supplying good quality products and competitive prices to ensure our customers' benefit.
2. We think highly of every single customers of us and value the relationship, we take it not only as business partner, but also as true friends. Will keep the good services and put customers' benefit as high priority.
