ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm

ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm
ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm

Large Image :  ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm

Product Details:
Place of Origin: China(mainland)
Brand Name: Mittel
Certification: SGS,BV
Model Number: ASTM A653 CS Type B
Payment & Shipping Terms:
Minimum Order Quantity: 200KGS
Price: 0.75 USD/KG
Packaging Details: standard export seaworthy packing or as required
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15000Tons

ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm

Description
Company Type: Storage And Trading Processing Technology: Cold Rolled
Grade: ASTM A653 CS Type B Surface: Hot Dipped
Standard: ASTM AISI GB DIN JIS EN Thickness: 0.5 - 3.0mm
Width: 1000mm - 1500mm Length: 2000mm 2438mm Or As Required
High Light:

hot dipped galvanized steel coils

,

galvanized steel sheet in coil

Product name Galvanized Steel Coil
Material CGCC, DX51D,Q195,Q235
Grade SGCC,DX51D+Z
Zinc Coating 40-120g/m2
Thickness 0.3-2.0 mm
Width 600-1250 mm

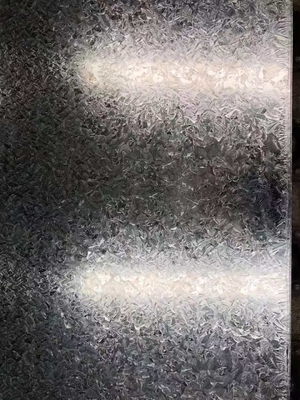

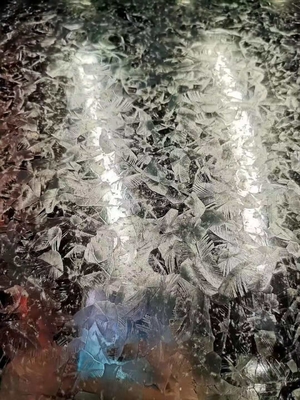

Surface Structure Mini/Big Spangle
Surface Treatment Anti-Finger printing ,Chromated, oiled/ non-oiled
Package standard export package (Detailed picture is as follows)
Hardness soft (normal), hard, full hard(G300-G550)
HS code 721049
Country of origin China
Business type Supplier and manufacturer



Hot Dip Galvanized coil produced by JIN LAI,is coated with zinc using a continuous and controlled process. The tight metallurgical bond between the steel and coating takes place in a continuous galvanizing line. This process results in a material with the strength and formability of steel and with the corrosion protection provided by zinc. The zinc coating protects the base metal from external corrosive elements in two main ways, by acting as (1) a physical barrier and (2) a sacrificial anode.

Tolerance on Nominal Thickness for galvanized steel

Thickness (mm) ASTM ½ ASTM
0.18 – 0.40 ± 0.040 ± 0.020
0.401 – 1.00 ± 0.050 ± 0.025
1.01 – 1.50 ± 0.065 ± 0.033
1.51 – 2.00 ± 0.075 ± 0.038

Note: Restricted gauge ranges and customized thickness tolerances can be offered on request.



Specifications of Glvanized Steel Coils / Sheet



Size Zinc coat Material
0.25*1000*C 80 DX51D+Z
0.25*1000*C 80 DX51D+Z
0.3*1000*C 80 DX51D+Z
0.35*1000*C 80 DX51D+Z
0.4*1000*C 80 DX51D+Z
0.5*1000*C 80 S280GD+Z
0.5*1000*C 80 DX51D+Z
0.58*1000*C 80 S350GD+Z
0.6*1000*C 80 DX51D+Z
0.7*1000*C 80 DX51D+Z
0.75*1000*C 80 DX51D+Z
0.8*1000*C 80 DX51D+Z
0.8*1000*C 80 DX53D+Z
0.85*1000*C 80 DX51D+Z
0.9*1000*C 80 DX51D+Z
0.98*1000*C 80 DX51D+Z
0.95*1000*C 80 DX51D+Z
1.0*1000*C 80 DX51D+Z
1.1*1000*C 80 DX51D+Z
1.2*1000*C 80 DX51D+Z
1.2*1050*C 150 CSB
1.4*1000*C 80 DX51D+Z
Size Zinc coat Material
1.5*1000*C 80 DX51D+Z
1.55*1000*C 180 S280GD+Z
1.55*1000*C 180 S350GD+Z
1.6*1000*C 80 DX51D+Z
1.8*1000*C 80 DX51D+Z
1.9*1000*C 80 DX51D+Z
1.95*1000*C 180 S350GD
1.98*1000*C 80 DX51D+Z
1.95*1000*C 180 S320GD+Z
1.95*1000*C 180 S280GD+Z
1.95*1000*C 275 S350GD+Z
2.0*1000*C 80 DX51D+Z
Size Zinc coat Material
0.36*1250*C 80
0.4*1250*C 80 DX51D+Z
0.42*1250*C 80 DX51D+Z
0.45*1250*C 225 S280GD+Z
0.47*1250*C 225 S280GD+Z
0.5*1250*C 80 SGCC
0.55*1250*C 180 S280GD+Z
0.55*1250*C 225 S280GD+Z
0.6*1250*C 80 DX51D+Z
0.65*1250*C 180 DX51D+Z
0.7*1250*C 80 DX51D+Z
0.7*1250*C 80 SGCC
0.75*1250*C 80 DX51D+Z
0.8*1250*C 80 DX51D+Z
0.9*1250*C 80 DX51D+Z
0.95*1250*C 80 DX51D+Z
Size Zinc coat Material
1.0*1250*C 80 DX51D+Z
1.15*1250*C 80 DX51D+Z
1.1*1250*C 80 DX51D+Z
1.2*1250*C 80 DX51D+Z
1.35*1250*C 80 DX51D+Z
1.4*1250*C 80 DX51D+Z
1.5*1250*C 80 DX51D+Z
1.55*1250*C 80 DX51D+Z
1.6*1250*C 120 SGCC
1.6*1250*C 80 DX51D+Z
1.8*1250*C 80 DX51D+Z



ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm 0

ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm 1ASTM A653 CS Type B Galvanized Steel Coil Sheet Astm A653 Hot Dipped Galvanized Steel Coil 05mm 2
