Product Details:
|
| Width: | 10mm-1250mm | Standard: | ASTM,AISI |
|---|---|---|---|
| Length: | Coil | Technique: | Cold Rolled |
| Type: | Steel Coil | Special Use: | High-strength Steel Plate |

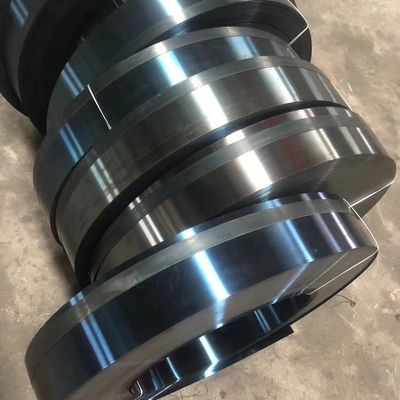

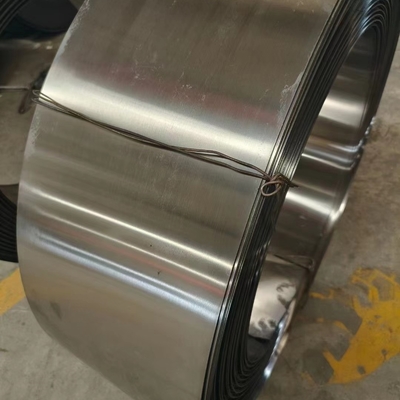

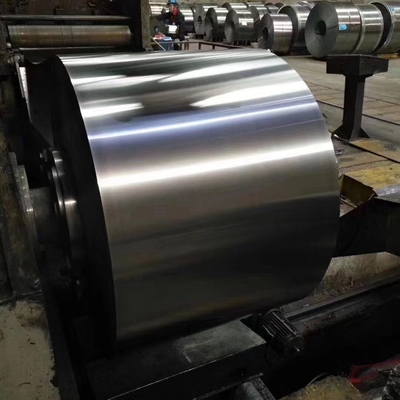

| High Light: | High Carbon Steel Tape Colded Rolled,DIN 1075 Carbon Steel Tape,CK75 Spring Steel Strip |
||
|
Standard
|
ASTM,AISI,SUS,JIS,EN,DIN,BS,GB,etc.
|
|||
|
Material
|
65Mn SAE 1065 1070 1075 1080 Ck67 Ck75 C75s
|
|||
|
Thickness
|
Hot Rolled Thickness:2.75mm-100mmCold Rolled Thickness:0.2mm-3mm
As Your Request |
|||
|
Width
|
45mm-2200mm, As Your Request
|
|||
|
Technique
|
Hot rolled / cold rolled
|
|||
|
Surface
|
Bare,Black,Oiled,Shot Blasted,Spray Paint,Coated,Galvanized,or as Your Request
|
|||
|
Coil ID
|
508-610mm or as per your request
|
|||
|
Coil Weight
|
3~5 Tons or as per your request
|
|||
|
Application
|
Construction, machinery manufacturing, container manufacturing, shipbuilding, bridges, etc.
|
|||
|
Packing
|
Standard Export packing(Plastic film in the first layer,second layer is Kraft paper.
|
|||
Standard and Grade
| Steel Grade | Standard | Typical Steel Grade | Thickness (mm) |
Width (mm) |
Coil Weight (mt) |
| Carbon Structure Steel | GB912 GB/T3274 JIS G3101 ASTM A 36/A 36M-08 |
Q195, Q215, Q235, SS330, SS400, A36 65Mn SAE 1065 1070 1075 1080 Ck67 Ck75 C75s |
1.2-25.0 | 700-2150 | 10-24 |
| High Quality Carbon Structure Steel | Q/BB131-2010 | 08A1, 20, 25, 30, 35,40, 45 | 1.2-25.0 | 700-2150 | 10-24 |
| Low Carbon Steel | JIS G 3113:2010 ASTM A 29/A 29M-04 DIN EN 10111 |
SPHC, SPHD, SPHE, SAE1006, SAE1008, SAE1010, BGIF, DD11-DD14 | 1.2-25.0 | 700-2150 | 10-24 |
| Low Alloy Steel | GB/T 1591-2008 | Q345, Q345A, Q345B, Q345C, Q345D, , Q390, Q420, Q460 | 1.2-25.0 | 700-2150 | 10-24 |
| Wheel of Automobile | BX55-2011 BX347-2009 BX443-2011 |
BG330CL, BG380CL, BG420CL, BG490CL, BG590CL, SW300, SW400 | 1.2-25.0 | 700-2150 | 10-24 |
| Welding Structure Steel | BX312-2009 | SM400A, SM400B, SM400C, SM490A, SM490B, SM490YA, SM490YB | 1.2-25.0 | 700-2150 | 10-24 |
| Chain/Bundle Steel | Q/BB134-2005 BX83-2011 |
GL1, GL2, GL3, GL4, KD3 | 1.2-25.0 | 700-2150 | 10-24 |
| Hull Structure Steel | BX124-2010 | CCSA, CCSB | 1.2-25.0 | 700-2150 | 10-24 |
| Anti-corrosion Steel | JIS G 3125-2004 BX84-2009 |
SPA-H, 09CuPTiRE-A, 09CuPTiRE-B, 09CuPCrNi, 09CuPCrNi-A, Q450NOR1 | 1.2-25.0 | 700-2150 | 10-24 |
| Petroleum Pipeline Steel | GB/T 9711-2011 Q/BB122-2010 |
S245(B), S290(X42), S320(X46), S360(X52), S390(X56), S415(X60), S450(X65), X485(X70), S555(X80), L245, L290(MB)(NB), L320, L360(MB)(NB), L390, L415(MB), L450(MB), L485(MB), J55, N80 | 1.2-25.0 | 700-2150 | 10-24 |
| Gas Cylinder Steel | GB 6653-2008 JIS G3116:2005 |
HP295, HP325, HP345, SG255, SG295, SG325 | 1.2-25.0 | 700-2150 | 10-24 |
| Automobile Structure Steel | JIS G 3113-2006 EN 10025-2004 DIN17102 BX55-2011 BX347-2009 BX186-2009 BX345-2009 |
SAPH310, SAPH370, SAPH400, SAPH440, QStE340TM, QSte380TM, QSte420TM, QStE460TM, QStE500TM, BG330CL, BG380CL, BG420CL, BG490CL, BG590CL,SW300, SW400, SW500, BG440L, , BG510L, BG355L, BG550L, BG610L, BG440QZR, BG480QZR, BG520QZR |
2.0-16.0 | 700-2150 | 10-24 |
| Delivery condition : (strip, coil, sheet) |
Grade based on DIN Standard |
High quality heat treating steel strip, coil, sheet supply capacity and condition |
|||
| Hardness<20HRC | Hardness 29-55HRC | ||||
| annealed | hardened and tempered | ||||
| thickness | Width | thickness | Width | ||
| High carbon steel | CK50, CK55, CK60, CK67, CK70, CK75, C75S,C75Cr1,65Mn | 0.15-2.5mm | 8-600mm | 0.15-2.5mm | 8-300mm |
| Alloy spring steel | 50CrV4,51CrV4, 60Si2Mn | 0.20-2.2mm | 8-180mm | 0.20-2.2mm | 8-180mm |
| GRADES COMPARISON FOR SPRING STEEL | ||||||||
| CHINA GB/T |
U.S.A ASTM |
JAPAN JIS |
Germany DIN |
France NF |
Birtain BS |
ISO | Korea KS |
Taiwan CNS |
| 65 | 1065 | SUP2 S65-CSP | 60E | XC65 | 060A67 | C60E4 | - | - |
| 70 | 1070 | S70C-CSP | 60E | XC70 | 070A72 | 8458-3 DAB | - | - |
| 85 | 1084 | SUPS SK5-CSP | C85E | XC85 | 060A86 | 8458-2 DH | SUP1 | SUP3 |
| 65Mn | 1566 | S60C-CSP | CK67 | - | 080A67 | C60E4 | - | - |
| 55Si2Mn | 9255 | SUP6 SUP7 |
55Si7 | 55Si7 | 251H60 | 55SiCr7 | - | - |
| 55SiMnVB | - | - | - | - | ||||
| 60Si2Mn | 9260 | SUP6 SUP7 |
65Si7 | 60Si7 | 251H60 | 61SiCr7 | SPS3 | SUP6 |
| 60Si2MnA | 9260 | SUP6 SUP7 |
60SiMn5 | 55Cr7 | 251H6 | 61SiCr7 | SPS3 | SUP6 |
| 60Si2CrA | - | - | 60SiCr7 | 60SiCr7 | 685H57 | 55SiCr6-3 | - | - |
| 60Si2CrVA | - | - | - | 60SiCr7 | - | 55SiCr6-3 | - | - |
| 55SiCrA | - | - | - | - | ||||
| 55CrMnA | 5155 | SUP9 | 55Cr3 | 55Cr3 | 527A60 | 55Cr3 | SPS5 | SUP9 |
| 60CrMnA | 5160 | SUP9A | 55Cr3 | 55Cr3 | 527A60 | - | SPS5A | SUP9A |
| 60CrMnMoA | 4161 | SUP13 | 51CrMoV4 | 51CrMoV4 | 705H60 | 60CrMo3-3 | SPS9 | SUP13 |
| 50CrVA | 6150 | SUP10 | 51CrV4 | 50CrV4 | 735A51 | 51CrV4 | SPS6 | SUP10 |
| 60CrMnBA | 51B60H | SUP11A | 52MnCr83 | - | - | 60VrB3 | SPS7 | SUP11 |
| 30W4Cr2VA | - | - | - | - | - | - | - | - |
The sheets is packed with PVC film or water-proof kraft in the first layer, the second layer is iron sheet package, then wrapped on the metal pallet or metal square tube with steel strip.
It's is water-proof and sea-worthy, and warmly welcomed by the customers.OEM accepted, besides,the pakage can also be according to your demands.

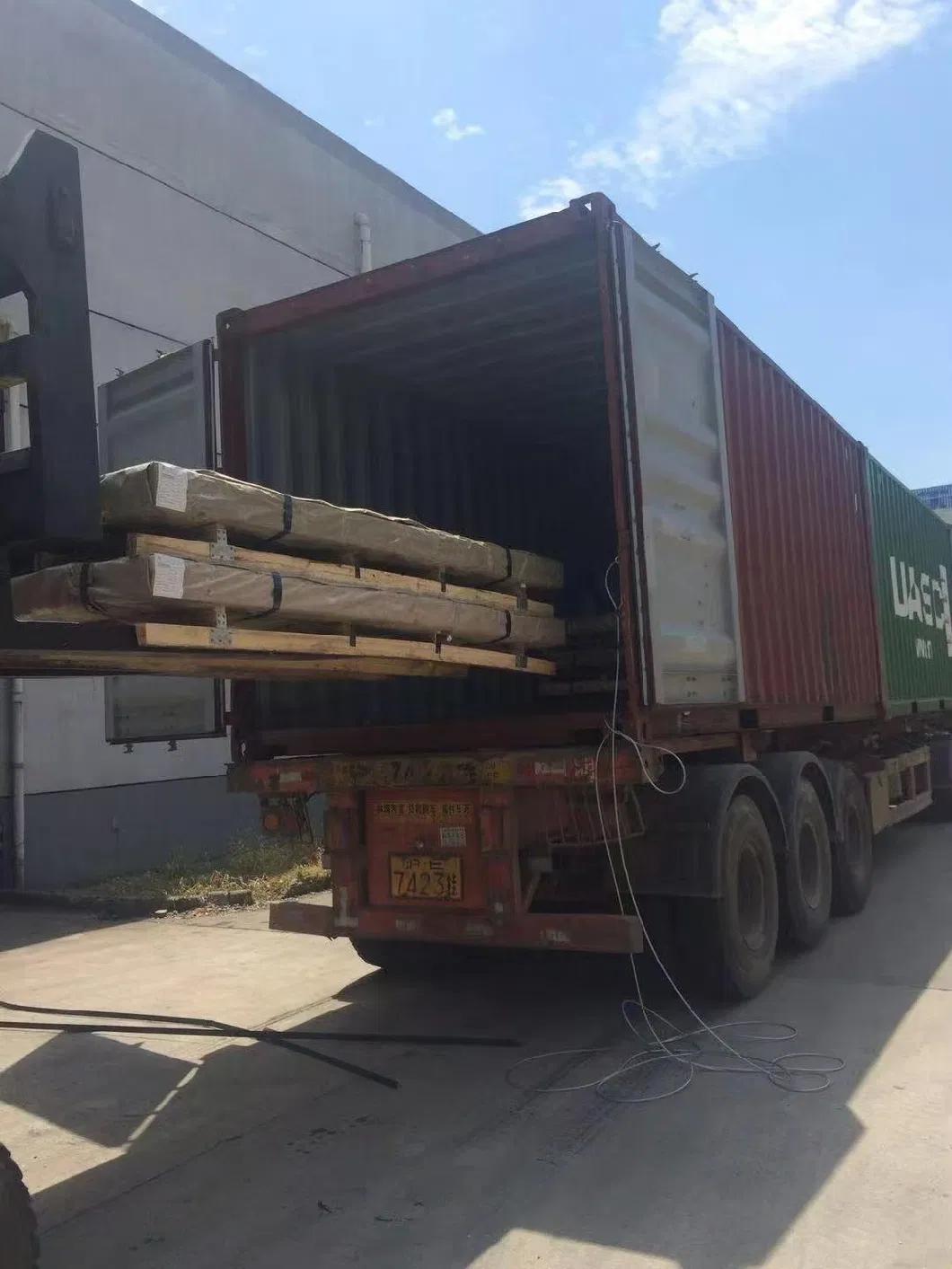

Packing Details:
Export sea worthy package + water proof paper + wooden pallet
Safe loading and fixing Professional teams
1. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time . Or we may talk on line by Trademanager . And you can also find our contact information on contact page .
2. Can I get samples before order ?
Yes, of course. Usually our samples are free . we can produce by your samples or technical drawings . We can build the molds and fixtures .
3. What is your delivery time ?
A. The time of delivery is usually around 1 month(1*40FT as usual) ;
B. We can send out in 2 days , if it has stock .
4. What is your payment terms ?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble .
5. How can you garantee what I got will be good ?
We are factory with 100% pre-delivery inspection which garantee the quality .
6. How do you make our business long-term and good relationship ?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from
