Product Details:
|
| Width: | 600mm-1250mm | Standard: | ASTM |
|---|---|---|---|
| Length: | Coil | Grade: | Q195 DX51D DX53D SGCC |
| Technique: | Cold Rolled | Coil Weight: | 2.5-8ton |
| Type: | Steel Coil | Thickness: | 0.12-4.0 |
| Shape: | Flat.sheet,Rolled | ||
| High Light: | Galvanized Steel Strip Coils Slit Edges,EN 10130 Steel Strip Coils,DC01 Galvanized Steel Coils |
||

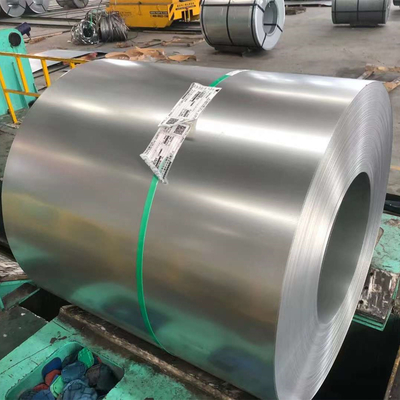

Cold Rolled Steel Strip Grade DC01 According To EN 10130/10131 Slightly Oiled Slit Edges
DC01 steel (1.0330 material) is a European standard cold-rolled quality low-carbon steel flat product for cold forming. In BS and DIN EN 10130 standard, it contains 5 other steel grades: DC03 (1.0347), DC04 (1.0338), DC05 (1.0312), DC06 ( 1.0873) and DC07 (1.0898), the surface quality is divided into 2 types: DC01-A and DC01-B. In addition, this steel is also used under electrogalvanizing conditions. The designation of the steel is DC01+ZE (or 1.0330+ZE), and the standard is EN 10152.
Examples of Steel Names
The tables and lists below give grade DC01 steel data sheet and specification including chemical composition, mechanical properties, welding, etc.
DC01 steel chemical composition is listed in the following table based on ladle analysis.
| Country (Region) | Standard | Chemical Composition (ladle analysis), %, ≤ | Surface quality | Deoxidation | Classification | ||||
| Steel name (Steel number) | C | Mn | P | S | |||||
| European Union | EN 10130 | DC01 (1.0330) | 0.12 | 0,60 | 0,045 | 0,045 | A, B | Manufacturer’s discretion | Non-alloy quality steel |
| EN 10152 | DC01+ZE (1.0330+ZE) | A, B | |||||||
| EN 10139 | DC01-C390, C340, C440, C490, C590, C690 | – | |||||||
Notes:
The table below lists DC01+ZE steel mechanical properties.
| Mechanical properties, Part-1 | |||||||
| Country (Region) | Standard | Steel name (Steel number) | Yield strength (MPa), 0.2 % offset | Tensile strength (MPa) | Elongation, ≥ % | Surface quality | Absence of stretcher strain marks |
| European Union | EN 10130 | DC01 (1.0330) | 140 (assumed) -280 | 270-410 | 28 | A, B | – |
| EN 10152 | DC01+ZE (1.0330+ZE) | 3 months | |||||
Notes:
| Mechanical properties, Part-2 | |||||||||
| Standard | Designation | Delivery condition | Symbol | Yield strength (MPa), 0.2 % offset | Tensile strength (MPa) | Elongation, A80, ≥ % | Elongation, A50, ≥ % | Hardness, HV | Validity of the mechanical properties |
| EN 10139 | DC01 (1.0330) | Annealed | A | – | 270 – 390 | 28 | 30 | ≤ 105 | 3 months |
| Skin passed | LC | ≤ 280 | 270 – 410 | 28 | 30 | ≤ 115 | |||
| Work hardened | C290 | 200 – 380 | 290 – 430 | 18 | 20 | 95-125 | |||
| C340 | ≥ 250 | 340 – 490 | Not required | Not required | 105-155 | ||||
| C390 | ≥ 310 | 390 – 540 | 117-172 | ||||||
| C440 | ≥ 360 | 440 – 590 | 135-185 | ||||||
| C490 | ≥ 420 | 490 – 640 | 155-200 | ||||||
| C590 | ≥ 520 | 590 – 740 | 185-225 | ||||||
| C690 | ≥ 630 | ≥ 690 | ≥ 215 | ||||||
| Coating Designation | Nominal zinc coating values for each surface | Minimum zinc coating values for each surface | ||
| Thickness, µm | Mass, g/m² | Thickness, µm | Mass, g/m² | |
| ZE25/25 | 2,5 | 18 | 1,7 | 12 |
| ZE50/50 | 5,0 | 36 | 4,1 | 29 |
| ZE75/75 | 7,5 | 54 | 6,6 | 47 |
| ZE100/100 | 10,0 | 72 | 9,1 | 65 |
DC01+ZE steel mass shall be calculated based on the density of steel 7.85 kg/dm³ and the density of zinc coating 7.1 kg/dm³.
The main application areas of the DC01 material include: automotive industry, construction industry, electronic equipment and home appliance industry, decorative purposes, food canning, etc.
Material 1.0330, DC01 steel equivalent to ASTM, ISO, European (German DIN, British BSI, France NF), Japanese JIS and Chinese GB standard (for reference).
