Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright

Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright
Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright

Large Image :  Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright

Product Details:
Place of Origin: China
Brand Name: DELTA
Certification: ISO 9001
Model Number: 201 304 316l 410 416 420 431 440 630.etc
Payment & Shipping Terms:
Minimum Order Quantity: 500 kgs
Price: 1600 - 4200 USD/Kg
Packaging Details: packing for export
Delivery Time: 5 - 12 days based on the quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Ton / Month

Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright

Description
Products: Stainless Steel Hexagonal Bar Grade: 201 304 316l 410 416 420 431 440 630.etc
Diameter: S4 - S70 Length: 4 - 6m As Request
Surface: Bright Process: Cold Drawn
Service: Cutting MOQ: 500 Kgs
Loading Port: Shanghai , China Other Shape: Round , Square , Angle , Channel , Flat.etc
High Light:

Bright Stainless Steel Hex Bar

,

416 Stainless Steel Hex Bar

,

Hexagonal Stainless Bar



Diameter 4 - 70mm ASTM A276 Grade 416 Stainless Steel Hexagonal Bar / Stainless Hex Bar



Product Description:



Product Name stainless steel hexagon bar
Standard JIS, AISI, ASTM, GB, DIN
Size Diameter : S6-S65mm or as request
Length Normal long 4M, Or as your request
Surface Bright ,hairline finsh
Technics cold drawn and polishing
Mainly Grade 201 303 304 304L 316L 410 416 420 431 440(A B C) 17-4PH.etc
Application construction field, ships building industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields ,etc.
Packing Export standard or as customers' requirement
Delivery time Within 15 working days, according to customers' quantities
Payment L/C or T/T
MQQ 1 Ton
Quality High Quality.SGS inspection is accepted if needed
Productivity 500 Tons/Month
Attention We will supply you good quality and bottom price and first-class service in china and hope to be your golden supplier



Size of our hexagon stainless steel bar in stock:



201 304 316L stainless steel hexagon bar
Size S6 S8 S10 S11 S12 S13 S14 S15 16 S17 S18 S19 S20 S21 S22 S24 S25 S26 S28 S29 S30 S31 S32 S33 S36 S38 S40 S41 S42 S46 S50 S55 S60 S65



Type 416 stainless is a martensitic steel alloy with added sulphur - this gives the alloy excellent machining properties, infact, they are best of any stainless steel.



Technical Data Sheet

Type 416 is a high chromium martensitic free-machining stainless steel. Type 416 can be hardened by heat treatment to higher strength and hardness level. Type 416 is used for any part that requires considerable machining, golf club heads, axles, gears and pinions, lead screws, valve trim. Type 416 is not recommended for vessels containing gases or liquids under high pressure.

Chemical Composition Limits
Weight% C P Si Mn S Cr Fe Se
Alloy 416 Type 1 0.15 max 0.060 max 1 max 1.25 max 0.40 max 11.50-13.50 bal 0.18-0.35
Alloy 416 Type 2 0.15 max 0.060 max 1 max 2.50 max 0.40 max 11.50-13.50 bal

Typical Mechanical Properties

Material Tempering Temp °F (°C) 0.2 % Yield Strength (Mpa) Tensile Strength (Mpa) % Elongation in 2" % Reduction of Area Hardness Brinell
Alloy 416 1" round bar, hardened 1800 °F (982°C) oil quench, tempered one hour 300 (149) 1034 1344 10 40 390
Alloy 416 1" round bar, hardened 1800 °F (982°C) oil quench, tempered one hour 500 (260) 979 1276 13 45 375
Alloy 416 1" round bar, hardened 1800 °F (982°C) oil quench, tempered one hour 700 (371) 1007 1310 13 48 390
Alloy 416 1" round bar, hardened 1800 °F (982°C) oil quench, tempered one hour 900 (482) 896 1158 14 50 341
Alloy 416 1" round bar, hardened 1800 °F (982°C) oil quench, tempered one hour 1000 (538) 793 1000 15 50 300
Alloy 416 1" round bar, hardened 1800 °F (982°C) oil quench, tempered one hours 1100 (593) 689 862 17 53 262
Alloy 416 1" round bar, hardened 1800 °F (982°C) oil quench, tempered one hours 1200 (650) 586 758 18 55 225

Availability
Alloy 416 is available in Bar (Hexagon, Round, Square, Flat), Billet, Wire, Rod. For all stock availability contact Sales.




NON-GALLING CAPABILITIES

The added sulphur also improves non-galling characteristics. However, this performance comes at a cost. Corrosion resistance is limited, as is formability and weldability is poor. Corrosion resistance is at its optimum performance if the alloy is hardened and tempered. Because of their high machinability and low cost of the alloy, Type 416 steels are available in highly tempered, hardened or unhardened forms.




PERFORMANCE

Type 416 stainless steel has the best machining capabilities of any stainless steel, thanks to the introduction of sulphur as a core element. However, such performance is negated in terms of reduced corrosion resistance, formability and weldability.




TYPICAL APPLICATIONS

Commercial applications for this engineering material include:

  • Automotive components
  • General engineering
  • Washing machine parts
  • Motor shafts
  • Gears
  • Valves & pumps

Service:



Cutting our bars into any length. Cutting side is smooth without burr.





Products Show

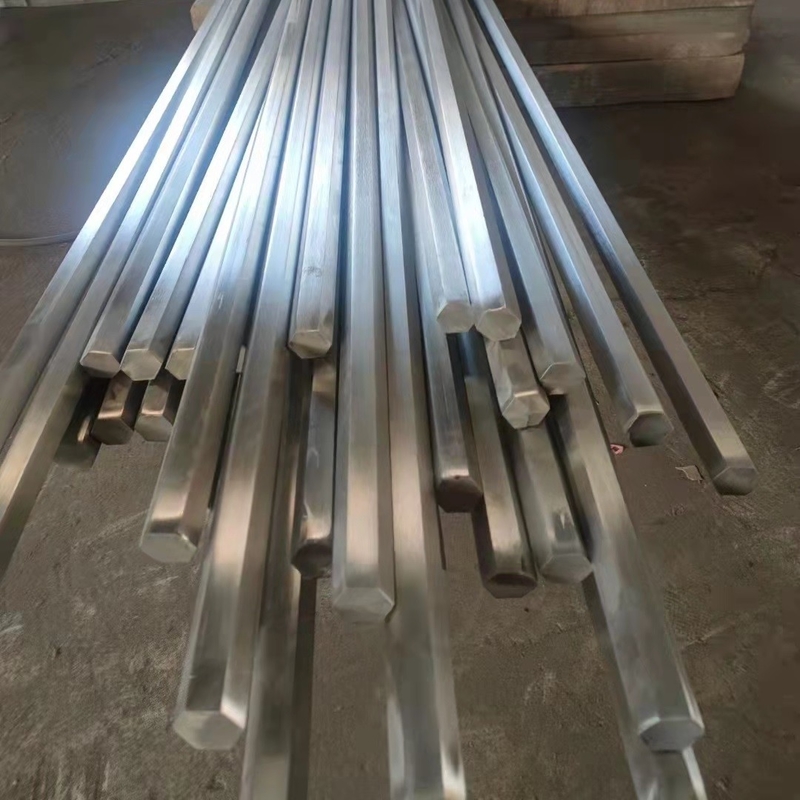

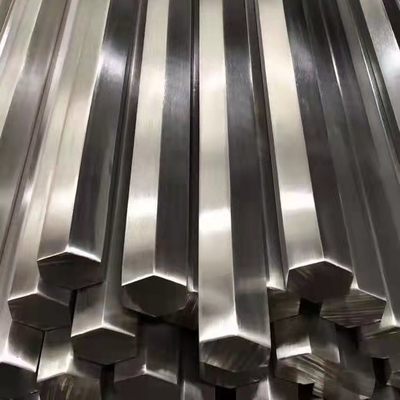

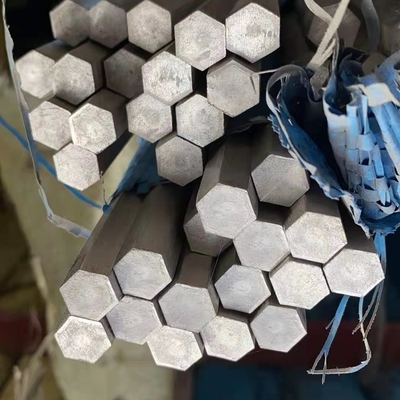

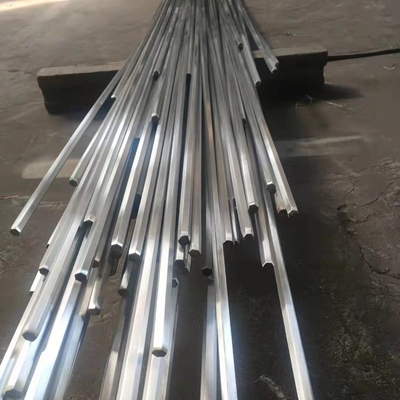

Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright 0Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright 1Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright 2Diameter 4mm 416 Stainless Steel Hexagonal Bar Bright 3
