Product Details:
|
| Material: | Stainless Steel | Shape: | Flat Plate Sheet |
|---|---|---|---|
| Thickness: | 1-30mm | Width: | 10mm-1500mm |
| Length: | 200-12000mm | Surface: | 2B NO.1 |

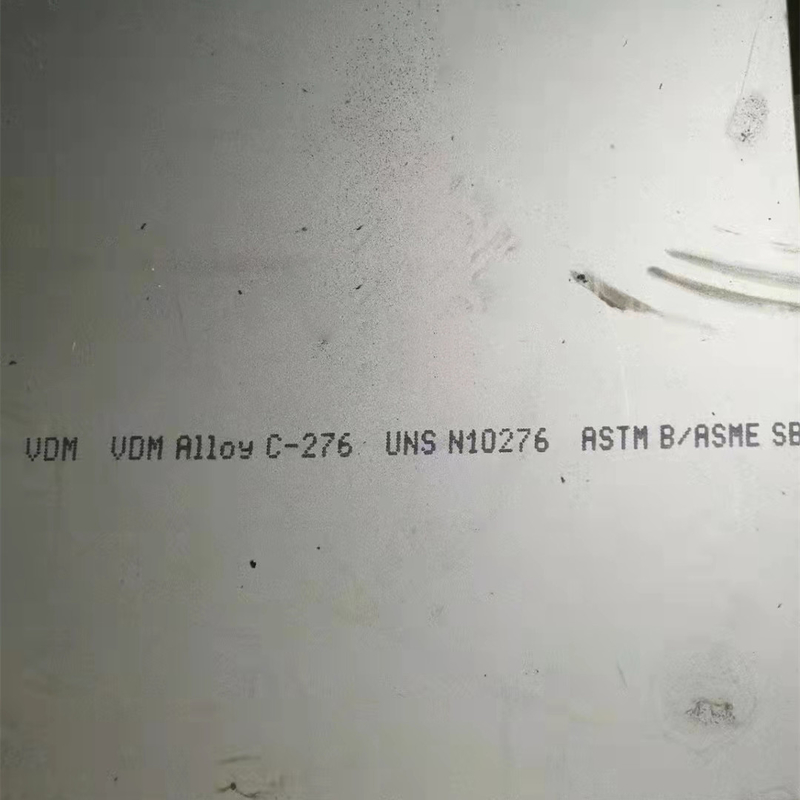

Hastelloy C276 Plate
While the Alloy C276 Sheet has a higher rate of work hardening in comparison to its austenitic counterpart grades, an in processing annealing may be required if the Nickel Alloy C276 Sheet is to be work hardened to a higher degree. A solution annealing process may be required if the Nickel C276 Strip undergoes a deformation rate of more than 15%.
ASTM B575 Alloy C276 Plate is resistant to general corrosion, stresscorrosion cracking, pitting and crevice corrosion in a broad range of severe environments. Alloy C276 Hastelloy plate has exceptional resistance to sulfuric acid and hydrochloric acid.
| ASTM Specification | ASTM B127 / ASME SB127 |
|---|---|
| Standard | MSRR, AMS, BS |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", 4' x 8', Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Test Report |
|
| Profiling |
To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| We offer a comprehensive services designed to add value to your project: plasma cutting, waterjet cutting, laser cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing. | |
| Price of Hastelloy C276 Plate | C276 Alloy Plate Price in India (INR) | Nickel Alloy C276 Plate Price in USD | ASTM B575 UNS N10276 Plate Price in UAE Dirham |
|---|---|---|---|
| NICKEL ALLOY PLATES CONF. TO SPECN.SB-575 UNS-N10276 HASTELLOY C-276 SIZE(MM): 16 X 2000 X 7500 | INR 1,380 | $18.55 | 68.12 UAE Dirham |
| NICKEL ALLOY PLATE HASTELLOY C 276 0.6*385*940 mm | INR 3,047 | $40.95 | 150.42 UAE Dirham |
| HASTELLOY(R)C - 276 ALLOY PLATE 0.1875 IN THK, 48.0000 IN WIDE, 59.0600 IN LONG NICKEL ALLOY | INR 1,815 | $24.39 | 89.60 UAE Dirham |
| HASTELLOY (R) C-276 ALLOY PLATE 0.5 THK, 39.3700 WIDE,48.0300 | INR 2,130 | $28.63 | 105.15 UAE Dirham |
| UNS: | N10276 |
| Specifications: | ASTM B575, ASTM B906 |
| international Specifications: | ISO 6208, DIN 17750, VdTüV 400/12.98 |
| Hastelloy C276 Chequered Plate | C276 Hastelloy Quarto Plate |
| Nickel Alloy C276 Clad Plate | ASTM B575 UNS N10276 Tisco Plate |
| Hastelloy DIN 2.4819 Chequer Plate | Hastelloy Alloy C276 Tread Plate |
| ASTM B575 UNS N10276 Checker Plate | Nickel C276 Polished Plate |
| Hastelloy Alloy C276 Plate Mirror Finish | Nickel Alloy C276 Chequered Plate |
| Nickel C276 Plate Brushed Finish | Hastelloy C276 Hot Rolled Sheet |
| Nickel Alloy C276 10mm Plate | ASTM B575 UNS N10276 Cold Rolled Sheet |
| Hastelloy C276 1/4 Inch Plate | Hastelloy UNS N10276 Perforated Sheet |
| Hastelloy UNS N10276 Plate | Alloy C276 Rolling Plate |
| C276 Hastelloy Hot Rolled Plate | Nickel C276 Perforated Plate |
| Alloy C276 Cold Rolled Plate | Hastelloy 2.4819 Bbq Plate |
| Nickel C276 Plate 2b Finish | Nickel Alloy C276 Diamond Plate |
| Alloy Hastelloy C276 Plate | Hastelloy C-276 UNS N10276 Cold Rolled Plate |
| ASTM B575 C276 Hastelloy 2D Plate | Hastelloy UNS N10276 Polished Cold Drawn Plate |
| Hastelloy C276 Alloy Strip Tape | Hastelloy C276 N10276 Slitting Coil |
| Alloy C276 Hastelloy Hot Rolled Plate | Hastelloy UNS N10276 Polished Cold Drawn Plate |
| C276 Hastelloy Shim Sheet | 2.4819 Alloy C276 Flat Plate |
| Hastelloy C276 Alloy Strip Tape | Hastelloy C276 ASTM B575 Polish Plate |
| Alloy C276 Hastelloy Hot Rolled Plate | Hastelloy C276 Circle |
| Hastelloy 2.4819 Plate Mill Finish | Hastelloy DIN 2.4819 Thin Plate |
| ASTM B575 UNS N10276 Custom Cut Plate | Alloy C276 Sheet |
| Hastelloy UNS N10276 Checkered Plate | Hastelloy C276 Laser Cut Plate |
| Alloy C276 Embossed Plate | Hastelloy UNS N10276 Plasma Cutting Plate |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.89 g/cm³ | 0.321 lb/in³ |
| Melting point | 1371°C | 2500°F |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ??760 |
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@24-93°C/75.2-199°F) | 11.2 µm/m°C | 6.22 µin/in°F |
| Thermal conductivity (-168 °C) | 7.20 W/mK | 50.0 BTU in/hr.ft².°F |
Hastelloy C276 Plate Imperial Dimensions
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
ASTM B127 Alloy C276 Plate Metric Dimensions
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
| Thickness | Alloy | Plate Weight per Unit Area | Density |
|---|---|---|---|
| 3/16 inches | Hastelloy C276 | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Hastelloy C276 | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Hastelloy C276 | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Hastelloy C276 | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Hastelloy C276 | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Hastelloy C276 | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Hastelloy C276 | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Hastelloy C276 | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Hastelloy C276 | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Hastelloy C276 | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Hastelloy C276 | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Hastelloy C276 | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Hastelloy C276 | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Hastelloy C276 | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Hastelloy C276 | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Hastelloy C276 | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
|
Size (in inches)
|
Size (in mm)
|
|---|---|
|
.125"
|
3.18mm
|
|
.134"
|
3.40mm
|
|
.156"
|
3.96mm
|
|
.187"
|
4.75mm
|
|
.250"
|
6.35mm
|
|
.312"
|
7.92mm
|
|
.375"
|
9.53mm
|
|
.500"
|
12.7mm
|
|
.625"
|
15.9mm
|
|
.750"
|
19.1mm
|
|
.875"
|
22.2mm
|
|
1"
|
25.4mm
|
|
1.125"
|
28.6mm
|
|
1.250"
|
31.8mm
|
|
1.500"
|
38.1mm
|
|
1.750"
|
44.5mm
|
|
2"
|
50.8mm
|
|
2.500"
|
63.5mm
|
|
3"
|
76.2mm
|
