Product Details:
|
| Product Name: | SPCC Steel Coil/strip/plate/sheets | Type: | Steel Coil |
|---|---|---|---|
| Coil ID: | 508mm / 610mm | Technique: | Cold Rolled |
| Width: | 600-1500mm | Standard: | ASTM,AISI |
| Coil Weight: | 3-10 Tons | ||
| High Light: | id 508mm cold rolled steel coils,spcc cold rolled steel coils,id 508mm cold rolled coil |
||
COLD ROLLED STEEL COILS(CRC)
Width (mill edge): 914-1500mm
Max. Thickness: 0.3--2.0mm
Min. Thickness: 0.3mm

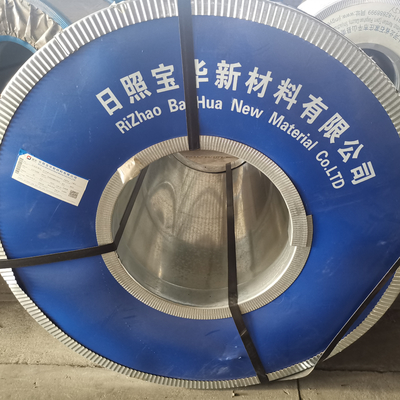

Inside diameter: 508mm or 610mm
Outside diameter: 850~1500mm
Description of goods: we can supply soft, semi-soft, cold hard and stainless worked cold-rolled steel coils at customer's option
Steel Grade: SPCC-SD, SPCC-1B, DC01, DC02, DC03, DC04
Specification:
| Name | Cold rolled steel coil/sheet |
| Standard | JIS 3302 / ASTM A653 / EN10143 |
| Grade | Q235, SGCC, CGCC, SPCC, DX51D, DX52D, SPHC, DC01, DC03, DC04, ST12 |
| Width | 750~1250mm |
| Thickness | 0.12~3.0mm |
| Surface treatment | chromated / galvanized/oiled/annealed |
| ID coil | 508mm or 610mm |
| Coil weight | 3-8 MT |

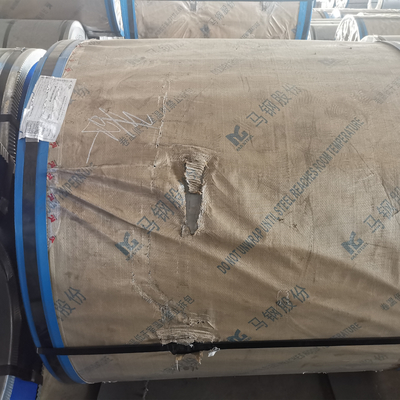

| Package: | Standard exporting package |
| Application | Industrial panels, roofing and siding for painting |
| Price terms | FOB,CFR,CIF |
| Payment terms | 30%TT in advance+70% TT or irrevocable 100%L/C at sight |
| delivery time | within 25 days |
Chemical Composition
| Grades | chemical composition % | ||||||
| C | Mn | P | S | An | Aita | Tib | |
| SPCC | ≤0.12 | ≤0.50 | ≤0.035 | ≤0.025 | ≥0.020 | - | - |
| SPCD | ≤0.10 | ≤0.45 | ≤0.030 | ≤0.025 | ≥0.020 | - | - |
| SPCE,SPCEN | ≤0.08 | ≤0.40 | ≤0.025 | ≤0.020 | ≥0.020 | - | - |
| DC01(St12) | ≤0.10 | ≤0.50 | ≤0.035 | ≤0.025 | - | ≥0.020 | - |
| DC03(St13) | ≤0.08 | ≤0.45 | ≤0.030 | ≤0.025 | - | ≥0.020 | - |
| DC04(St14,St15) | ≤0.08 | ≤0.40 | ≤0.025 | ≤0.020 | - | ≥0.020 | - |
| DC05(BSC2) | ≤0.008 | ≤0.30 | ≤0.020 | ≤0.020 | - | ≥0.015 | ≤0.20 |
| DC06(St16,St14-T,BSC3) | ≤0.006 | ≤0.30 | ≤0.020 | ≤0.020 | - | ≥0.015 | ≤0.20 |
A:For grades DC01,DC03 & DC04,if the C≤0.01 then Ait≥0.015.
B:Nb content can combined to Ti content,and total content of Nb & Ti should ≤0.20.
Surface Quality
| Rank | Code | Features |
| More senior finished surface | FB(03) | Surface allow to have small amount defect that does not effect |
| High finished surface | FC(04) | |
| High finished surface | FD(05) |
Strip Thickness Deviation
Specified Min. | Thickness | Thickness Tolerance(mm) | |||||
| General accuracy PT.A | High accuracy PT.B | ||||||
| Width(mm) | Width(mm) | ||||||
| ＜1200 | 1200-＜1500 | ＞1500 | ＜1200 | 1200-＜1500 | ＞1500 | ||
| ＜280 | 0.30-0.40 | ±0.04 | ±0.05 | - | ±0.025 | ±0.035 | - |
| ＞0.40-0.60 | ±0.05 | ±0.06 | ±0.07 | ±0.035 | ±0.045 | ±0.05 | |
| ＞0.60-0.80 | ±0.06 | ±0.07 | ±0.08 | ±0.045 | ±0.05 | ±0.05 | |
| ＞0.80-1.00 | ±0.07 | ±0.08 | ±0.09 | ±0.05 | ±0.06 | ±0.06 | |
| ＞1.00-1.20 | ±0.08 | ±0.09 | ±0.10 | ±0.06 | ±0.07 | ±0.07 | |
| ＞1.20-1.60 | ±0.10 | ±0.11 | ±0.11 | ±0.07 | ±0.08 | ±0.08 | |
| ＞1.60-2.00 | ±0.12 | ±0.13 | ±0.13 | ±0.08 | ±0.09 | ±0.09 | |
| ＞2.00-2.50 | ±0.14 | ±0.15 | ±0.15 | ±0.10 | ±0.11 | ±0.11 | |
| ＞2.50-3.00 | ±0.16 | ±0.17 | ±0.17 | ±0.11 | ±0.12 | ±0.12 | |
| ＞3.00-3.50 | ±0.17 | ±0.19 | ±0.19 | ±0.14 | ±0.15 | ±0.15 | |
| 280-＜360 | 0.30-0.40 | ±0.05 | ±0.06 | - | ±0.03 | ±0.04 | - |
| ＞0.40-0.60 | ±0.06 | ±0.07 | ±0.08 | ±0.04 | ±0.05 | ±0.06 | |
| ＞0.60-0.80 | ±0.07 | ±0.08 | ±0.10 | ±0.05 | ±0.06 | ±0.06 | |
| ＞0.80-1.00 | ±0.08 | ±0.10 | ±0.11 | ±0.06 | ±0.07 | ±0.07 | |
| ＞1.00-1.20 | ±0.10 | ±0.11 | ±0.12 | ±0.07 | ±0.08 | ±0.08 | |
| ＞1.20-1.60 | ±0.12 | ±0.13 | ±0.13 | ±0.08 | ±0.10 | ±0.10 | |
| ＞1.60-2.00 | ±0.14 | ±0.16 | ±0.16 | ±0.10 | ±0.11 | ±0.11 | |
| ＞2.00-2.50 | ±0.17 | ±0.18 | ±0.18 | ±0.12 | ±0.13 | ±0.13 | |
| ＞2.50-3.00 | ±0.19 | ±0.20 | ±0.20 | ±0.13 | ±0.14 | ±0.14 | |
| ＞3.00-3.50 | ±0.20 | ±0.23 | ±0.23 | ±0.17 | ±0.18 | ±0.18 | |
| ＞360 | 0.30-0.40 | ±0.06 | ±0.07 | - | ±0.04 | ±0.05 | - |
| ＞0.40-0.60 | ±0.07 | ±0.08 | ±0.10 | ±0.05 | ±0.06 | ±0.07 | |
| ＞0.60-0.80 | ±0.08 | ±0.10 | ±0.11 | ±0.06 | ±0.07 | ±0.07 | |
| ＞0.80-1.00 | ±0.10 | ±0.11 | ±0.13 | ±0.07 | ±0.08 | ±0.08 | |
| ＞1.00-1.20 | ±0.11 | ±0.13 | ±0.14 | ±0.08 | ±0.10 | ±0.10 | |
| ＞1.20-1.60 | ±0.14 | ±0.16 | ±0.16 | ±0.10 | ±0.11 | ±0.11 | |
| ＞1.60-2.00 | ±0.17 | ±0.18 | ±0.18 | ±0.11 | ±0.13 | ±0.13 | |
| ＞2.00-2.50 | ±0.20 | ±0.21 | ±0.21 | ±0.14 | ±0.15 | ±0.15 | |
| ＞2.50-3.00 | ±0.23 | ±0.24 | ±0.24 | ±0.15 | ±0.17 | ±0.17 | |
| ＞3.00-3.50 | ±0.24 | ±0.27 | ±0.27 | ±0.20 | ±0.21 | ±0.21 | |
Cold rolled sheet steel products are used in a wide variety of end applications such as appliances,
automobiles, exposed as well as unexposed parts, electric motors, plumbing fixtures, drum manufacturing,
shelving, furniture, doors, toolboxes, tubing products, unexposed construction products, as well as many
other areas of manufacturing.
