Product Details:
|
| Certification: | ISO9001-2000 | Alloy Or Not: | Non-alloy |
|---|---|---|---|
| Technique: | ERW | Thickness: | 2.87 - 13.84 Mm |
| Application: | Structure Pipe | Length: | 5.8-12m |
| Shape: | Square | ||
| High Light: | en 10025 large diameter rectangular tube,100x200 large diameter rectangular tube,s355 carbon rectangular tube |
||

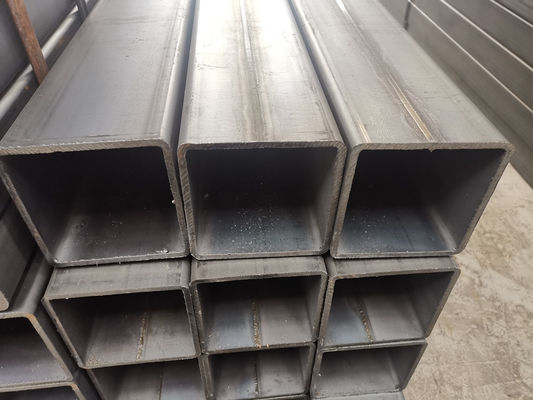

SS400 Black Welded Steel Square Tubing RHS 0.45 - 30 mm Wall Thickness
| SIZE: | 10x10-1200x1200mm |
| SIZE TORLERENCE: | +/-0.03mm |
| WALL THICKNESS: | 0.45-30mm |
| TORLERENCE: | +/-0.03mm |
| STANDARD: | GB/T 3094-2000 ASTM A 500 JIS G 3466 |
| CERTIFICATE: | ISO BV SGS |
| MATERIAL: | Q195 /Q215/Q235/ Q345 |
| TECHNIQUE: | Welded , cold-rolled. |
| SECTION SHAPE: | Rectangular |
| PACKING: |
1. In bundle with strip 2. By PP Woven material and anti-water plastic 3. As the customer's requirement. |
|
SURFACE TREATMENT: |
1)Black , Pre-galvanized 2)oiled , powder coating 3)Galvanized as your requirement |
| USAGE: |
Car-making ,machine manufacturing , Container Frame, Furniture |
| MAIN MARKET: | Middle East, Africa , North and South America , East and West Europe , Southeast Asia Australia |
| PAYMEN& SHIPPMENT TERMS: | |
| MINIMUM ORDER QUANTITY: | 25 metric tones |
| PORT: | SHANGHAI |
| DELIVERY TIME: | 20 days after receiving the LC or deposit |
| PAYMENT TERM: | LC at sight TT D/P ,ect |
| SUPPLY ABILITY: | 10000mts per month |
S355 steel is a European standard structural steel grade, according to EN 10025-2: 2004, material S355 is divided into 4 main quality grades:
The properties of structural steel S355 is better than steel S235 and S275 in yield strength and tensile strength.
The following letters and numbers explains the steel grade S355 meaning.
Below are the tables to show the steel grade S355 datasheet including chemical composition, yield strength, tensile strength and elongation, etc. All data sheet of DIN EN 10025-2 is the same as BS EN 10025-2 and other EU member states.
The datasheet below shows grade S355 steel chemical composition.
| S355 Chemical Composition % (≤) | ||||||||||
| Standard | Steel | Grade | C | Si | Mn | P | S | Cu | N | Method of deoxidation |
| EN 10025-2 | S355 | S355JR | 0.24 | 0.55 | 1.60 | 0.035 | 0.035 | 0.55 | 0.012 | Rimmed steel is not allowed |
| S355J0 (S355JO) | 0.20 | 0.55 | 1.60 | 0.030 | 0.030 | 0.55 | 0.012 | |||
| S355J2 | 0.20 | 0.55 | 1.60 | 0.025 | 0.025 | 0.55 | – | Fully killed | ||
| S355K2 | 0.20 | 0.55 | 1.60 | 0.025 | 0.025 | 0.55 | – | Fully killed | ||
The datasheet below gives EN 10025 S355 steel mechanical properties such as yield strength, tensile strength and elongation.
| S355 Yield Strength (≥ N/mm2); Dia. (d) mm | |||||||||
| Steel | Steel Grade (Steel Number) | d≤16 | 16< d ≤40 | 40< d ≤63 | 63< d ≤80 | 80< d ≤100 | 100< d ≤150 | 150< d ≤200 | 200< d ≤250 |
| S355 | S355JR (1.0045) | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 |
| S355J0 (1.0553) | |||||||||
| S355J2 (1.0577) | |||||||||
| S355K2 (1.0596) | |||||||||
| S355 Tensile Strength (≥ N/mm2) | ||||
| Steel | Steel Grade | d<3 | 3 ≤ d ≤ 100 | 100 < d ≤ 250 |
| S355 | S355JR | 510-680 | 470-630 | 450-600 |
| S355J0 (S355JO) | ||||
| S355J2 | ||||
| S355K2 | ||||
| Elongation (≥%); Thickness (d) mm | ||||||
| Steel | Steel Grade | 3≤d≤40 | 40< d ≤63 | 63< d ≤100 | 100< d ≤ 150 | 150< d ≤ 250 |
| S355 | S355JR | 22 | 21 | 20 | 18 | 17 |
| S355J0 (S355JO) | ||||||
| S355J2 | ||||||
| S355K2 | 20 | 19 | 18 | 18 | 17 |
|
