Product Details:
|
| Grade: | 316L | Surface: | 2B BA NO.4 |
|---|---|---|---|
| Width: | 5-2000mm | Hardness: | 1/2H 3/4H Full Hard |
| Condition: | Cold Rolled | Standard: | ASTM A240 |
| High Light: | stainless steel coil stock,cold rolled stainless steel coil |
||

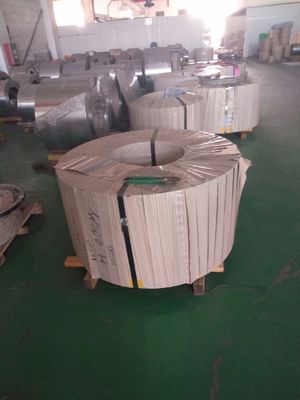

316L Stainless Steel Strip Coil for Heat Exchanger 1/2H 3/4H Full Hard
Quick detail:
| escription | 316L Cold rolled and hot rolled stainless steel coils | Miller | ZPSS TISCO |
| Series | 300 series | Payment terms | by T/T in advance or by irrevocable L/C at sight |
| Grade | 316L | Packaging | Seaworthy standard export package with pallet |
| Thickness | 0.3-3.0mm, 3.0-12mm | Shipping date | about a month |
| Finish | No.1 2B 2D BA NO.4 HL | Shipping terms | FOB CFR CIF etc. |
| Width | 1000-1550mm | Other grades | 201 202 2205 301 310 316L 436 439 441 410 420 430 406L |
| Edge | Slit edge or mill edge | Thickness tolerance | to be defined with customers |
| Standard | JIS ASTM EN | Surface treatment | Cold rolled,annealed, pickled |
| Coil ID | 508/610mm | Q'ty tolerance | +/-10% on order quantity |
| Grade | Prime | Paper Interleaved | Yes |
Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments.
Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.
The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.
Compared to chromium-nickel austenitic stainless steels, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures.
Chemical Composition
C≤0.03,Si≤1.0,Mn≤2.00,P≤0.045,S≤0.030,Ni:10.0-14.0,Cr:16.0-18.0,Mo:2.0-3.0
Mechanical Properties
Tensile Strength (N/mm2) :480 MIN
Yield Strength (N/mm2):175 MIN
Elongation (%) :40 MIN
Density: 7.98g/cm3,
Hardness: HRB<90 HV<200 HBS<187
