DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed

DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed
DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed

Large Image :  DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed

Product Details:
Place of Origin: China
Brand Name: Mittel Steel
Model Number: ST35, DIN2391
Payment & Shipping Terms:
Minimum Order Quantity: 2 tons
Price: USD 345-789 per ton
Packaging Details: packed with pvc bundles of shipping
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 30000 tons per month

DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed

Description
Certification: SGS, BV, ISO Stock: Always In Good Stock
Product Name: ST35 Cold Drawn Seamless Steel Pipe Grade: 10#, 20#, 16Mn, API J55, Q195, Q215, Q235, Q345
Length: 1000mm-12000mm OD: 15mm-550mm
Wall Thickness: 0.32mm-45mm Technique: ERW
Standard: ASTM, AISI, JIS, DIN, EN, GB Sample: Allowed
Application: Structure Pipe
High Light:

carbon steel seamless pipe

,

structural steel pipes

DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Tube 6mm Outer Diameter x 2mm Inside diameter

Product Name DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Tube 6mm Outer Diameter x 2mm Inside diameter
Material

Q235 (low carbon steel )
Chemical composition C:0.06-0.12 Mn:0.25-0.50

Si<=0.30 P<=0.45

Tensile strength :315-430 (Mpa)

Technology Cold Rolled Black Annealed
Shape Square. Rectangular.Round
Wall Thickness 0.3mm~2.0mm
Size Square: 10*10mm ~ 100*100mm
Rectangular: 8*16 ~ 50*100 (mm)
Round: ∅12 ~ ∅90 (mm)
Oval: 9.5*17 ~ 25*50 (mm)
LTZ: 29mm, 34mm, 28mm,38mm
Length 5.8-12m
Tolerance Wall thickness tolerance :+/-0.2mm
Length tolerance :+/-20mm
Package 1.In Bundle
2.Plastic Outside In Bundles
3.In Bulk
4.As Customer's Request

Payment

Term

30% deposit in advance, TT BL COPY LC
MOQ 10 TON
Delivery time Within 10-15 Days after receive deposit



1. Features of aluminized coated steel pipe :
1) Inside and outside bead scarfing
2) Higher expansion rate
3) Smooth surface roughness
4) Accurate roundness
5) Outside metallizing



2. Specifications of aluminized coated steel pipe :
1) Standard: GB/T13793-2008, ASTM, JIS ect.
2) Grade: SA1D
3) Outside Diameter: 8-130mm
4) Wall Thickness: 0.5-2.5mm
5) Length:5.8 meters or according to your request
6) Type: Welded

3. Application of aluminized coated steel pipe :
1) Muffler tube of exhaust systems
2) Cylinder tube of shock absorber and steering parts
3) Oven,water heaters ect

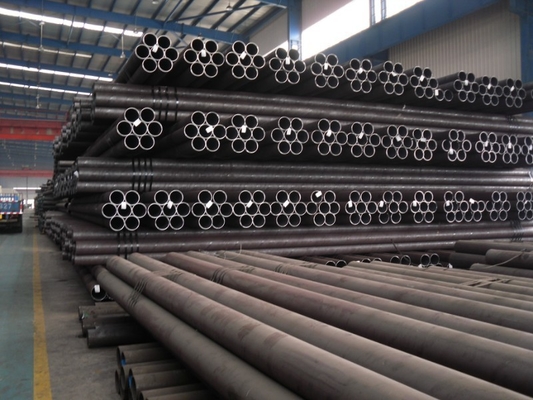

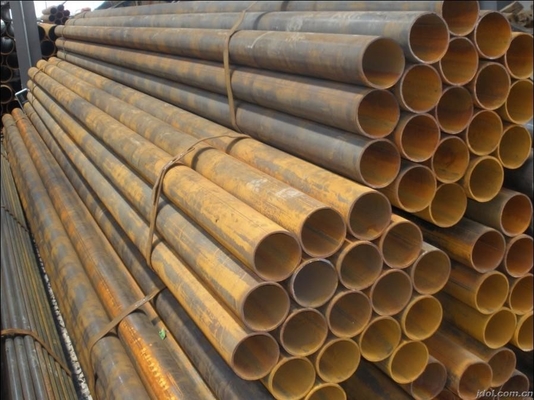

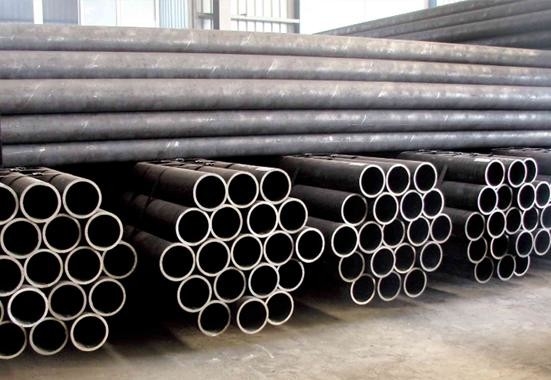

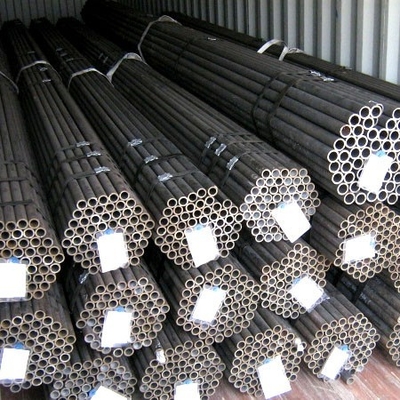

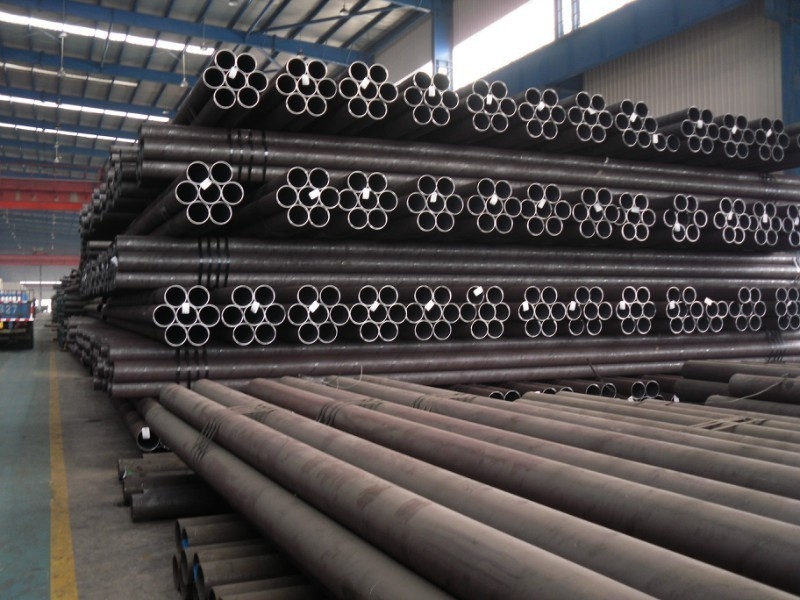

DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed 0



DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed 1



DIN 2391 ST35 Nbk Cold Drawn Seamless Steel Pipe Black Annealed 2



4.Chemical composition and Mechanical property of aluminized coated steel pipe :





Meterial Chemical Composition(%) Mechanical Properties
C Si Mn P S T.S Y.P E.L% Hardness
max. max. max. max. max. N/mm2 N/mm2 HRB
Aluminized steel SA1C 0.06 0.02 0.4 0.04 0.04 275 / 35 55
SA1D 0.06 0.02 0.4 0.04 0.04 275 / 32 50
SA1E 0.06 0.02 0.4 0.04 0.04 275 / 36 48





5. Main dimensions of aluminized coated steel pipe :



Φ8×0.5~2 Φ25×0.5~2.5 Φ48.6×1.0~2.5
Φ9×0.5~2 Φ25.4×0.5~2.5 Φ50×1.0~2.5
Φ9.53×0.5~2 Φ26×0.5~2.5 Φ54×1.0~2.5
Φ10×0.5~2 Φ27×0.6~2.5 Φ56×1.0~2.5
Φ11×0.5~2 Φ27.2×0.6~2.5 Φ57×1.0~2.5
Φ11.8×0.5~2 Φ28×0.6~2.5 Φ60×1.0~2.5
Φ12×0.5~2 Φ28.6×0.6~2.5 Φ63×1.0~2.5
Φ12.7×0.5~2 Φ30×0.6~2.5 Φ63.5×1.0~2.5
Φ13×0.5~2 Φ31×0.6~2.5 Φ70×1.5~2.5
Φ14×0.5~2 Φ31.8×0.6~2.5 Φ76×1.5~2.5
Φ15×0.5~2 Φ32×0.6~2.5 Φ80×1.5~2.5
Φ16×0.5~2 Φ33×0.6~2.5 Φ89×1.5~2.5
Φ17×0.5~2 Φ34×0.6~2.5 Φ90×1.5~2.5
Φ18×0.5~2 Φ35×0.6~2.5 Φ95×1.5~2.5
Φ19×0.5~2.5 Φ36×0.6~2.5 Φ99.5×1.5~2.5
Φ19.6×0.5~2.5 Φ36.7×0.8~2.5 Φ100×1.5~2.5
Φ20×0.5~2.5 Φ38×0.8~2.5 Φ101.6×1.5~2.5
Φ21×0.5~2.5 Φ40×1.0~2.5 Φ102×1.5~2.5
Φ22×0.5~2.5 Φ44.7×1.0~2.5 Φ114×1.5~2.5
Φ24×0.5~2.5 Φ45×1.0~2.5 Φ127×1.5~2.5
Φ24.6×0.5~2.5 Φ48×1.0~2.5 Φ130×2.0~2.5



RFQ

1, Would your company is factory or trading company?

We are factory, sir.



2, What field can your galvanized steel pipe be applied in?

It can be applied in liquid transportation system, construction, accessories and greenhouses etc.



3.Can we order some samples of GI steel tube?

Yeah, you can order the samples of GI steel tube, but we need know your detailed size.



4,Can you supply us ASTM standard steel No. galvanized steel pipe?

Yeah, we can supply you, but first of all, could you please let me know your specific material?



5.May I customize the steel pipe?

Yes, you can, we can manufacture according to your requirement, you can send the CAD or design drawing to us.



6.Quality problem?

According to the standard for production.And the products must pass the quality inspection

department.We also accept Third Part Inspection.



7, Could I use CIF term to order the items?

Yes, you can.



8,If we order your items, how long can your company deliver the cargoes?

About 7-15 days, sir.
