Nickel Alloy 3mm ASTM B424 Incoloy 825 Plate

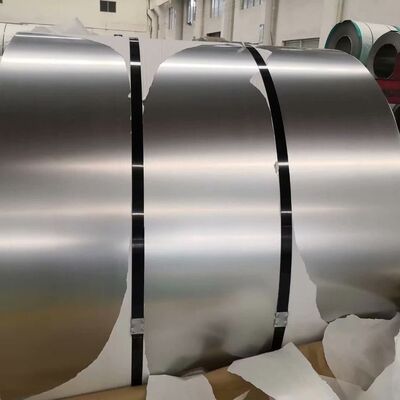

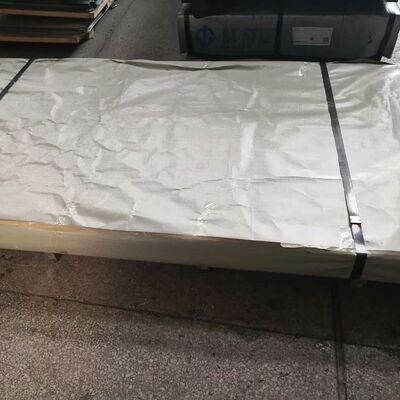

Large Image : Nickel Alloy 3mm ASTM B424 Incoloy 825 Plate

Product Details:

Place of Origin:	China Wuxi
Brand Name:	BAO STEEL MITTEL TISCO
Certification:	SGS ISO MTC
Model Number:	Incoloy 825

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	23 USD/KG
Packaging Details:	Wooden Pallet BOX
Delivery Time:	7 Working Days
Payment Terms:	L/C, T/T
Supply Ability:	80000KGS

Contact Now

Nickel Alloy 3mm ASTM B424 Incoloy 825 Plate

Description

Material:	Metal,stainless Steel	Shape:	Flat
Application:	Landscaping,Indoor And Outdoor Garden Decoration	Usage:	Garden Decoration,flower And Plants Planting,outdoor,office
Thickness:	1-3mm,1.0mm Or Customized	Width:	100-2000mm
Highlight:	3mm alloy 825 plate , ASTM B424 Incoloy 825 Plate , 3mm Incoloy 825 Plate

Incoloy 825 Stainless Steel Plate Alloy 825 Corrosion Resistant Nickel Alloy Plate Nickelvac 825 Nicrofer 4241

Specification And Material Grade Of Incoloy 825 Plate

ASME/ASTM Name	ASTM B424 / ASME SB 424
size in mm	2000 mm x 4000 mm, 1220 mm x 2440 mm, 1000 mm x 2000 mm, 2000 mm x 2000 mm, 1500 mm x 3000 mm,
Thickness of Standard Plate	0.1 to 12 mm Thick
Most Frequently Used Form	Strip, Flats, Rolls, Ring (Flange), Coils, Foils, Shim Sheet, Blank (Circle), Plain Sheet
Different Finish	Cold rolled sheet (CR), 2B, Hot rolled plates (HR), BA NO(8), SATIN (Met with Plastic Coated), 2D,
Hardness Range	Half Hard, Soft, Quarter Hard, Spring Hard, Hard etc

Minimum Yield Strength Chart Of Astm B424 UNS N08825 Strip

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Chemical Structure Of 2.4858 Coils

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Equivalent Table Of JIS NCF 825 Plates

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo
