Product Details:
|
| Brand Name: | Tisco | Type: | Seamless And Welded |
|---|---|---|---|
| Polish: | Satin,Bright Or Mirror | Application: | Decoration,industry |
| Section Shape: | Hollow Round | Quality: | High |
| High Light: | ss seamless pipes,astm stainless steel pipe |
||
Stainless Steel Grade 314 (UNS S31400) Seamless Pipe Type 314 Stainless Steel Properties
| Category | Class | Grade | Standard | Country | Application |
|---|---|---|---|---|---|
| Steel Grades | Stainless Steel | 314 |
Chemical composition(mass fraction)(wt.%) of the 314
| C ≤ |
Si ≤ |
Mn ≤ |
P ≤ |
S ≤ |
Cr | Ni |
|---|---|---|---|---|---|---|
| 0.25 | 1.50-3.00 | 2.00 | 0.045 | 0.030 | 23.0-26. | 19.0-22.0 |
| Mo | Al | Cu | Nb | Ti | V | Ce |
| N | Co | Pb | B | Other | ||
Mechanical properties / Mechanische Eigenschaften / Caracteristiques mecaniques of grade 314
| Yield Rp0.2(MPa) |
Tensile Rm(MPa) |
Impact KV/Ku (J) |
Elongation A (%) |
Reduction in cross section on fracture Z (%) |
As-Heat-Treated Condition | Brinell hardness (HBW) |
|---|---|---|---|---|---|---|
| 272 (≥) | 549 (≥) | 13 | 43 | 42 | Solution and Aging, Annealing, Ausaging, Q+T,etc | 433 |
| Grade | Standard | Country | Application |
|---|---|---|---|
| 314 | YB | USA |
Austenitic Heat Resisting Steel
|
| 314 | UNS | USA |
Special purpose alloys (superalloys)
|
| A 270 314 | SAE | USA |
Stainless steel bars and shapes
|
| A 314 314 | SAE | USA |
Stainless steel billets and bars intended only for forging
|
| A 580 type 314 | SAE | USA |
Stainless steel billets and bars intended only for forging
|
| A 473 314 | SAE | USA |
Austenitic stainless steel forgings for general use
|
| S31400 | AISI | USA |
Austenitic Chromium Nickel Heat Resisting Steel
|
| G31410 | AISI | USA |
Steel for intake valves
|
| NV4(3140) | UNS | USA |
Steel for intake valves
|
| G31400 | AISI | USA |
Steel for intake valves
|
| 314S25 | B.S. | UK |
Specification for stainless and heat-resisting steel round wire
|
| X45Cr13 | DIN | Germany |
Corrosion-resistant high-temperature steel
|
| 1.3541 | DIN | Germany |
Corrosion-resistant high-temperature steel
|
AISI 314 stainless steel is an austenitic stainless steel formulated for primary forming into wrought products. 314 is the AISI designation for this material. 1.4841 is the EN numeric designation. Additionally, the EN chemical designation is X15CrNiSi25-21. And the UNS number is S31400.
It has the lowest electrical conductivity relative to other wrought austenitic stainless steels in the database.
The properties of AISI 314 stainless steel include two common variations. The property values on this page show ranges across all of them. For more specific values, follow the links immediately below. The graph bars on the material properties cards further below compare AISI 314 stainless steel to: wrought austenitic stainless steels (top), all iron alloys (middle), and the entire database (bottom).

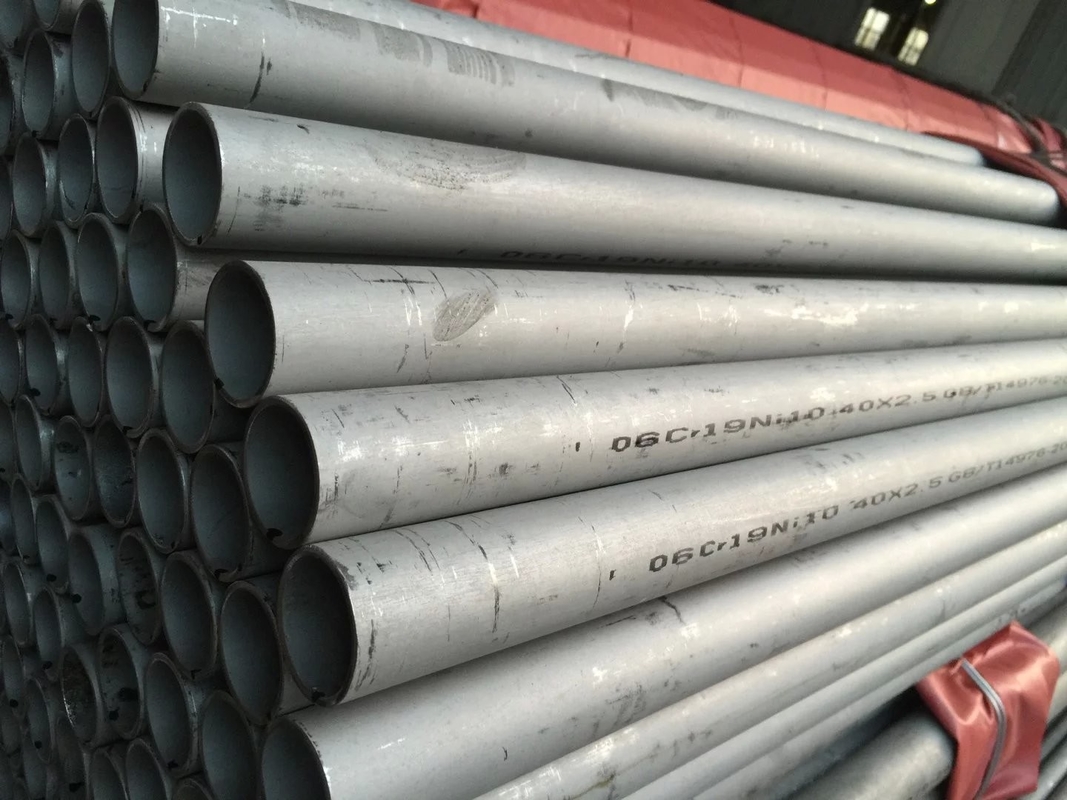

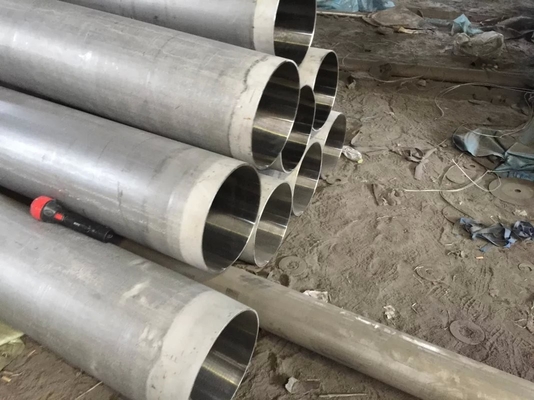

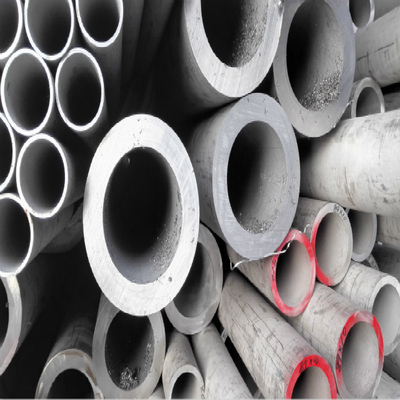

Product picture:
