Product Details:
|
| Name: | Seamless Steel Pipe | Size: | 20-508mm |
|---|---|---|---|
| Length: | 6-11m Or As Required | Company Type: | Manufactor |
| High Light: | heavy steel pipe,structural steel pipes |
||

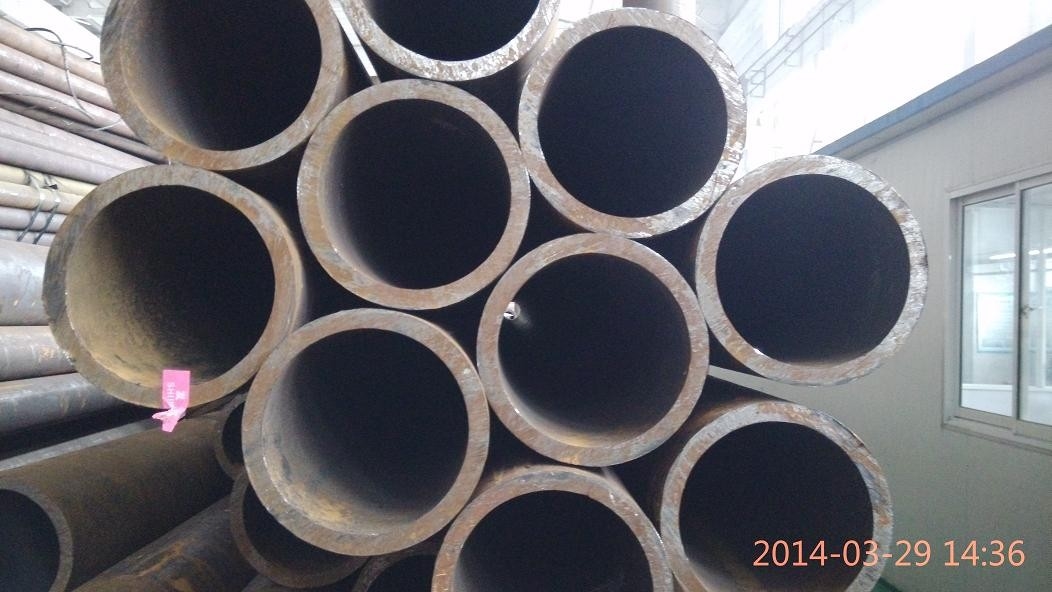

Hot rolled seamless steel pipes
| Typical size range: |
33 – 610mmOuter Diameter 1.0 – 40mm Wall Thickness Fixed 5.8m or 11.8m Lengths or 5-14m Random Lengths |
| Available specifications: |
API 5L ASTM A53 ASTM A106 ASTM A179 |
| Coatings: | PE; 3PE; FBE; black varnish; anti rust oiled; beveled or plain ends; plastic end caps |

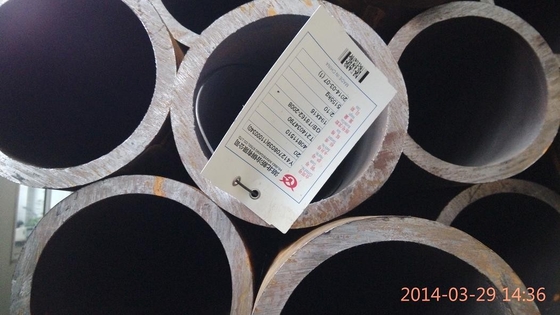

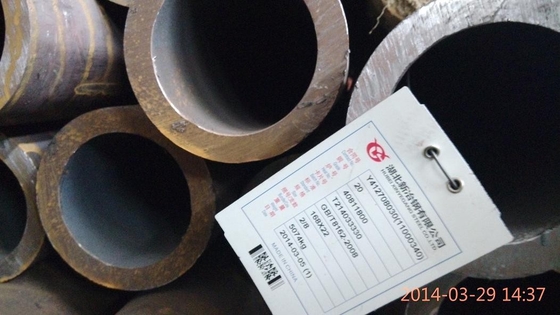

| Markings: | Heat number, size, API5L/ASTM A53, commodity name or as your request |
| Test inspections: | Chemical composition, mechanical properties, hydrostatic test, dimensional testing, visual inspection, nondestructive inspection; SGS/BV |
Production Equipment :
30 sets of Cold-drawn Machinery (Model: 3 ton to 500 ton)
Cold-rolled Machinery: Model LD-30, LD-60, LG-90H (L), LG-159H (L)
Automatic Roller Solution & Annealing Heat Treatment Equipment
18-meter-long Pickling Sin
QUALITY ASSURANCE:
1) Strictly acc. ASTM,DIN,JIS,EN,GOST etc
2) Sample: We are accept your sample requirement
3) Test: Eddy current / hydrostatic/ Ultrasonic/ Intergranular Corrosion or according to customers' request
3) Certificate:API, CE ,ISO9001.2000.MTC etc
4) Inspection: BV,SGS,others is avaliable.
High Quality Package :
1) In bundle with strip;
2) First packing by plastic bag then strip; Details packing please see the picture in the detial description.
3) In bulk
4) Client' requirements
5) Delivery:
Specifications:
|
Standard |
Steel Grade |
Standard Name |
Dimension |
|
No |
Range |
||
|
EN 10208 |
L210GA,L235GA,L245GA,L290GA, |
Steel Pipes for Pipelines for |
33.7-1626mm |
|
L360GA,L245NB, L290NB,L360NB, |
Combustible Fluids |
||
|
L415NB, L360QB, LI15QB,L450QB, |
|
||
|
L485QB,L555QB |
|
||
|
EN 10210 |
S235JRH,S275JOH,S275J2H,S355JOH, |
Hot Finished Structural |
21.3-1219mm |
|
S355J2H,S355K2H,S275NH,S275NLH, |
Hollow Sections of Non-alloy |
||
|
S355NH,S355NLH,S420NH,S420NLH, |
and Fine Grain Steels |
||
|
S46INH,S460NLH |
|
||
|
EN 10216-1 |
P195TRI,P195TR2,P235TR1, |
Seamless Steel Tubes for |
10.2-711mm |
|
P235TR2, P265TR I, P265TR2 |
Pressure Purposes-1- |
||
|
|
Non-alloy Steel Tubes with |
||
|
|
Specified Room Temperature |
||
|
|
Properties |
||
|
EN 10216-2 |
P195GH, P235GH, P265GH, |
Seamless Steel Tubes for |
10.2-711mm |
|
20MnNb6,16Mo3, 8MoB5-4, |
Pressure Purposes-2: |
||
|
14MoV6.3, 10CrMo5.5,13CrMo4-5, |
Non-alloy and Alloy Steel |
||
|
10CrMo9-10, 11CrMo9.10, |
Tubes with Specified Elevated |
||
|
25CrMo4,20CrMoV13-5-5, |
Temperature Properties |
||
|
15 NiCuMoNB-6-4,X11CrMo5+1, |
|
||
|
X11CrMo5+NTI,X11CrMo5+NT2, |
|
||
|
X11CrMo9.1+1, X11CrMo9.1+NT, |
|
||
|
X10CrMoVNb9-l, X20CrNiV11-1 |
|
||
|
EN 10216-3 |
P275NL I,P275NL2, P355N,P355NH, |
Seamless Steel Tubes for |
10.2-711mm |
|
P355NL1,P355NL2,P460N,P460NH, |
Pressure Purposes-3: |
||
|
P460NL1,P460NL2,P620Q,P620QH,P620QL, |
Alloy Fine Grant Steel Tubes |
||
|
P690Q,P690QH,P690OL1,P690QL2 |
|
||
|
EN10216-4 |
P215NL,P255QL,P265NL, |
Seamless Steel Tubes far |
10.2-711mm |
|
26CrMo4.2,11MnNi5-3,13MnNi6-3, |
Pressure Purposes-4: |
||
|
12Nil4,Xl2Ni5,X10Ni9 |
Non-alloy aid Alloy Steel |
||
|
|
Tubes with Specified Low |
||
|
|
Temperature Properties |
||
|
EN 10224 |
L235, L275, L355 |
Non-alloy Steel Tubes and |
26.9-2743mm |
|
Fittings for the Conveyance of |
|||
|
Water and Other Aqueous |
|||
|
Liquids |
|||
|
EN 10297-1 |
E235,E275,E315,E355,E470, |
Seamless Circular Steel Tubes |
26.9-610mm |
|
E275K2,E355K2,E420J2,E460K2, |
for Mechanical mid General |
||
|
E590K2,F730K2 C22E,C35E,C45E,C60E, |
Engineering Purposes-1: |
||
|
38Mn6,41Cr4,25CrMo4,30CrMo4, |
Non-alloy and Alloy |
||
|
34CrMo4,42CrMo4,36CrNiMo4, |
Steel Tubes |
||
|
30CrNiMo8,4lNiCrMo7-3-2 |
|
||
|
EN 10305-1 |
E215,E235,E355 |
Steel Tubes For Precision |
4-260mm |
|
Applications-1: |
|||
|
Seamless Cold Drawn Tubes |
|||
|
EN 10305-4 |
E215,E235,E355 |
Steel Tubes for precision |
4-80mm |
|
Applications-4: |
|||
|
Seamless Cold Drawn Tubes |
|||
|
for Hydraulic mid Pneumatic |
|||
|
Power Systems |
size range
| NPS | OD | WT | |||||||||||
| INCH | MM | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 |
| 1/2" | 21.3 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | |||||
| 3/4" | 26.7 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | |||||
| 1" | 33.4 | 2.77 | 2.9 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | |||||
| 1.1/4" | 42.2 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | |||||
| 1.1/2" | 48.3 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | |||||
| 2" | 60.3 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | |||||
| 2.1/2" | 73 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | |||||
| 3" | 88.9 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | |||||
| 3.1/2" | 101.6 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | ||||||
| 4" | 114.3 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | ||||
| 5" | 141.3 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.7 | 15.88 | |||||
| 6" | 168.3 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | |||||
| 8" | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 |
| 10" | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 |
| 12" | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 |
| 14" | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 |
| 16" | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 |
| 18" | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 |
| 20" | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 |
| 22" | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 24" | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 |
| 26" | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | ||||||||
| 28" | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | |||||||
Our Advantages:
1) Fast Delivery: around 10days below 50Metric Tons after sight of Irrevocable L/C or Deposit;(lot of high quality steel pipe in stock)
2) Quality Assured: Strictly acc. To International standard ASTM & BS & EN & JIS, with System ISO certification
3) Good Service: supplied professional technical guide free of charge at anytime;
4) Reasonable Price: to be better support your business;
Contact Person: Mr. Gao Ben
Tel: +86-18068357371
Fax: 86-0510-88680060
