Product Details:
|
| Application: | Decoration,Industry,boiler | Standard: | JIS,DIN,ASTM |
|---|---|---|---|
| Steel Grade: | 304 304L 316 316L 310S 321 | Type: | Seamless |
| Thickness: | 1mm-20mm | Length: | 3000mm~6000mm |
| Shape: | Round Pipe Tube | Outer Diameter: | 6-630mm |
| Technique: | Cold Drawn | Material: | Stainless Steel |
| Grade: | 304L 316 316L 310s 321 321H 347 347H | ||
| High Light: | Astm Stainless Steel Seamless Tube,Sus 310s Stainless Steel Seamless Tube,A312 Stainless Steel Tube 20mm |
||
| Name | Stainless steel 201/202/304/304L/316/316L/321 /410/420/430/409L/904L/2205/2507 pipe price list | |||||
| Standard | ASTM A554,ASTM A312 | |||||
| Material Grade | 201,202,304,316,316L,430 | |||||
|
Main Material
|
a) 201 (Ni0.8%-1%) b) 202 (Ni: 3.0%-4.0%) d) 316 (Ni: 10% Cr: 18%) |
|||||
| Size Range | 139mm-1600mm ETC. | |||||
| Thickness | 0.5-30mm | |||||
| Length | 6m or as customers' request | |||||
|
Tolerance |
a) Outer Diameter: +/- 0.2mm | |||||
| b) Thickness: +/- 0.02mm | ||||||
| c) Length: +/- 5mm | ||||||
| Surface |
180G, 320G Satin/Hairline 400G, 600G Mirror finish |
|||||
| Application | handrail,railing, staircase, weldmesh screen,door,window, balcony,fence,bench,furniture,etc | |||||
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT | |||||
|
Chemical Composition of Material |
Material
Composition |
201 | 202 | 304 | 316L | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.035 | ≤0.12 | |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
| Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 | |
| Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 | 10-14 | ||
| Mo | 2.0-3.0 | |||||
|
Mechanical Property |
Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <105 | <100 | <90 | <90 | ||
MAIN PRODUCTION STANDARDS:
|
STANDARD TYPE
|
STANDARD |
|
EN |
EN10216-5 , EN10216-2 |
|
DIN
|
DIN 17456 , DIN 17458 |
|
ASTM
|
ASTM A312, A213, A269, A511, A789, A790 ETC |
|
GOST |
GOST 9941 , GOST 5632 |
|
JIS
|
JIS G3459 , JIS G3463 |
|
GB
|
GB/T14975,GB/T14975, GB13296, GB5310, GB9948 |
1. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”

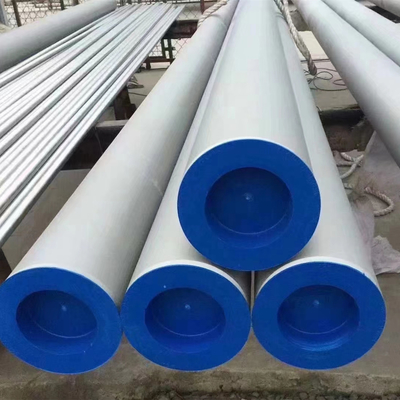

6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
