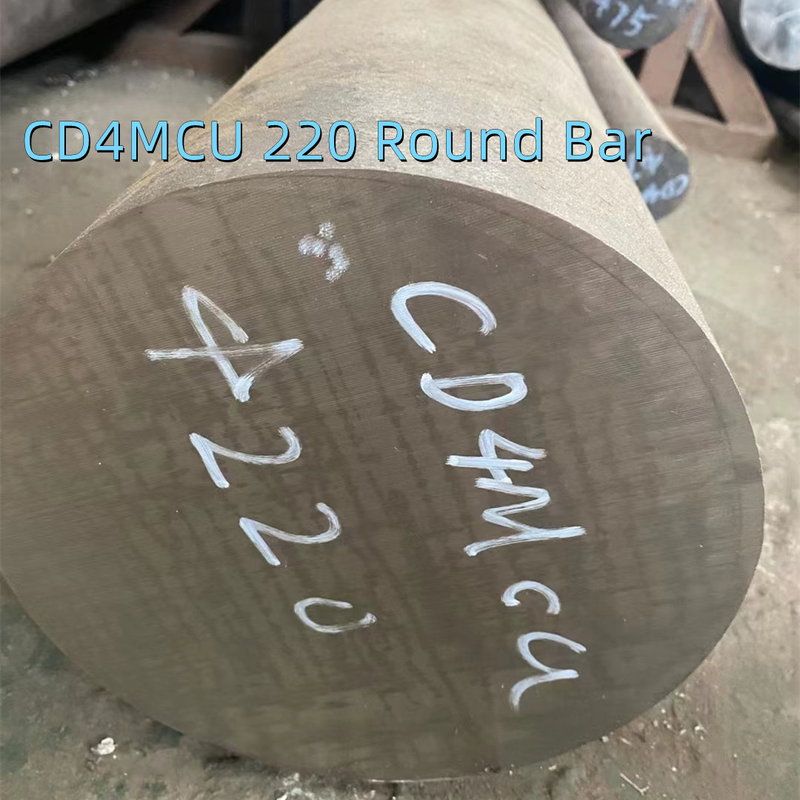

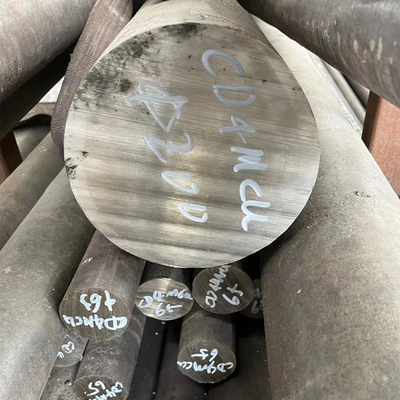

190mm Duplex Stainless Steel Round Bar Casting Material CD4MCU SS2605

190mm Duplex Stainless Steel Round Bar Casting Material CD4MCU SS2605
190mm Duplex Stainless Steel Round Bar Casting Material CD4MCU SS2605 190mm Duplex Stainless Steel Round Bar Casting Material CD4MCU SS2605 190mm Duplex Stainless Steel Round Bar Casting Material CD4MCU SS2605

Large Image :  190mm Duplex Stainless Steel Round Bar Casting Material CD4MCU SS2605

Product Details:
Place of Origin: China
Brand Name: MITTEL TISCO BAO STEEL
Model Number: CD4MCU
Payment & Shipping Terms:
Minimum Order Quantity: 300KGS
Price: 6.5 USD/KG
Packaging Details: Wooden Box
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

190mm Duplex Stainless Steel Round Bar Casting Material CD4MCU SS2605

Description
Certification: ISO,BV,SGS Type: Round
Application: Industry Standard: DIN,ASTM
Grade: CD4MCU SS2605 Shape: Round
Dimensions: 5.5mm-500mm Technique: Cold Drawn&hot Rolled
Packing: Standard Seaworthy Package Price Term: CIF CFR FOB Ex-Work
High Light:

Duplex Casting Stainless Steel Round Bar

,

CD4MCU Stainless Steel Round Bar

,

190 mm Stainless Steel Round Bar

190mm Duplex Stainless Steel-Casting Material CD4MCU SS2605 Round Bar

CD4MCu

Specifications CD4MCu Duplex stainless, CD4MCu Chemical, CD4MCu properties from steelmaking, hot forging, hot rolling, heat treatment, cold working. We also possess advanced precision machining equipments for further processing.
MATERIAL DATA SHEET - Grade CD4MCu

MATERIAL CATEGORY - Duplex stainless steel - 25Cr-5Ni-2Mo-3Cu
MATERIAL SPECIFICATIONS - ASTM A959 (2004), A276, A312, A632, A176, A580, A564
CHEMICAL COMPOSITION (WEIGHT %)
C (%): ≤ 0.04
Si (%): ≤ 1.00
Mn (%): ≤ 1.00
P (%)≤: 0.040
S (%)≤: 0.040
Ni (%): 4.75 ~ 6.00
Cr (%): 24.5 ~ 26.5
Mo (%): 1.75 ~ 2.25
Cu (%): 2.75 ~ 3.25
MECHANICAL PROPERTIES FINAL HEAT TREATMENT
Condition: solution, annealed
Tensile strength, σb/MPa: ≥ 689
Yield strength, σ0.2/MPa: ≥483
Elongation, δ (%): 16.0
Reduction of area, ф (%): -
Hardness | HRB: 94RB ~ 27RC

Stainless Steel Rod, Bar, Wire, Cold drawn, ground and polished

Standard length of bars: 2 - 3 meter.

Austenitic Stainless Steel for implants, with high corrosion resistance.

According to ISO 5832/1, F-138 Vacuum melt grade (VAR)

For surgical instruments, fracture fixation devices, screws for implants and many more similar applications.

PRODUCT DESCRIPTION
The alloy is usually produced by AOD / VOD /VIM followed by electroslag refining (ESR) / VAR if necessary for special purpose.
Bars and, where applicable, forgings are subjected to ultrasonic examination based on the different levels according to the buyers' requirements.
Bars are usually supplied black/bright in the annealed condition.
Final heat treatment - solution treatment / QT
TYPICAL APPLICATIONS
Chemical equipment
Mechanical parts used in the condition of corrosion resistance
Bolt and nut
Pressure vessel

PRODUCT PROFILE & FORMS
Round bar / Wire rod (Diameter): 5.5mm to 550mm
Square bar / Flat bar: 3mm to 1000mm
Plate / Sheet steel / Steel strip: 0.1mm to 1000mm
Width: 8mm to 1000mm
Length: random length or based on the customer's special requirement.
Forged steel shape: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
TECHNICAL SALES ASSISTANCE
If you meet further on any technical enquiry, pleased to EMAIL our resident team of qualified production engineers.
