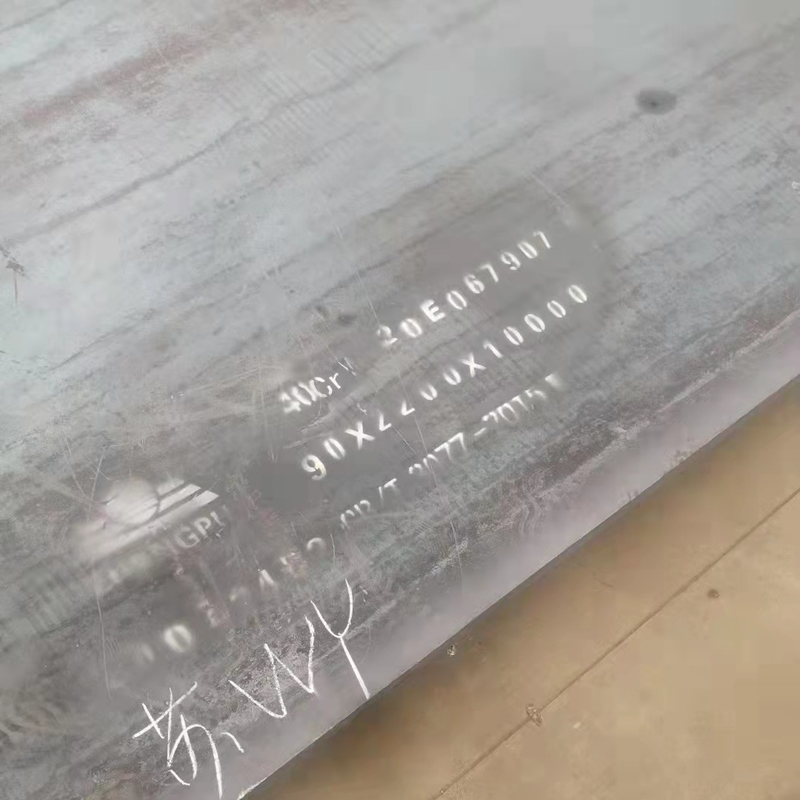

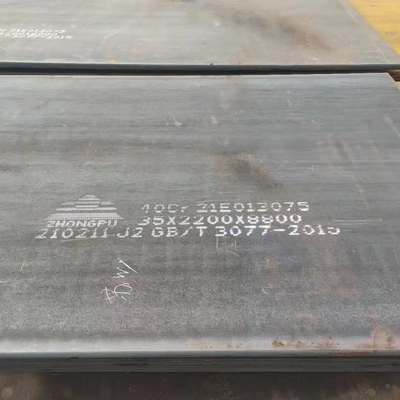

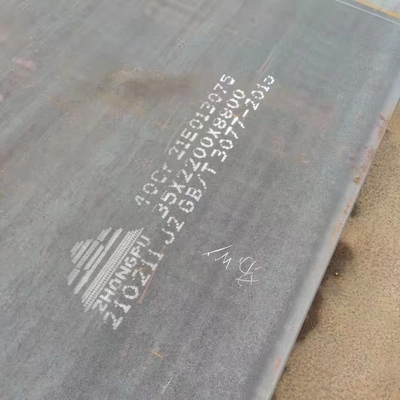

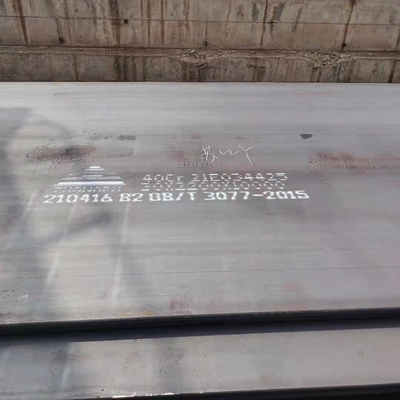

Product Details:
|
| Name: | Alloy Steel Plate | Technique: | Cold Rolled / Hot Rolled |
|---|---|---|---|
| Width: | 1500-2500mm | Length: | 6000-13000mm |
| Thickness: | 3-120mm | Application: | Coiled Spring And Leaf Spring |
| High Light: | Good hardenability Alloy Stainless Plate,41Cr4 Alloy Steel Plate,2500mm Alloy Steel Plate |
||
DIN 17200 1.7035 Alloy Steel Plate Structure Application Alloy Plate 41Cr4 5140 Alloy
| Products Name | Steel Plate |
| Type | Carbon Steel Plate, Alloy Steel Plate, Special Steel Plate |
| Thickness Range | 3.0 - 150mm |
| Width Range | 1000 - 2500mm as request |
| Length Range | Within 12m |
| Brand | BAOSTEEL, XINGCHENG,HBIS,BENSTEEL,TANGSHAN,HANSTEEL |
| Conpany Type | Factory and storage |
| MOQ | 1 Ton |
| Grade | as following |
| Standard | ASTM GB JIS EN |
Grade of our steel plate (ASTM Grade as Guide)
| Structural Steel | A283,A36,ABS Grade A, Grade B, Grade ADH36, Grade DH36, and Grade EH36,A514 T-1,A572 GR 50: |
| HSLA Structural Steel | A588,A656 GR80,A690 |
| Pressure vessel Steel | A285 GR C, A515 GR 70,A516 GR 70,SA537 |
| Abrasion resistant steel | AR360,AR400,AR450,AR500 |
| Alloy Steel | 5130,5140,5150,4130,4140 |
1.7035 steel stockholders and suppliers from china. OTAI SPECIAL STEEL Supply in DIN W N-R 1.7035 round bar, plate, sheet, square bar, flat bar, pipe since 2007.our steel stock more 1000tons
DIN W N-R 1.7035 alloy Steel is a high quality Quenched and Tempered Alloy Structural steel, It belong to the high quality low carbon,Low alloy chromium, molybdenum, nickel case hardening steel. Oil Quenched & Tempered Hardness is 28-34 HRc. DIN W N-R 1.7035 steel Annealing delivery hardenss less than 250HB.1.7035 With a lower carbon content range, So DIN W N-R 1.7035 alloy steel have good weldability.
Related Specifications ASTM A29/A29M DIN EN 10083/3 JIS G4053 DIN W N-R/T 3077
Form of Supply
DIN W N-R 1.7035 alloy steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. DIN W N-R 1.7035 steel Round bar can be sawn to your required lengths as one offs or multiple cut pieces. Steel 1.7035 rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
Chemical composition of 1.7035 Alloy Steel
| C(％) | 0.37～0.44 | Si(％) | 0.17～0.37 | Mn(％) | 0.50～0.80 | P(％) | ≤0.030 |
| S(％) | ≤0.030 | Cr(％) | 0.80～1.10 |
Equivalent
| USA | Germany | China | Japan | France | England | Italy | Poland | ISO | Austria | Sweden | Spain |
| ASTM/AISI/UNS/SAE | DIN,WNr | GB | JIS | AFNOR | BS | UNI | PN | ISO | ONORM | SS | UNE |
| 5140 / G51400 | 41Cr4 / 1.7035 | 40Cr | SCr440 | 42C4 | 530A40 / 530M40 | 41Cr4 | 2245 |
Heat treatment Related
Slowly heated to 850 ℃ and allow enough times, let the steel to be thoroughly heated, Then cool slowly in the furnace. The 1.7035 alloy steels will get MAX 250 HB (Brinell hardness).
Heated slowly to 880-920°C, Then after adequate soaking at this temperature quench in oil. Temper as soon as tools reach room temperature.
Mechanical Properties
The mechanical properties of annealed DIN W N-R 1.7035 alloy steel are outlined in the table below
| Tensile | Yield | Bulk modulus | Shear modulus | Poisson’s ratio | Izod Impact |
| KSI | KSI | KSI | KSI | ft.lb | |
| 76900 | 55800 | 20300 | 11600 | 0.27-0.30 | 84.8 |
Applications
DIN W N-R 1.7035 material is widely used for a variety of applications in the used in the automotive and engineering industries for toolholders and other such components. Typical applications such as valve bodies, pumps and fittings, Shaft, the high load of wheel, bolts, double-headed bolts, gears, etc
Regular size and Tolerance
Steel round bar: Diameter Ø 5mm – 3000mm
Steel plate: Thickness 5mm – 3000mm x Width 100mm – 3500mm
Steel Hexagonal bar: Hex 5mm – 105mm
Others 1.7035 have not specified size, pls contact our experienced sales team.
Processing
DIN W N-R 1.7035 round bar and flat sections can be cut to your required sizes. 1.7035 ground bar can also be supplied, providing a high quality tool steel precision ground tool steel bar to your required tolerances. DIN W N-R 1.7035 material is also available as Ground Flat Stock / Gauge Plate, in standard and nonstandard sizes.
