DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet

DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet
DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet

Large Image :  DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet

Product Details:
Place of Origin: China
Brand Name: BAOSTEEL BENSTEEL HBIS
Certification: SGS,BV,ISO
Model Number: DX51D+Z
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: 600 - 810 USD/Ton
Packaging Details: Standard export packing or as per customer’s request.
Delivery Time: 5 days
Payment Terms: L/C, T/T,Western Union
Supply Ability: 3000 TON per month

DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet

Description
Products: Galvanized Steel Coil Zinc Coating: Z40-275 G/m2
Coil ID: 508mm / 610mm Type: Coil / Strips
Technique: Hot Dipped Galvanized Surface: Regular Spangle / Zero Spangle
Width: 1000mm 1250mm 1500mm Service: Slit Cutting
Coil Weight: 5 - 10 Tons Loading Port: Shanghai, China
High Light:

Z60 hot dipped galvanized steel sheet in coils

,

DX51D hot dipped galvanized steel sheet in coils

,

3.0mm dc01 steel sheet



BAOSTEEL DX51D+Z Galvanized Steel Coil & Sheet Thickness 0.3 - 3.0mm Hot Dipped DC01 Steel Sheet

PRODUCTS SPECIFICAT



Product name Galvanized Steel Coil
Material ASTM A653, DX51D, SGCC
Zinc Coating 40-275g/m2
Thickness 0.2 - 3.0mm
Width 600-1500 mm
Coil ID 508/610mm
Coil weight 3-8 tons
Surface Structure Mini/Big Spangle / Zero Spangle
Surface Treatment Anti-Finger printing ,Chromated, oiled/ non-oiled
Package standard export package (Detailed picture is as follows)
Hardness soft (normal), hard, full hard(G300-G550)
HS code 721049
Country of origin China
Business type Supplier and manufacturer



European EN 10346 Standard Galvanized Steel Coil

Low carbon steel for cold forming (DX51D – DX54D)

  • DX51D is equivalent to Commercial Steel, curved and profiled
  • DX52D is equivalent to Forming Steel
  • DX53D is equivalent to Deep Drawing Steel
  • DX54D is equivalent to Extra Deep Drawing Steel

Structural Steels (S220GD – S350GD)

S220GD,S250GD,S280GD,S320GD,S350GD

Use structural steel for high load-bearing capacity, with a yield strength of 220-350

Characteristics of DX51D-brand steel

DX51D steel is highly ductile and flexible. It is used in complex dep-draught components and conforms to the BS EN 10346:2015 standard.

Classification: Ductile and flexible structural steel.

Product: Continuous hot-dip coated steel.

Chemical composition of DX51D steel, %

С

Si Mn P S Ti

≤0.18

≤0.5
≤1.2
≤0.12
≤0.045
≤0.03

Mechanical properties of DX51D steel

Nominal gauge, mm Minimum yield strength, ReH (MPa) Minimum elongation ratio, %
0.57-2.00 270-500 22

Analogues to DX51D steel

US (AISI, ASTM, ASME) ASTM A653/A653M Class B
Germany (DIN) 1.0322, 1.0335, DC01, DC04, DC04G1, DD11, DD13, St12, St14, St22, StW24, USt3, USt4



Application

Galvanised steel is widely used in a variety of products. It is often used in facade and roofing materials for the construction industry, including flue pipes, corrugated boards, guttering and all systems that are exposed to high levels of moisture. It is also used in agricultural equipment for granaries and barns.

Welding

DX51D steel products are suitable for conventional welding methods. With a greater mass of zinc coating, special welding methods are used.

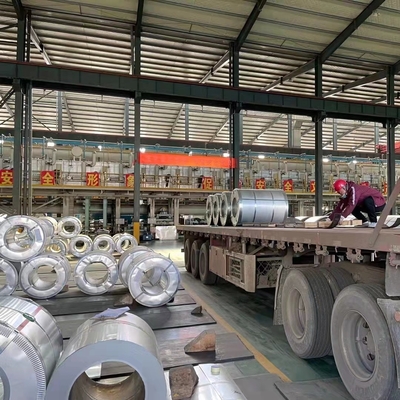

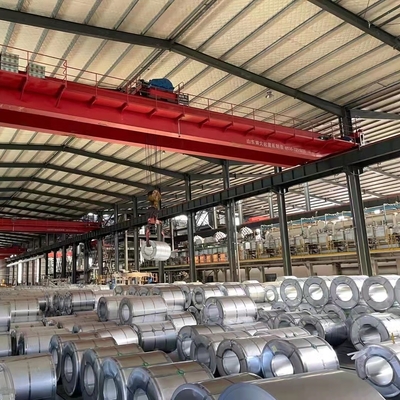

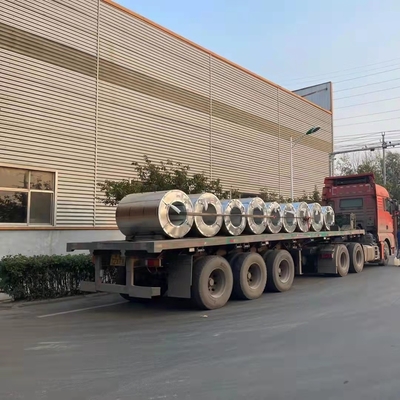

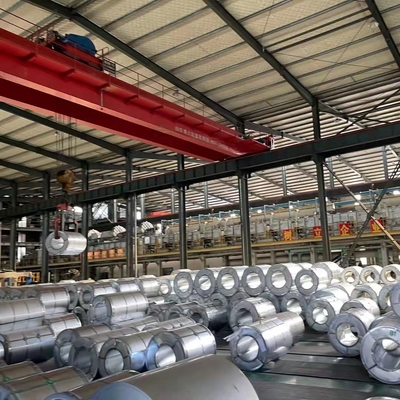

Products Show

DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet 0DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet 1DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet 2DX51D Z60 Hot Dipped Galvanized Steel Sheet In Coils 3.0mm DC01 Steel Sheet 3
