Product Details:
|
| Products: | Duplex Stainless Steel Sheet | Grade: | S32550 |
|---|---|---|---|
| Standard: | ASTM A240 | Thickness: | 0.8 - 30.0mm |
| Width: | 1000mm 1219mm | Brand: | TISCO BAOSTEEL POSCO |
| Service: | Cutting, Bending | Other Grade: | 301 304 304L 309S 310S 316L 316Ti 321 317L 347 410 420 430 2205 2507 904L 254SMO.etc |
| Surface: | 2B BA HL NO.1 | Tolerance: | Within 5% |
| High Light: | UNS S32550 Stainless Steel Plate,Super Duplex Plate 255 Alloy,UNS S32550 Duplex Stainless Steel Sheet |
||

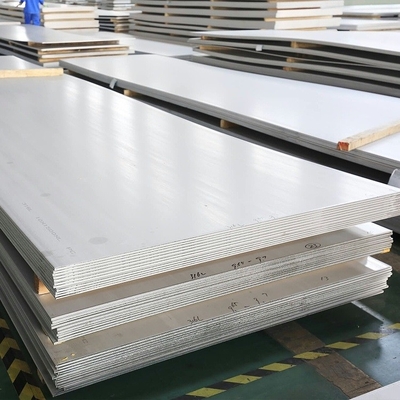

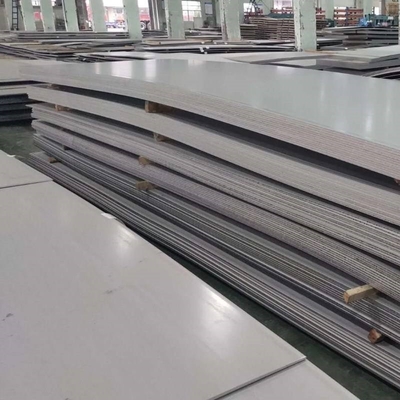

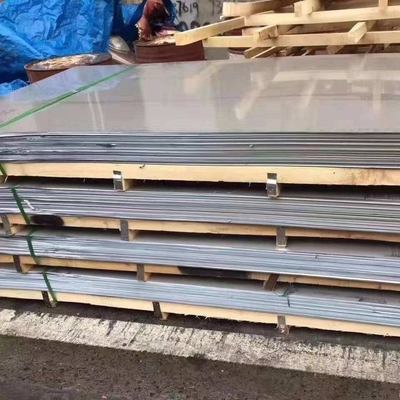

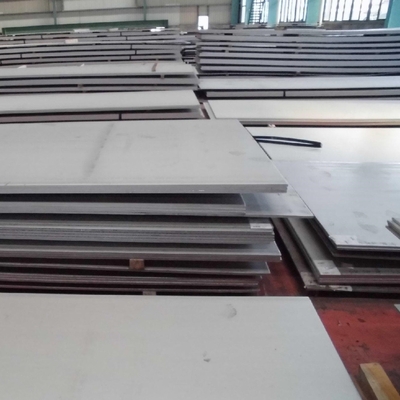

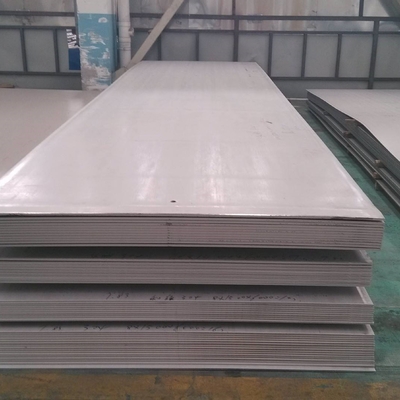

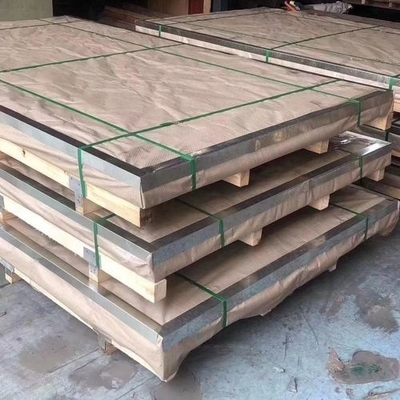

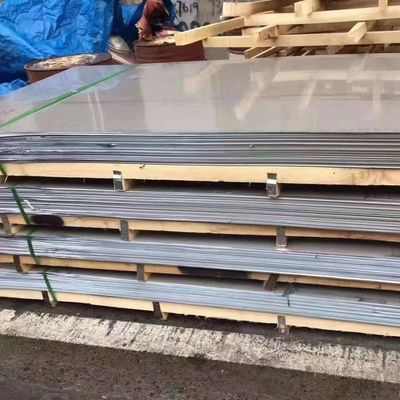

Super Duplex UNS S32550 Stainless Steel Plate Thickness 0.8 - 30.0mm SS Plate 255 Alloy
Products Specification
| Products | UNS S32550 Duplex stainless steel sheet |
| Thickness | 0.8 - 30.0mm |
| Width | 1000mm 1219mm 1500mm or as request |
| Standard | ASTM A240/240M-18 |
| Brand | TISCO BAOSTEEL POSCO |
| Service | Cutting , bending , surface finishing |
| Other Grade |
201 202 304 304L 304H 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 444,2205 2507 904L 254SMO 253MA N08020 C276 625 600 800 825 monel 400 500.etc |
| Standard Size | 1000*2000mm 1219*2438mm 1500*6000mm |
About S32550 duplex stainless steel
S32550 stainless steel is a duplex stainless steel formulated for primary forming into wrought products. Cited properties are appropriate for the annealed condition. S32550 is the UNS number for this material. Alloy 255 is the common industry name.
It has a moderately high thermal conductivity among wrought duplex stainless steels. In addition, it has a moderately high tensile strength and a moderately low ductility.
The characteristic features of high strength and corrosion resistance exhibited by the dual microstructure (austenite, ferrite) associated with duplex stainless steels are found in UNS S32550. It is similar in composition to the more widely used super duplex grade UNS S32760. UNS S32550 has a slightly higher copper level, lower nickel and no deliberate tungsten additions, and is normally supplied to achieve the UNS S32760 PREN requirement of 40.
Chemical Composition of UNS S32550
|
Grade |
C |
Cr |
Mn |
Mo |
N |
Ni |
P |
S |
Si |
Cu |
|
S32550 |
0.04 max |
24.0-27.0 |
1.5 max |
0.1-0.25 |
4.5-6.5 |
6.0-8.0 |
0.040 max |
0.030 max |
1.0 max |
1.5 |
Mechanical Properties of UNS S32550
|
Grade |
Tensile Strength(MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation |
Hardness Rockwell C (HR C) |
|
S32550 |
760 |
550 |
15 |
32 Max |
