Product Details:
|
| Grade: | ASTM A 500 Grade A | Size: | 20*20-500*500 |
|---|---|---|---|
| Type: | Seamless Welded | Length: | 6000mm |
| Alloy Or Not: | Non-alloy | Technique: | Hot Rolled,ERW,welded Steel Pipe |
| Thickness: | 1.5 - 30 Mm | Application: | Structure Pipe |

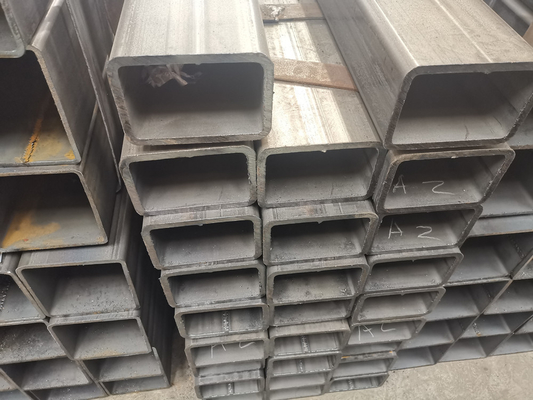

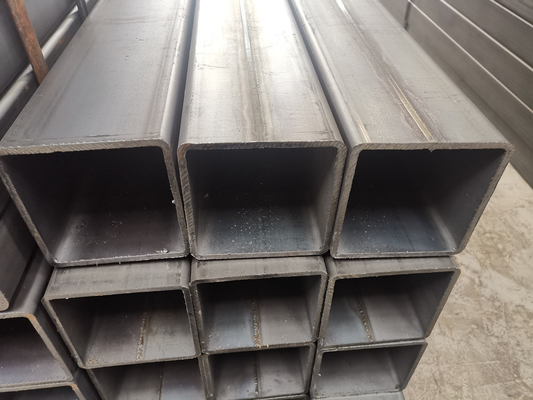

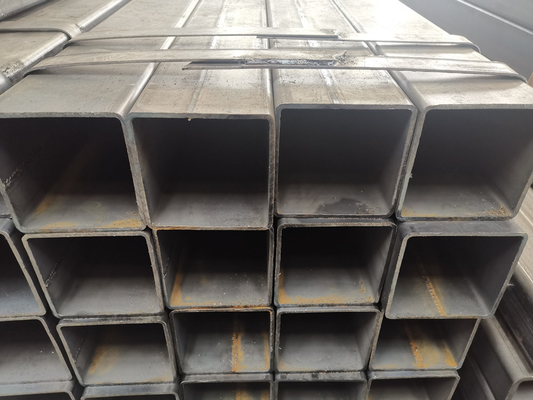

| Shape: | Square | Material: | Carbon Steel |
| Steel Pipe Type | ERW Steel Round pipe |
| Outside Dia(mm) | 10.3-1219mm |
| Wall Thickness(mm) | 1.5-30mm |
| Length | Random length:5-12m |
| Standard |
API5L , ASTM A106 Gr.B, ASTM A53 Gr.B, ASTMA179/A192/A213/A210/370WP91,WP11,WP22 GB5310-2009,GB3087-2008,GB6479-2013,GB9948-2013, GB/T8163-2008, GB8162-2008,GB/T17396-2009 |
| Material |
20#, A53B, A106B, API 5L ST37.0,ST35.8,St37.2,St35.4/8,St42,St45,St52,St52.4 STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49 |
| Surface | Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE,ect |
| Certificates | API5L ISO 9001:2008 TUV SGS BV etc |
| Packaging | Loose package, Packaged in bundles(3Ton Max) , bundled pipes with two slings at the both end for easy loading and discharging, End with Plastic caps or as per requirement |
| Application |
1. Fluid pipe 2. Power Plant 3. Structure pipe 5. Seamless pipe /tube for petroleum cracking 6. Conduit pipe 7. Scaffolding pipe pharmaceutical andship,building etc. |
Steel Grade
| Steel grade |
Chemical composition |
Mechanical properties |
||||||
| C% | Si% | Mn% | P% | S% |
Tensile strength (Mpa) |
Yield strength (Mpa) |
Elongation | |
| SPCC/SPHC | ≤0.12 | ≤0.025 | ≤0.50 | ≤0.035 | ≤0.025 | ≥270 | -- | ≥38 |
| ST12(DC01) | ≤0.10 | -- | ≤0.50 | ≤0.035 | ≤0.025 | ≥270 | 130-260 | ≥34 |
| ST37-2G/2 | ≤0.17 | -- | ≤1.00 | ≤0.035 | ≤0.030 | 360-510 | ≥215 | ≥20 |
| B340/590DP | ≤0.18 | ≤0.80 | ≤2.20 | ≤0.035 | ≤0.030 | ≥590 | 340-500 | ≥20 |
| B400/780DP | ≤0.20 | ≤0.80 | ≤2.50 | ≤0.035 | ≤0.030 | ≥780 | 400-590 | ≥16 |
| B340LA | ≤0.12 | -- | ≤1.00 | ≤0.030 | ≤0.030 | ≥440 | 240-460 | ≥26 |
| SS400 | ≤0.21 | ≤0.30 | ≤1.40 | ≤0.035 | ≤0.035 | 400-510 | ≥245 | ≥21 |
| Q195 | ≤0.12 | ≤0.30 | ≤0.50 | ≤0.035 | ≤0.040 | 315-430 | ≥195 | ≥33 |
| Q235B | 0.17-0.22 | ≤0.50 | ≤1.40 | ≤0.045 | ≤0.045 | 370-500 | ≥235 | ≥26 |
| Q345B | ≤0.20 | ≤0.30 | ≤1.70 | ≤0.035 | ≤0.035 | 470-630 | ≥345 | ≥20 |
| SAPH370 | ≤0.21 | ≤0.30 | ≤0.75 | ≤0.035 | ≤0.035 | ≥370 | ≥225 | ≥37 |
| SAPH400 | ≤0.21 | ≤0.30 | ≤1.20 | ≤0.030 | ≤0.025 | ≥400 | ≥255 | ≥36 |
| SAPH440 | ≤0.21 | ≤0.20 | ≤0.15 | ≤0.030 | ≤0.025 | ≥440 | ≥305 | ≥34 |
| Qste420TM | ≤0.12 | ≤0.50 | ≤1.50 | ≤0.030 | ≤0.025 | 480-620 | ≥420 | ≥21 |
| Qste460TM | ≤0.12 | ≤0.50 | ≤1.60 | ≤0.030 | ≤0.025 | 520-670 | ≥460 | ≥19 |
| BR1500HS/22MnB5 | 0.20-0.25 | 0.15-0.35 | 1.1-1.4 | ≤0.025 | ≤0.01 | 600-750 | ≥420 | ≥22 |
