Boiler 4" Sch 80 ASTM A106 Water Fire Seamless Carbon Steel Pipe

Boiler 4" Sch 80  ASTM A106 Water Fire Seamless Carbon Steel Pipe
Boiler 4" Sch 80  ASTM A106 Water Fire Seamless Carbon Steel Pipe Boiler 4" Sch 80  ASTM A106 Water Fire Seamless Carbon Steel Pipe Boiler 4" Sch 80  ASTM A106 Water Fire Seamless Carbon Steel Pipe

Large Image :  Boiler 4" Sch 80 ASTM A106 Water Fire Seamless Carbon Steel Pipe

Product Details:
Place of Origin: China
Brand Name: HYST
Certification: ISO 9001
Model Number: A106B
Payment & Shipping Terms:
Minimum Order Quantity: 3 Ton
Price: 1000 USD/Ton
Packaging Details: packing for export
Delivery Time: within 10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Ton/week

Boiler 4" Sch 80 ASTM A106 Water Fire Seamless Carbon Steel Pipe

Description
Products: Seamless Steel Pipe Grade: ASTM A106
Diameter: DN30 - DN400 Length: 8-10m Or As Request
Company: Manufacturer Other Grade: 1020 1045.etc
High Light:

astm a106 sch 80 seamless pipe

,

8m astm a106 seamless pipe

,

8m sch 80 seamless pipe

ASTM A106B Seamless Steel Pipe Carbon Steel Pipe for Boiler ASTM A106 Grade B Seel Pipe



Seamless carbon steel Pipe is made by hot rolling and piercing a solid billet through it to leave a hollow tube. The pipe is then shaped to size and heat treated to specification. Seamless pipe is very common and considered a higher grade pipe. Applications include high pressure vessels, nozzles and critical applications requiring highest material integrity. Seamless pipe is also pressure tested to ASTM / ASME specification. Grade "B" signifies "seamless". A106 B seamless pipe is easily weldable using various welding procedures. This makes it preferred choice for pressure piping associated with various Oil, Gas and Industrial application. Seamless pipe is also very common in petrochemical industries for carrying high pressure fluid. Trupply offers seamless pipe for convenient online shopping in various lengths. 22 ft pipe is considered SRL "single random length" and actual length can vary from 19' to 22'.

ASME SA106 GRB CS Welded Pipe Specification List

Standards ASTM, ASME and API, ANSI B 36.10
Craft Cold rolled and Cold drawn
ANSI Standard B1.20.
Grades ASTM A106 Grade A, Grade B, Grade C
Type ERW / Seamless / Fabricated / Welded
Size 1/2” NB to 36” NB
Length Minimum 3 Meters, Maximum 18 Meters
Thickness 3-12mm
Specialized in Large Diameter ASTM A106 Grade B Pipe
Schedules Schedule 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
ASME Standard B36.10M
Tolerance Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm
End Plain End, Beveled End, Treaded



Chemical composition:



ASME SA106 Elements %
C ≤ Mn P ≤ S ≤ Si ≥ Cr≤ Mo≤ Cu≤
SA106GrB steel pipe 0.30 0.29-1.06 0.035 0.035 0.10 0.4 0.15 0.4


Seamless steel pipe SA106GrB Mechanical Properties:



Tensile Strength, MPa Yield Strength, MPa Elongation, % Hardness, HB
415min 240min 30 min



Standards referred for making ASTM A106 pipes



References ASTM standards:

a. ASTM A530/ A530M This is the standard specification for the common requirements of the carbon, and alloy pipes.
b. E213 The standard for the Ultrasonic Examination test
c. E309 The standard for the Eddy Current examination test

d. E381 The standard for the plan of Macroetch test, for the steel products the steel bars, steel billets, blooms, and forging steels.
e. E570 The standard for the test plan for the flux leakage test of the ferromagnetic steel pipe and pipeline products.
f. Related ASME Standard:

g. ASME B 36.10M The nominal sizes standard specification for the welded and seamless steel pipe.
h. Related Military standard:
i. MIL-STD-129 The standard for the markings of shipment and storage.

j. MIL-STD-163 The standard for the storage and shipment for the steel forging products.
k. Related federal standard:
l. Fed. Std. No. 123 The standard for the civil agencies for the marking and shipments.

m. Fed. Std. No. 183 The standard specification for the continuous ID marking for steel products
n. Surface standard:
o. SSPC-SP 6 The standard specification for the surface.

Grade B Seamless Pipe

ASTM A106 standard specifications for the seamless steel pipe have three grades, that is ASTM A106 Gr. A, Grade. B and C, with the higher grade material, the strength performance is better.

Test Methods

The test methods for the ASTM A106 A, B, C are the flattening tests, hydrostatic test, nondestructive electric test, Ultrasonic test, eddy current test, flux leakage test, these test procedures shall be notified or discussed with client to confirm what kind of test will be applied.



Certificate:

ISO 9001-2008

Out Diameter: 10.3-914.4mm

Wall Thickness: 1.73-40mm

Length:

Random Length, Fixed Length, SRL, DRL



Steel Grade:



ASTM A53/A106: GR A, GR B, GR C

ASME SA106: GR.A, GR.B, GR.C

ASME SA192: SA192

ASME SA209M: T1, T1a

ASME SA210: GR.A-1, GR.C

ASME SA213: T2, T5, T9, T11, T12, T22

ASME SA335: P2, P5, P9, P11, P12, P22, P91 ASTM A333:Gr.1, Gr.3, Gr.4, Gr.6, Gr.7, Gr.8, Gr.9, Gr.10, Gr.11

ASTM A333:Gr.1, Gr.3, Gr.4, Gr.6, Gr.7, Gr.8, Gr.9, Gr.10, Gr.11

DIN17175:ST35.8, ST45.8, 15Mo3, 13CrMo44



Heat treatment:

Annealed: Bright annealed,Spheroidize annealed, Normalized, Stress relieved, Cold finished, Quenched and Tempered

Delivery Condition: BKS, NBK, BK, BKW, GBK(+A), NBK(+N), BK(+C)

Mill Test Certificate:

EN 10204/3.1B

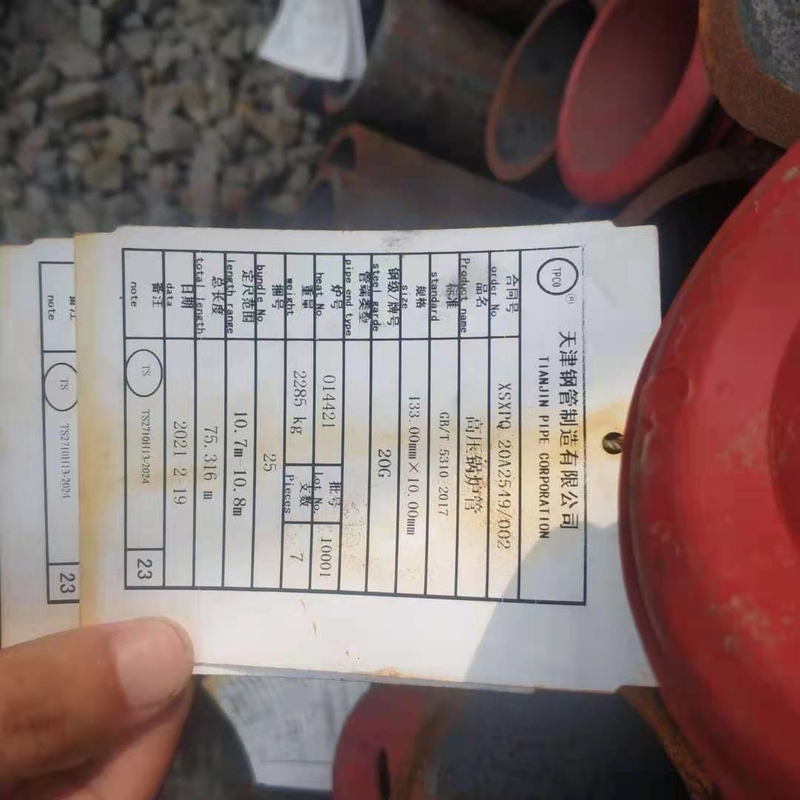

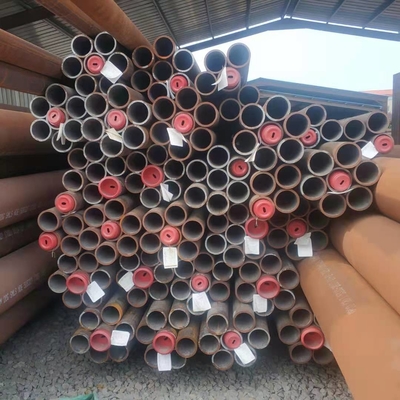

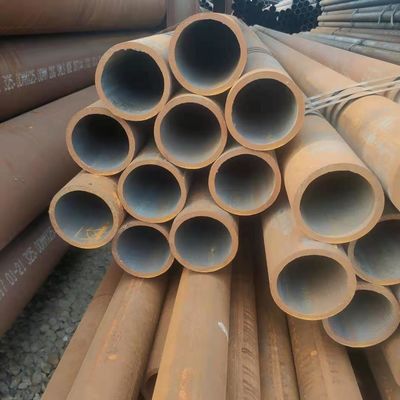

Boiler 4" Sch 80  ASTM A106 Water Fire Seamless Carbon Steel Pipe 0Boiler 4" Sch 80  ASTM A106 Water Fire Seamless Carbon Steel Pipe 1Boiler 4" Sch 80  ASTM A106 Water Fire Seamless Carbon Steel Pipe 2Boiler 4" Sch 80  ASTM A106 Water Fire Seamless Carbon Steel Pipe 3
