Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm

Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm
Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm
Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm

Large Image :  Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm

Product Details:
Place of Origin: China
Brand Name: DELTA
Certification: SGS ISO MTC
Model Number: 17-4PH / 630
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 4.85 USD/KG
Packaging Details: Wooden Pallet BOX
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 80000KGS

Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm

Description
Application: Construction,Decoration,Industry,Chemical Standard: DIN,ASTM
Steel Grade: 304 304L 316 316L 310S 321 630.etc Diameter: 6 - 508mm
Type: Seamless Thickness: 1-50mm
Length: 3000mm~6000mm Or Cutting As Request Shape: Round.square.Rectangle
Service: Cutting/ Polishing
High Light:

EN 17-4PH Ss Pipe Seamless

,

Grade 630 Ss Pipe Seamless

,

Length 3000mm Ss Pipe Seamless

Grade 630 Stainless Steel Seamless Pipe 17-4PH Stainless Steel pipe ASTM DIN EN SS Pipe



Detail informations of our 630 stainless steel pipe



Name Stainless Steel Pipe Grade 17-4PH / 630
Type Seamless Pipe Diameter DN 10 - DN300
Thickness SCH10 - XXS Standard ASTM GB JIS EN DIN
Length 6m random length Service Cutting



Grade Informations



17-4PH is a widely-used martensitic precipitation-hardening stainless steel with a high concentration of chromium and nickel. It has many favorable properties, including excellent strength, good corrosion resistance, and excellent mechanical properties up to 600 °F (316 °C).

The alloy also possesses good toughness when welded, while short low-temperature heat treatments reduce warping and scaling. Additionally, 17-4PH is easy to machine and fabricate.



Thanks to the beneficial properties, 17-4PH finds use in various industries. Typical parts include mechanical seals, oil patch, and pump shafts.

Furthermore, the alloy also finds use in the aerospace industry, petroleum industry, and chemical industry, food processing equipment, paper and pulp industry, nuclear waste processing and storage, and general metalworking.



Stainless Steel 17-4PH Chemical Composition



Element Min (%) Max (%)
Carbon, C 0.07
Manganese, Mn 1
Silicon, Si 1
Sulfur, S 0.03
Phosphorus, P 0.04
Chromium, Cr 15 17.5
Niobium + Tantalum, Nb + Ta 0.15 0.45
Nickel, Ni 3.0 5.0
Copper, Cu 3.0 5.0
Iron, Fe *Balance



Stainless Steel 17-4PH Mechanical Properties



Property Imperial Metric
Ultimate Tensile Strength 23,300 psi 160 MPa
Yield Strength (0.02%) 16,680 psi 115 MPa
Elongation (% in 2’’) 5% 5%
Rockwell Hardness C 35 35



Application of 17-4PH stainless steel

  • Jet engine stator vanes
  • Surgical instruments
  • Aerospace components
  • Components for the chemical, petrochemical and food processing industries

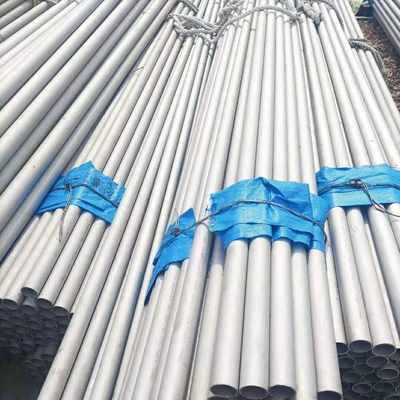

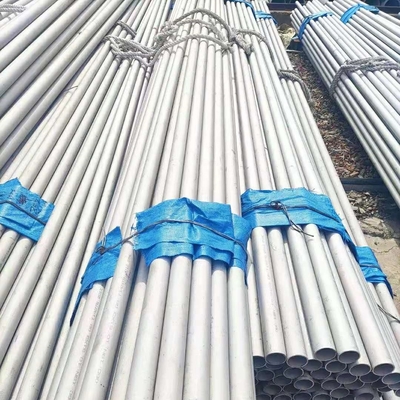

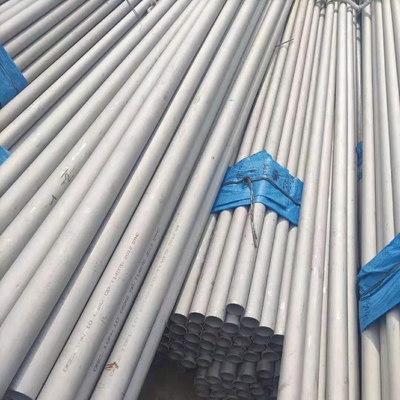

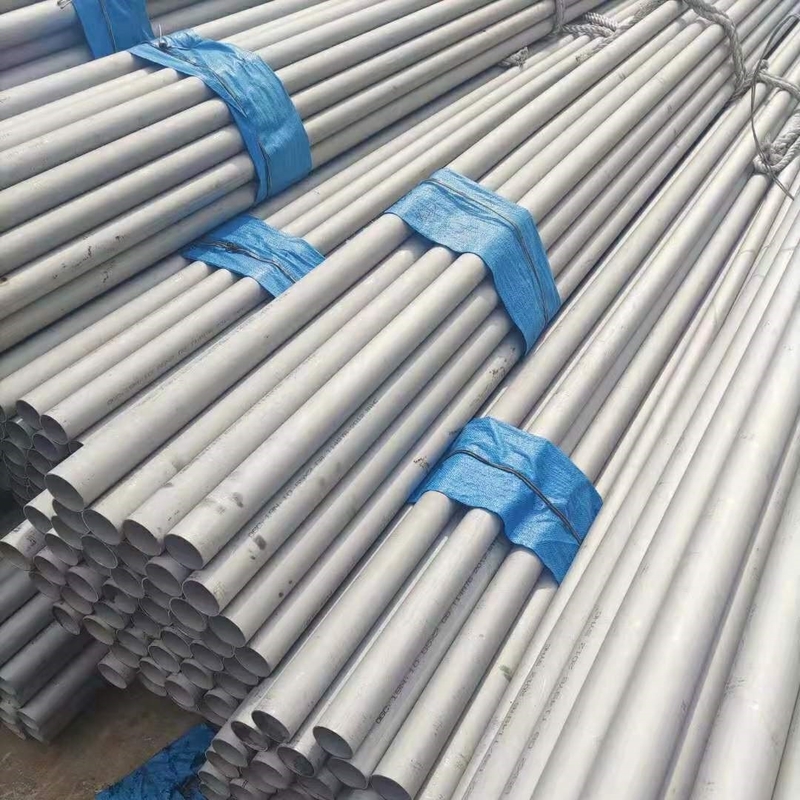

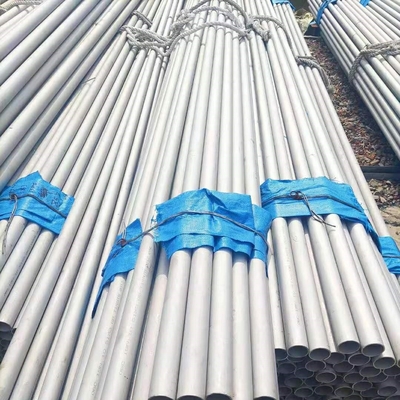

Products' Photos



Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm 0Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm 1Grade 630 17-4PH ASTM DIN EN Ss Pipe Seamless Length 3000mm 2
