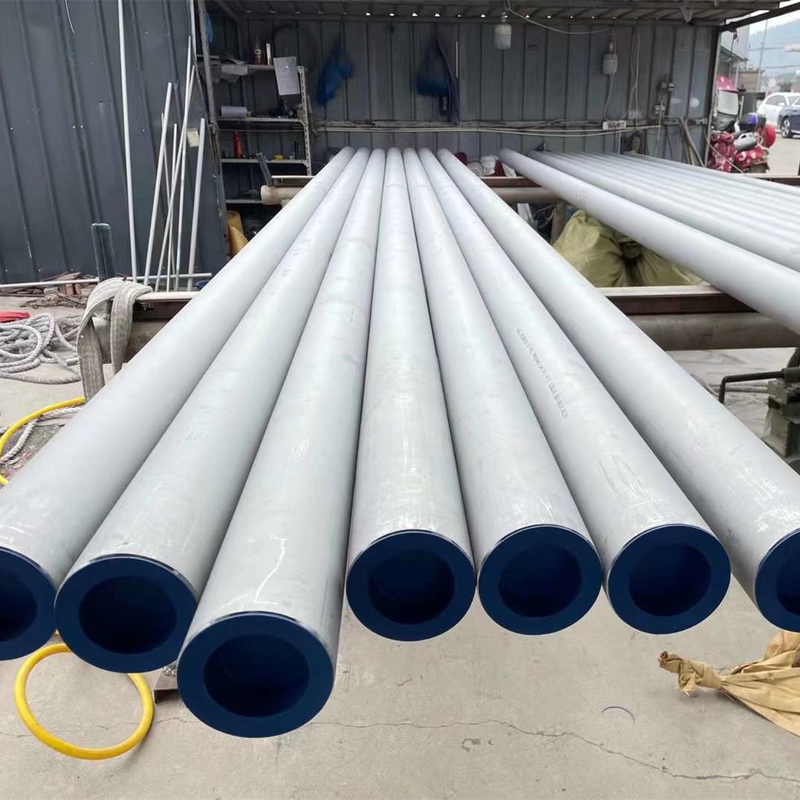

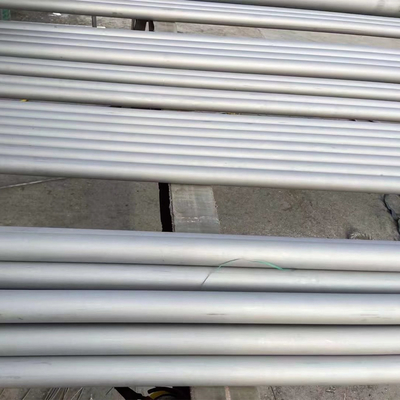

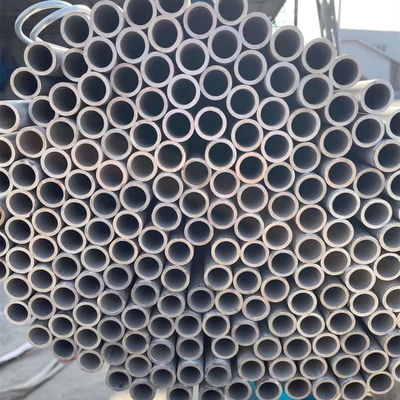

SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing

SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing

Large Image :  SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing

Product Details:
Place of Origin: China
Brand Name: BAO STEEL MITTEL TISCO
Certification: SGS ISO MTC
Model Number: UNS N06022
Payment & Shipping Terms:
Minimum Order Quantity: 50KGS
Price: 25.8 USD/KG
Packaging Details: Wooden Pallet BOX
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 500000KGS

SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing

Description
Application: Construction,Decoration,Industry,boiler,Chemical Standard: DIN,ASTM,JIS,AISI
Steel Grade: 400 Series Type: Seamless
Welding Line Type: Seamless Thickness: 1mm-20mm
Length: 3000mm~6000mm Shape: Round Pipe Tube
Outer Diameter: 6-630mm Technique: Cold Drawn
Surface: Annealing,pickling,polishing,600 Grit Polished
High Light:

Annealing Seamless Pipe

,

20mm Stainless Steel Seamless Pipe

,

Pickling Seamless Pipe

Pipe SMLS ASTM SB622 UNS N06022 (C22) SCH160 Annealing,Pickling Seamless Pipe

Products Description
The similar brand
UNS
W.Nr
Trademark
N06022
2.4602
Alloy C22
Alloy C-22 Chemical composition
%
Ni
Cr
Mo
Fe
W
Co
C
Mn
Si
min
balance
20.0
12.5
2.0
2.5




max

22.5
14.5
6.0
3.5
2.5
0.015
0.50
0.08
Physical properties
Density
8.94 g/cm3
Melting range
1325-1370℃

Executive standard


Form
ASTM
Rod
B 574
Plate, sheet and strip
B 575
Seamless pipe and tube
B 622
Welded pipe / tube
B 619, B 775/B 626, B 751
Welded tube
B 626, B 751
Welding fitting
B 366
Forged flange and fitting
B 462
Billet and bar for reforging
B 472
Forging
B 564
The minimum value of the mechanical properties of an alloy at room temperature
Alloys and states
Tensile strength
Yield strength
Extend rate
RM N/MM2
RP0.2N/MM2
A5%
Alloy C-22
≥690
≥310
≥40
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 0
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 1

Product Feature

Alloy C-22 is a versatile Ni-Cr-Mo-W alloy with better comprehensive corrosion resistance performance than other Ni-Cr-Mo alloys, including Alloy C-276, Alloy C-4 and Alloy 625.

Alloy C-22 has outstanding resistance to pitting, crevice corrosion and stress corrosion cracking. It has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chloride ions.

It also offers optimum resistance to environments where reducing and oxidizing conditions are encountered in process streams. So it can be used where “upset” conditions are likely to occur or in multi-purpose plants.

Alloy C-22 has exceptional resistance to a wide variety of chemical process environments, including strong oxidizers such as ferric and cupric chlorides, chlorine, hot contaminated solutions (organic and inorganic), formic and acetic acids, acetic anhydride, and seawater and brine solutions.

It resists the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in the as-welded condition.

Metallographic structure

Alloy C-22 has a face-centered cubic lattice structure


SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 2
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 3

Scope of application

Alloyc-22 alloy has been widely used in chemical industry and petrochemical industry, such as in components contacting with hydrides and catalytic systems. This material is especially suitable for high temperature, mixed with impurities of inorganic and organic acids (such as formic acid and acetic acid), seawater corrosion environment.

Other applications 1. Acetic acid / acetic anhydride 2. Acid leaching 3. Cellophane manufacturing 4. Chlorination system 5. Complex mixed acids 6. Roller of galvanizing bath 7. Expansion bellows 8. Flue gas scrubber system 9. Geothermal well 10. Incineration washer system 11. Nuclear fuel regeneration 12. Pesticide production 13. Phosphoric acid production

Corrosion resistance

Alloyc-22 alloy is suitable for various chemical process industries containing oxidizing and reducing media. The higher content of Mo and Cr makes the alloy resistant to chloride ion attack, and the tungsten element further improves its corrosion resistance.

Alloyc-22 is one of the only materials that can resist the corrosion of wet chlorine, hypochlorite and chlorine dioxide solution. The alloy has remarkable corrosion resistance to high concentration of chloride solution (such as ferric chloride and copper chloride).
Packing & Delivery
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 4SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 5SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 6
What products can we provide?
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 7

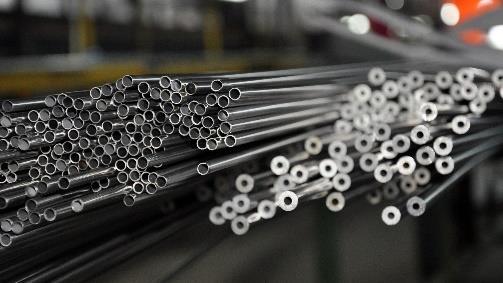

1. Stainless Steel Seamless Tube
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 8

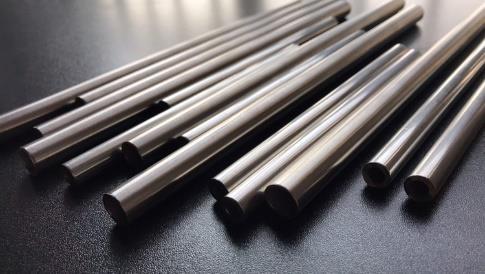

2. Stainless Steel Seamless Pipe
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 9

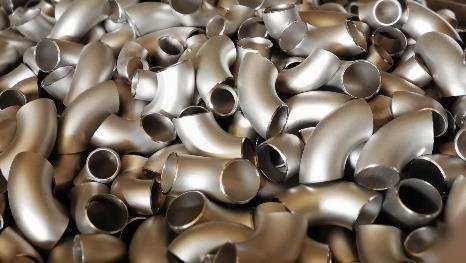

3. Pipe Fitting
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 10

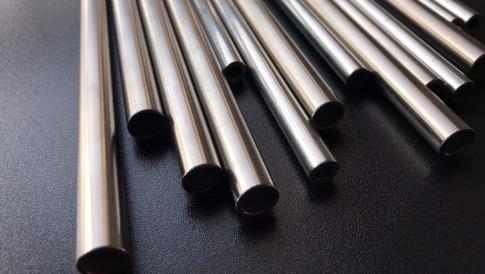

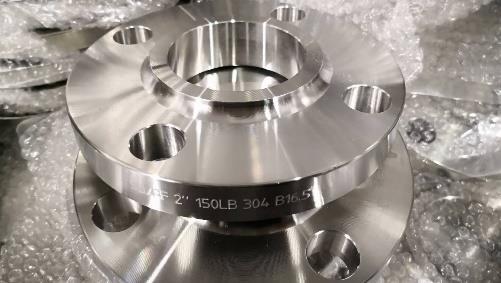

4. Flange
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 11
5. Nickel Alloy
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 12

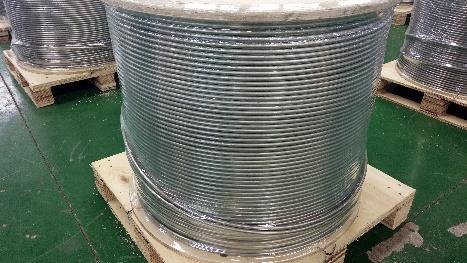

6. Coiled Tubing

What materials can we provide?

Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L Duplex steel: 31803,32205,32750,32760 Nickel Alloy

Why you choose MTSCO?

We have a strong company strength.
Production Capacity, Production Machinery, Testing Machinery, Production Flow have passed SGS certification, contact me to view the detailed certification report.
SMLS ASTM 20mm Pickling Stainless Steel Seamless Pipe Round Annealing 13
