310S ASTM A276 Pickled Polish Stainless U Channel

310S ASTM A276 Pickled Polish Stainless U Channel
310S ASTM A276 Pickled Polish Stainless U Channel 310S ASTM A276 Pickled Polish Stainless U Channel 310S ASTM A276 Pickled Polish Stainless U Channel

Large Image :  310S ASTM A276 Pickled Polish Stainless U Channel

Product Details:
Place of Origin: China
Brand Name: Mittel
Certification: SGS ISO MTC
Model Number: 310s
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 4.65USD/KG
Packaging Details: Wooden Pallet BOX
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 80000KGS

310S ASTM A276 Pickled Polish Stainless U Channel

Description
Grade: Stainless Steel Shape: U Channel
Standard: ASTM,DIN,AISI Application: Construction,Supporting System,Steel Structure Building,Support/Framing/Fixing Work
Product Name: Stainless Strut Steel U Channel Technique: Hot Rolled Steel Channel
Length: 5.8M-12M Surface: Pickled Polish NO.1
Loading Port: Shanghai
High Light:

Pickled Polish Stainless U Channel

,

310S Stainless U Channel

,

ASTM A276 Stainless U Channel

310S Stainless Steel U Channel SS 310S Channel Bar ASTM A276 Pickled Polish

AISI 310 Stainless Steel (UNS S31000)

AISI 310 stainless steel is a high chromium nickel austenitic stainless steel with a high carbon content. It has excellent mechanical properties, high temperature oxidation resistance and heat resistance.
Type 310S is a low carbon version of SS 310, 310H is to obtain the best creep strength and creep rupture strength. 310Cb is added with niobium to maximize the stability of carbides, prevent sensitization, and improve weldability and high temperature creep strength.

310 Stainless Steel Properties

The following tables give AISI 310 stainless steel properties and specifications (datasheet) including chemical composition, physical and mechanical properties, heat treatment, corrosion resistance, machinability and machining, welding, etc.

Chemical Composition

Type 310 grade stainless steel chemical composition is listed in the following table.

Type 310 Stainless Steel Chemical Composition, %
ASTM StandardAISI (UNS)C, ≤Si, ≤Mn, ≤P, ≤S, ≤CrNiOther Elements
ASTM A240/A240M;
ASTM A276/A276M;
ASTM A314;
ASTM A167;
ASTM A479/A479M
ASTM A580/A580M;
ASTM A473;
ASTM A959
SAE J405;
310 (UNS S31000)0.251.502.000.0450.0324.0-26.019.0-22.0
310S (UNS S31008)0.081.502.000.0450.0324.0-26.019.0-22.0
310H (UNS S31009)0.04-0.100.75 (1.00)2.000.0450.0324.0-26.019.0-22.0
310Cb (UNS S31040)0.081.52.000.0450.0324.0-26.019.0-22.0Nb, 10×C-1.10
310HCb (UNS S31041)0.04-0.100.752.000.0450.0324.0-26.019.0-22.0Nb, 10×C-1.10

Physical Properties

Type 310 grade stainless steel physical properties are listed in the table below such as density, melting point, specific heat, electrical resistivity, elastic modulus (modulus of elasticity), thermal conductivity, and coefficient of thermal expansion (CTE).
Notes:

  • 10-6·K-1 = 10-6/K
  • 1 Ω·mm²/m = 1 μΩ·m
  • 1 g/cm3 = 1 kg/dm3 = 1000 kg/m3
  • 1 GPa = 1 kN/mm2
  • 1 MPa = 1 N/mm2
Type 310 Physical Properties
Density, g/cm3 (lb/in3)8.0 (0.29)
Melting point, °C (°F)1400-1450 (2550-2650)
Specific heat capacity, J/kg·K (Btu/lb ·°F)500 (0.12) at 20 °C (68 °F)
Electrical resistivity, μΩ·m0.78 at 20 °C (68 °F)
Magnetic permeability1.02 (Approximate)
Elastic modulus (Modulus of Elasticity), Gpa (106 psi)200 (29.0)
Thermal conductivity, W/m·K (Btu/ft · h ·°F)14.2 (8.2) at 100 °C (212 °F)
18.7 (10.8) at 500 °C (932 °F)
Coefficient of thermal expansion (CTE), 10-6/K (μin./in. ·°F)15.9 (8.8) at 0-100 ℃ (32-212 °F)
16.2 (9.0) at 0-315 ℃ (32-600 °F)
17.0 (9.4) at 0-538 ℃ (32-1000 °F)

AISI 310 Grade Stainless Steel Mechanical Properties

AISI 310 stainless steel mechanical properties are given in the datasheet below including tensile strength, yield strength, elongation, reduction in area, Brinell and Rockwell hardness, etc.

ASTM A240 Type 310 Mechanical Properties
ASTMAISI (UNS)Tensile Strength, Mpa (ksi), ≥0.2% Yield Strength, Mpa (ksi), ≥Elongation in 2 in. (50 mm), %, ≥Brinell Hardness, HB, ≤Rockwell Hardness, HRB, ≤
ASTM A240/A240M310S, 310H, 310Cb, 310HCb515 (75)205 (30)4021795
ASTM A276 Type 310 Mechanical Properties
ASTMAISITensile Strength, Mpa (ksi), ≥0.2% Yield Strength, Mpa (ksi), ≥Elongation in 2 in. (50 mm), %, ≥Reduction of Area, %, ≥Conditions
ASTM A276/A276M310, 310S, 310Cb515 (75)205 (30)4050Annealed, Hot finished, All dia.
620 (90)310 (45)3040Annealed, Cold finished, Dia ≤ 1/2 in (12.7mm)
515 (75)205 (30)3040Annealed, Cold finished, Dia > 1/2 in (12.7mm)
ASTM A473 Type 310 Mechanical Properties
ASTMAISI (UNS)Tensile Strength, Mpa (ksi), ≥0.2% Yield Strength, Mpa (ksi), ≥Elongation in 2 in. (50 mm), %, ≥Reduction of Area, %, ≥Conditions
ASTM A473/A473M310, 310S515 (75)205 (30)4050Annealed
ASTM A479 Type 310 Mechanical Properties
ASTMAISI (UNS)Tensile Strength, Mpa (ksi), ≥0.2% Yield Strength, Mpa (ksi), ≥Elongation in 2 in. (50 mm), %, ≥Reduction of Area, %, ≥Conditions
ASTM A479/A479M310S, 310H, 310Cb,
302, 304, 304H, 304LN, ER308, E309S, 309H, 309Cb,
316, 316H, 316Ti, 316Cb, 316LN,
317, 321, 321H, 347, 347H,
348, 348H
515 (75)205 (30)3040Annealed
ASTM A580 Type 310 Mechanical Properties
ASTMAISI (UNS)Tensile Strength, Mpa (ksi), ≥0.2% Yield Strength, Mpa (ksi), ≥Elongation in 2 in. (50 mm), %, ≥Reduction of Area, %, ≥Conditions
ASTM A580/A580M310, 310S, 302, 302B, 304, 305, 308, 309, 309S, 309Cb, 314, 316, 317, 321, 347, 348620 (90)310 (45)3040Annealed, cold finished
515 (75)205 (30)3550Annealed

Type 310 Stainless Steel Heat Resistance

Maximum service temperatures in air
AISI typeIntermittent serviceContinuous service
3101035 °C (1895 °F)1150 °C (2100 °F)

AISI 310 Stainless Steel Heat Treatment

The following contents give AISI 310 grade stainless steel heat treatment temperature of including annealing, forging, etc.

  • Recommended annealing temperature for 310 & 310S wrought stainless steel: 1040 °C (1900 °F).
  • Typical forging temperature range: 980-1175 °C (1800-2145 °F)

Applications

Type 310 stainless steel is used in various industrial furnaces, steam boilers and petroleum system parts and thermocouple protection tubes. Examples include fire box sheets, furnace linings, boiler baffles, thermocouple wells, aircraft cabin heaters, and jet engine burner liners.

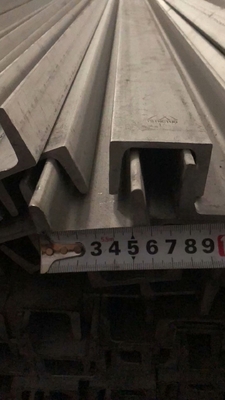

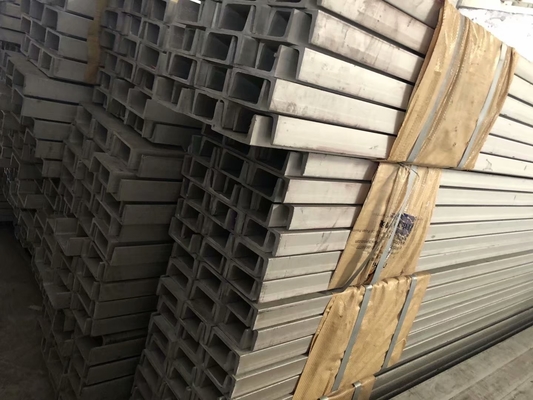

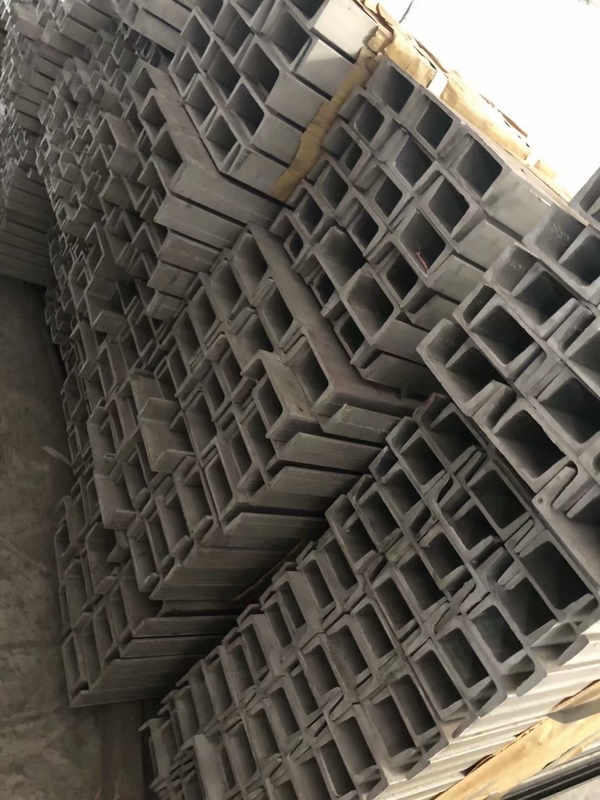

310S ASTM A276 Pickled Polish Stainless U Channel 0310S ASTM A276 Pickled Polish Stainless U Channel 1310S ASTM A276 Pickled Polish Stainless U Channel 2
