8K 50mm Cold Rolled Hastelloy C276 Sheet

8K 50mm Cold Rolled Hastelloy C276 Sheet
8K 50mm Cold Rolled Hastelloy C276 Sheet 8K 50mm Cold Rolled Hastelloy C276 Sheet 8K 50mm Cold Rolled Hastelloy C276 Sheet

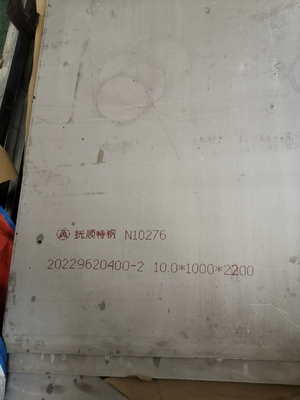

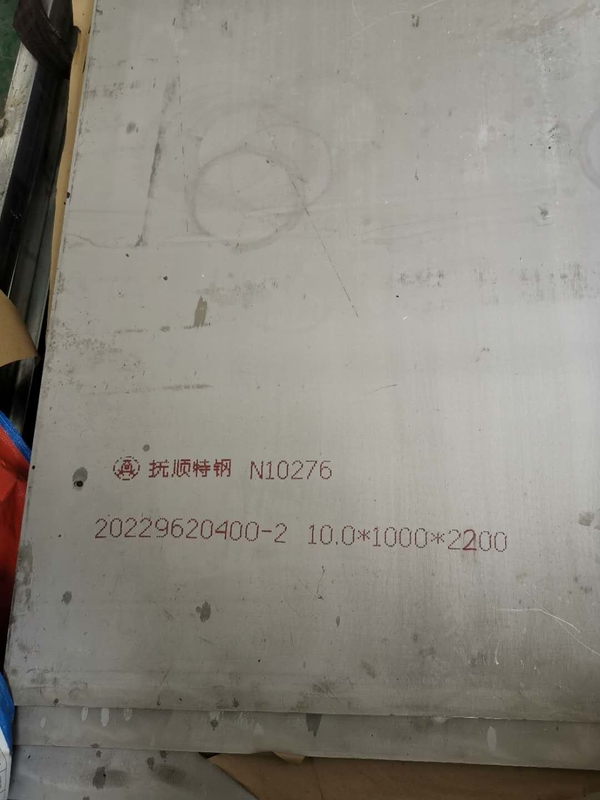

Large Image :  8K 50mm Cold Rolled Hastelloy C276 Sheet

Product Details:
Place of Origin: China
Brand Name: BAO STEEL MITTEL TISCO
Certification: SGS ISO MTC
Model Number: Hastelloy C276
Payment & Shipping Terms:
Minimum Order Quantity: 50KGS
Price: 58USD/KG
Packaging Details: Wooden Pallet BOX
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 80000KGS

8K 50mm Cold Rolled Hastelloy C276 Sheet

Description
Grade: Nickel Base Alloy,Hastelloy C276 Application: Industry,used In Chemical
Type: Nickel Plate Elongation (≥ %): 40%
Ni (min): Balance Product Name: N10276(C276) Nickel Metal Sheet
Standard: ASTM Material: Hastelloy C22,NO10276
Thickness: 1mm~30mm
High Light:

Cold Rolled Hastelloy C276 Sheet

,

8K Hastelloy C276 Sheet

,

50mm Hastelloy C276 Sheet


Hastelloy C276 Sheet Alloy c 276 Hastelloy Cold Rolled Sheet Hastelloy C 276 Composition


Product Name
nickel alloy plate
Production Process
Cold Drawn,Cold Rolled,Bright Anneal etc
Size
5.5-110mm(Hot rolled), 2-50mm(Cold drawn),110-500mm(Forged)
Standard
ASTM EN DIN GB ISO JIS
Tolerance
+/-0.05 ~+/0.02
Surface
Pickling,Bright;
No.1,2B,No.4,BA,8K
Satin,Brush,Hairline,Mirror,Polished
180 grits,320 grits,400 grits,600 grits,800 grits polished
Application
Constructions feilds and ship building industries Petroleum,Chemical industries,War and electiciy industries. Food processing and medical industries. Boiler heat cxchangers,Machinery and hardware feilds.
Materials
Titanium alloy:TI-6AL-4V,TI-5AL-2.5SN,TA1,TA2,TA3,TA4,TA0,TC4
300series:301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330,
400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446,
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D,
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L
Others: 153Ma,254SMo,253Ma,654SMo,F15,Invar36,1J22,N4,N6 etc
Alloy : Alloy 20/28/31;
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N;
Haynes: Haynes 230/556/188;
Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20;
Incoloy: Incoloy 800/
800H/800HT/825/925/926;
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
Monel: Monel 400/K500
Nitronic: Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90 ;




Brand%NiCrFeMoWCoCMnSiSPV
HastelloyMinBal15.04.015.03.0      0.1
C-276Max 16.57.017.04.52.50.011.00.080.0010.0150.3

Simple Instroduce of Hastelloy C276

Hastelloy C-276 Is a nickel-containing tungsten - chromium - molybdenum alloy, very low carbon content
of silicon is considered to be a panacea corrosion-resistant alloys. The main moisture chlorine, various
oxidizing chloride, chloride salts, sulfuric acid and oxidizing salt, in a low temperature and medium temperature hydrochloric acid has very good corrosion resistance. Thus, nearly three decades, corrosion in harsh environments, such as chemical, petrochemical, flue gas desulfurization, pulp and paper, environmental protection and other industrial fields has a very wide range of applications.


Corrosion properties

The alloy has the following characteristics: 1.two in oxidizing and reducing atmosphere state, for most corrosive media has excellent corrosion resistance. 2. has excellent resistance to pitting, crevice corrosion and stress corrosion. Higher Mo, Cr content of the alloy corrosion resistant to chlorine ions, W elements to further improve the corrosion resistance. Meanwhile, Hastelloy C-276 alloy is one of only a few resistant to moisture chlorine, hypochlorite and chlorine dioxide-corrosive material, high concentrations of chloride salts such as ferric chloride and copper chloride have significant corrosion resistance. Applicable to various concentrations of sulfuric acid solution, it is one of the few materials can be used in hot concentrated sulfuric acid solution.

Hastelloy C276 Physical properties

Densicity: 8.90g/cm3
Tensile Strength: ≥730Mpa
Elongation: ≥40%


Hastelloy C276 Welding and heat treatment

C-276 alloy welding performance and common austenitic stainless steel is similar to using a welding method for welding C-276 before, we must take measures to make the corrosion resistance of the weld and heat affected zone the smallest decline, such as tungsten gas shielded arc welding (GTAW), gas metal arc welding (GMAW), submerged arc welding or some other can make the weld and heat affected zone the smallest decline in corrosion resistance welding method. But for such as oxy-acetylene welding material, it is likely to increase the weld and heat affected zone carbon or silicon content of the welding method is not suitable for use in.
About welded joints in the form of choice, you can reference the successful experience of the ASME Boiler and Pressure Vessel Code for Hastelloy C-276 alloy welded joints.


Welding groove machining method is preferable, but will bring machining hardened, so at the groove machined polished before welding is necessary.Welding heat input to the adoption of appropriate speed to prevent heat cracks.In most corrosive environment, Hastelloy C-276 alloy can be welded in the form of applications. But in a very harsh environment, C-276 material and welding parts to solution heat treatment in order to obtain the best corrosion resistance.Hastelloy C-276 alloy welding can choose their own material or filler metal for welding. When such request to add certain ingredients in the weld Hastelloy C-276 alloy, like other nickel-based alloy or stainless steel, and these welds will be exposed to the corrosive environment, then, welding rod or wire used is required and base metal corrosion resistance comparable performance.Hastelloy C-276 alloy material solution heat treatment consists of two processes: (1) heating at 1040 ℃ ~ 1150 ℃; (2) within two minutes of rapid cooling to the black state (about 400 ℃), the material thus treated It has good corrosion resistance. Therefore, only the Hastelloy C-276 alloy stress-relief heat treatment is ineffective. To clean up the oil before the heat treatment of the alloy surface, which may produce all the dirt of carbon during the heat treatment.Hastelloy C-276 alloy surface during welding or heat treatment will produce oxides of Cr in the alloy decreased, affecting corrosion resistance, so its surface cleaning. You can use stainless steel wire brush or a grinding wheel, then dipped in an appropriate.


8K 50mm Cold Rolled Hastelloy C276 Sheet 08K 50mm Cold Rolled Hastelloy C276 Sheet 1
