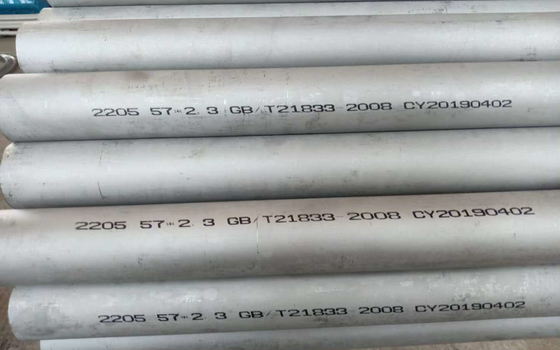

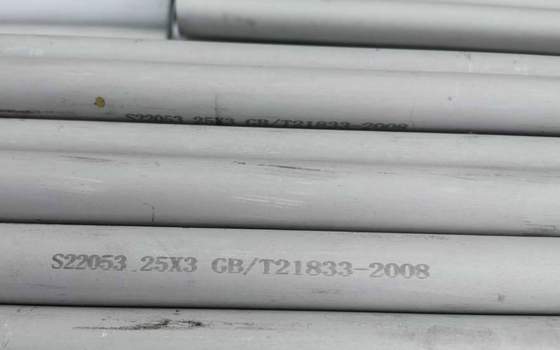

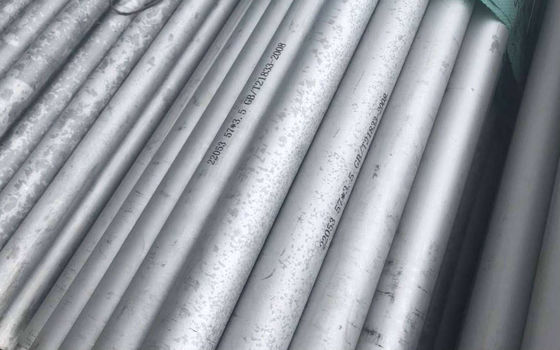

Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube

Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube
Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube
Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube

Large Image :  Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube

Product Details:
Place of Origin: China
Brand Name: Mittel
Certification: SGS ISO MTC
Model Number: S32205 S22053
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 4.85 USD/KG
Packaging Details: Wooden Pallet BOX
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 80000KGS

Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube

Description
Application: Industry,boiler,Chemical Standard: GB,DIN,ASTM,JIS,AISI
Steel Grade: Duplex Stainless Steel Type: Seamless
Thickness: 1-95mm Length: 3000mm~6000mm,Customer Request
Shape: Round.square.Rectangle Outer Diameter: 6-762mm
Technique: Cold Drawn
High Light:

2205 seamless stainless steel pipe

,

2205 Stainless Steel Seamless Tube

,

95mm Stainless Steel Seamless Tube

Duplex S32205/SAF2205 PIPE and TUBES,ELBOW,TEE,REDUCER,FLANGEs
Duple Stainless Steel Seamless Pipe ASTM A790 UNS S332205.
Duplex Stainless Steel Seamless Tube ASTM A789/ASME SA789 UNS S32205.
Duplex Stainless Steel Seamless Tube EN10216-5 EN1.4462.
Duplex Elbow,TEE,Reducer,Stub End ASTM A815 WPS32205.
Duplex FLANGE Slip on(SO),Weldneck(WN),Blind ASTM A182 F51.



Specification:

SEAMLESS PIPE & TUBE: OD:10.3mm--530mm,THK:1mm--25mm

Butt-welding Elbow/Tee/Reducer/Cap:3/8"--48" THK:SCH 10S---SCH 160

Process Method: Cold Drawn/Cold Rolled

Surface Finish:Annealed/Manual polished/Mechanical Polished

Delivery Condition:Solution Annealed,Bright Annealed,Pickled with Beveled End or Plain End.

Packing: Un-woven-knittings bags or Wooden cases or as your requirments.

Testing: Eddy current / hydrostatic/ Ultrasonic/ Intergranular Corrosion available, or according to customers' request

Certificate:

ISO9001:2000-Lloyds,ISO9001:2008-TUV,PED97/23/EC & AD2000-W0-TUV.GOST,RTN,

Shipbuilding Certificates(ABS,CCS,KR,GL,NK,DNV,LR and BV) etc

Main Material:

Hastelloy:Hastelloy/B/C/G.
Nickel Alloy:Alloy200/201,Monel400,lnconel600,Inconel625,lncoloy800/H/HT, Alloy825,Alloy20/28,Incoloy926,Incoloy925,Incoloy801 etc.

Duplex/Super Duplex:S31803,S32750,S32760,S31500.
Stainless Steel:304/L/H,321/H,316/L,317/L,316Ti,309S,316Lmod,317Lmod,310S,347H,904L,S31254,253Ma.

*Other Material Also Available After Negotiation.

ASTM / UNS: 304, 304L, 316, 316L, 321, 316Ti, 304H, 321H, 316H, 347, 347H, 317, 317L, 310(S), 314, 316LMod, duplex S31803 / F51,S32205, Superduplex S32750 and S32760 / F53 / F55, 904L, 6Mo / S31254 / F44/ 254SMO.

DIN /EN: 1.4301, 1.4306, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4948, 1.4878, 1.4919, 1.4550, 1.4449, 1.4438, 1.4828, 1.4841, 1.4435, 1.4436, 1.4006, 1.4749, 1.4462, 1.4410, 1.4501, 1.4539, 1.4547,
1.4529.



Chemical Composition of Duplex Steel S31803 Pipes
Grade C Mn Si P S Cr Mo Ni N Fe
S31803 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min



Mechanical Properties of Duplex S31803 / 1.4462 Pipes
Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S31803 7.805 0.285 1420 – 1465 2588 – 2669



Grade: 31803, 2205, 32750, 2507
Process method: Cold drawn, cold pilgered
Surface finish: Annealed / manual polished / mechanical polished
Standards: ASTM A789/790
Size: O. D.: 6mm to 426mm, W. T.: 0.6mm to 40mm,
Delivery conditions: Annealed and pickled
Packing: Wooden Cases



Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube 0Duplex 2205 ASME SA 789/A789 Stainless Steel Seamless Tube s32205 Duplex Steel Tube 1
