Product Details:
|
| Steel Grade: | Duplex Stainless Steel | Type: | Welded |
|---|---|---|---|
| Welding Line Type: | ERW | Standard: | EN,ASTM,AISI,DIN,JIS |
| Application: | Construction,Industry | Shape: | Round.square.Rectangle |
| Surface: | Annealing | Thickness: | 0.5-25.4mm |
| Length: | 6 Meters Or Customized | Outer Diameter: | 6-630mm |
| Technique: | Seamless/Welded | Price Term: | CIF,FOB,CFR,EX-WORK |
| High Light: | stainless steel pipe astm,stainless steel pipe welding standards |
||

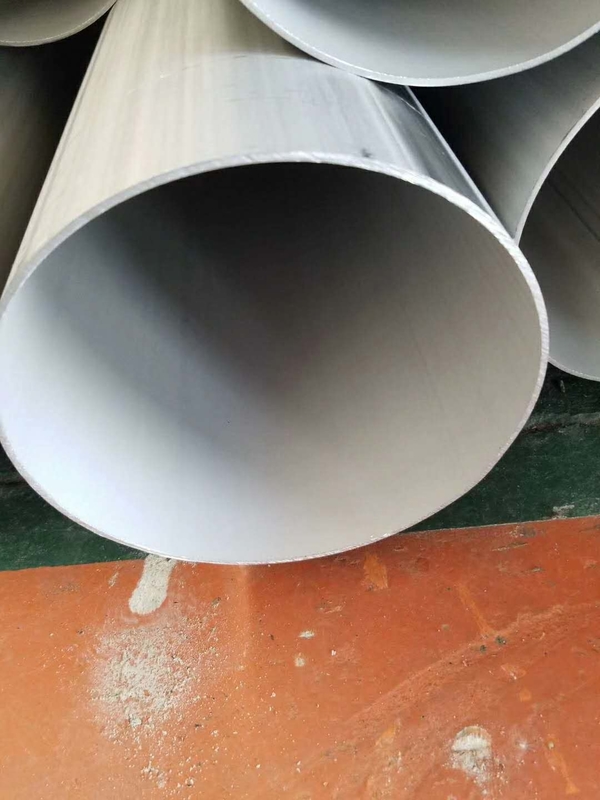

duplex 2205 stainless steel pipe with excellent mechanical properties and corrosion resistance, and good weldability, in oil and gas industry, Marine engineering, chemical industry and other industries have a wide range of USES. Oil and gas industry at present USES duplex stainless steel material laying of oil and gas pipeline length has more than 850 km, the vast majority of the 2205 duplex stainless steel seamless steel tube (there is also a part of S31803 duplex 2205 stainless steel pipe s, 2507 duplex stainless steel pipe tube); Due to the corrosive strength of the natural gas medium, the high-pressure duplex 2205 stainless steel pipe line materials.
DUPLEX 2205 STAINLESS STEEL PIPE RELATED PRODUCTS:
★ duplex 2205 stainless steel pipe seamless
★ duplex 2205 stainless steel pipe welded
★ duplex 2205 stainless steel tube seamless
★ duplex 2205 stainless steel tube welded
★ duplex 2205 stainless steel pipe fittings
– elbow
– tee
-reducer
-cross
-cap
-stub end
★ duplex 2205 stainless steel pipe flanges
-wn flange
-sw flange
-so flange
-lap j flange
-bl flange
★ duplex 2205 stainless steel valves
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
N
|
|
≦0.030
|
≦1.00
|
≦2.00
|
≦0.030
|
≦0.015
|
4.50~6.50
|
21.00~23.00
|
2.90~3.50
|
0.14~0.20
|
duplex 2205 stainless steel pipe combination of ferrite and austenite is the most beneficial properties, has the very good resistance to chloride stress corrosion cracking, is made up of 21% chromium, 2.5% nitrogen and 4.5% molybdenum nickel alloy consisting of duplex stainless steel, it is the yield strength of austenitic stainless steel double, this feature enables designers when designing products lose weight, make this kind of alloy has the advantages of more than 316,317L. Due to the high levels of chrome and molybdenum, the ability to resist spot corrosion and uniform corrosion is excellent. The double phase microstructure ensures that the steel has high tensile strength and high mechanical strength.
DUPLEX 2205 STAINLESS STEEL PIPE
|
DUPLEX 2205
|
304
|
316L
|
REMARKS
|
||
|
resistance to corrosion
|
Corrosion resistance of chlorinated chloride
|
>1000
|
47
|
152
|
40%Cacl2 100℃
Cause corrosion cracking time(h)
|
|
PREN
|
35.4
|
18.4
|
25.9
|
PREN
The greater the coefficient, the stronger the hole erosion
|
|
|
Intercrystalline corrosion
|
very good
|
good
|
ok
|
||
|
Uniform corrosion resistance g.(m2.h)-1
|
0.021
|
57
|
12.1
|
20%H2So4 60℃ 100h
|
|
|
Fatigue resistance
≥
|
very good
|
good
|
ok
|
||
|
Mechanical properties
|
Tensile strength Rm((Mpa)≥
|
620
|
485
|
485
|
1020-1100℃
Water quenching
|
|
yield strength
Rp0.2(Mpa)≥
|
450
|
170
|
170
|
1020-1100℃
Water quenching
|
|
|
elongation
A50(%)≥
|
25
|
40
|
40
|
1020-1100℃
Water quenching
|
|
|
Hardness (b/l) ≤
|
290/30.5
|
187/90
|
187/90
|
1020-1100℃
Water quenching
|
|
|
Physical properties
|
Coefficient of thermal conductivity
w/(m. ℃)
|
19
|
18
|
15
|
20-100℃
|
|
Linear expansion coefficient(10-5/℃)
|
13.7
|
16
|
16
|
20-100℃
|
|
|
Welding performance
|
The line thermal tendency coefficient is small, need not preheat before welding, do not need heat treatment after welding, can be welded with 304 stainless steel
|
In principle, no welding and preheating should be done
|
Welding is prone to high temperature cracks
|
||
|
Integrated performance comparison
|
very good
|
good
|
good
|
| INCH | inch sizc (ID) | OD | STANDARD WT | ||||||||||||||
| SCH 5s | SCH 10S | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | STD | XS | XXS | |||
| 1/8 | DN6 | 10.3 | – | 1.24 | – | – | – | 1.73 | – | 2.42 | – | – | – | – | 1.73 | 2.41 | – |
| 1/4 | DN8 | 13.7 | – | 1.65 | – | – | – | 2.24 | – | 3.02 | – | – | – | – | 2.24 | 3.02 | – |
| 3/8 | DN10 | 17.1 | – | 1.65 | – | – | – | 2.31 | – | 3.2 | – | – | – | – | 2.31 | 3.2 | – |
| 1/2 | DN15 | 21.3 | 1.65 | 2.11 | – | – | – | 2.77 | – | 3.73 | – | – | – | 4.78 | 2.77 | 3.73 | 7.47 |
| 3/4 | DN20 | 26.7 | 1.65 | 2.11 | – | – | – | 2.87 | – | 3.91 | – | – | – | 5.56 | 2.87 | 3.91 | 7.82 |
| 1 | DN25 | 33.4 | 1.65 | 2.77 | – | – | – | 3.38 | – | 4.55 | – | – | – | 6.35 | 3.38 | 4.55 | 9.09 |
| 1.1/4 | DN32 | 42.2 | 1.65 | 2.77 | – | – | – | 3.56 | – | 4.85 | – | – | – | 6.35 | 3.58 | 4.85 | 9.7 |
| 1.1/2 | DN40 | 48.3 | 1.65 | 2.77 | – | – | – | 3.68 | – | 5.05 | – | – | – | 7.14 | 3.68 | 5.08 | 10.15 |
| 2 | DN50 | 60.3 | 1.65 | 2.77 | – | – | – | 3.91 | – | 5.54 | – | – | – | 8.74 | 3.91 | 5.54 | 11.07 |
| 2.1/2 | DN65 | 73 | 2.11 | 3.05 | – | – | – | 5.16 | – | 7.01 | – | – | – | 9.53 | 5.16 | 7.01 | 14.02 |
| 3 | DN80 | 88.9 | 2.11 | 3.05 | – | , – | – | 5.49 | – | 7.62 | – | – | – | 11.13 | 5.49 | 7.52 | 15.24 |
| 3.1/2 | DN90 | 101.6 | 2.11 | 3.05 | – | – | – | 5.74 | – | 8.08 | – | – | – | – | 5.74 | 8.08 | – |
| 4 | DN100 | 114.3 | 2.11 | 3.05 | – | – | – | 6.02 | – | 8.58 | – | 11.13 | – | 13.49 | 6.02 | 8.56 | 17.12 |
| 5 | DN125 | 141.3 | 2.77 | 3.4 | – | – | – | 6.55 | – | 9.53 | – | 12.7 | – | 15.88 | 6.55 | 9.53 | 18.05 |
| 6 | DN150 | 168.3 | 2.77 | 3.4 | – | – | – | 7.11 | – | 10.97 | – | 14.27 | – | 18.26 | 7.11 | 10.97 | 21.95 |
| 8 | DN200 | 219.1 | 2.77 | 3.76 | – | 6.35 | 7.04 | 8.18 | 10.31 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 8.18 | 12.7 | 22.23 |
| 10 | DN250 | 273.1 | 3.4 | 4.19 | – | 6.35 | 7.8 | 9.27 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 9.27 | 12.7 | 25.4 |
| 12 | DN300 | 323.9 | 3.96 | 4.57 | – | 6.35 | 8.38 | 10.31 | 14.27 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 9.35 | 12.7 | 25.4 |
| 14 | DN350 | 355.5 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 11.13 | 15.09 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | 9.53 | 12.7 | – |
| 16 | DN400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 12.7 | 16.66 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | 9.53 | 12.7 | – |
| 18 | DN450 | 457 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 14.27 | 19.05 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | 9.53 | 12.7 | – |
| 20 | DN500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 15.09 | 20.62 | 26.19 | 32.54 | 38.1 | 44.45 | , 50.01 | 9.53 | 12.7 | – |
| 22 | DN550 | 559 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | – | 22.23 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | 9.53 | 12.7 | – |
| 24 | DN600 | 610 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 17.48 | 24.61 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | 9.53 | 12.7 | – |
| 26 | DN650 | 660 | – | – | 7.92 | 12.7 | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 28 | DN700 | 711 | – | – | 7.92 | 12.7 | 15.88 | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 30 | DN750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 32 | DN800 | 813 | – | – | 7.92 | 12.7 | 15.88 | 17.48 | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 34 | DN850 | 864 | – | – | 7.92 | 12.7 | 15.88 | 17.48 | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 36 | DN900 | 914 | – | – | 7.92 | 12.7 | 15.88 | 19.05 | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 38 | DN950 | 965 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 40 | DN1000 | 1015 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 42 | DN1050 | 1067 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 44 | DN1100 | 1118 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 46 | DN1150 | 1188 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 48 | DN1200 | 1219 | – | – | – | – | – | – | – | – | – | – | – | ||||
