Product Details:
|
| Grade: | 316L | Application: | Construction,Industry,Steel Grating,ships Building Industry,rudder Shaft |
|---|---|---|---|
| Standard: | ASTM,DIN,AISI,JIS | Length: | 5.8-12m |
| Technique: | Hot Rolled | Surface: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
| Thickness: | 1.5mm-20mm | ||
| High Light: | stainless flat bar stock,304 stainless steel flat bar |
||
1. Available Grades: ASTM/AISI: 201, 202, 301, 304, 304L, 309S, 310S, 321, 316, 316L, 410, 409, 409L, 430 JIS: SUS 201, 202, 301, 304, 304L, 309S, 310S, 321, 316, 316L, 321, 410, 409L, 430 BS: 284S16, 301S21, 304S15, 304S12, 304S62, 316S16, 316S31, 320S31, 320S17, 316S11, 316S12, 316S61, 321S20, 321S20, 321S12, 321S31 DIN: 1.4310, 1.4301, 1.4306, 1.4401, 1.4436, 1.4435, 1.4878
Width: 10mm---300mm
Thickness: 3mm--100mm
Length: Normal is 6M, but also as your requirement
Technical: Hot Rolled
Surface: BA/2B/NO. 1/NO. 3/NO. 4/8K/HL/2D/1D
Brand name: AISI, ASTM, ASME, GB, DIN, JIS, BS, etc
Delivery Time: Within 7--25 working days
MOQ: 5MT
Payment: 30% by T/T in advance, the 70% against copy of BL
Our company is committed to the development of the Stainless steel for many years, with advanced technology& talents.
To provide customers with satisfactory products and service, we hope to develop hand in hand together.
We hope more and more buyers from different countries can come & visit our company.
Your satisfaction is our greatest pursuit.
If you are really interested in our products, you can feel free to contact us directly.
Your specific enquiry will be highly treated. We will quote you our most favorable price.

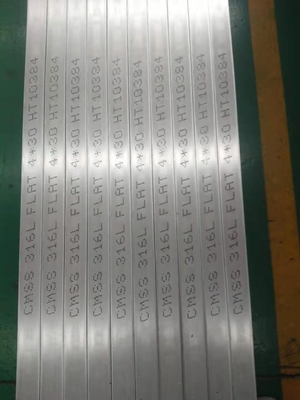

| Name | 316L Stainless Steel flat bar | |||||
| Standard | ASTM A554, A312, A249, A269 and A270 | |||||
| Material Grade | 304, 316, 201, 202, 316L, 430, 310 | |||||
| Size Range | 25— 25— 3” 100— 100— 10mm | |||||
| Length | 6m or as customers' request | |||||
Tolerance |
a) width: +/-0. 15mm | |||||
| b) Thickness: +/- 0.02mm | ||||||
| c) Length: +/-4. 5mm - 0mm | ||||||
| Surface | 180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 500G, 600G or 800G Mirror finish |
|||||
| Application | Ornamental tubes, Decoration construction, upholstery, industry instruments | |||||
| Test | Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT | |||||
Chemical Composition of Material |
Composition Material |
201 | 202 | 304 | 316 | 430 |
| C | 0.15 | 0.15 | 0.08 | 0.08 | 0.12 | |
| Si | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | |
| Mn | 5.5-7.5 | 7.5-10 | 2.00 | 2.00 | 1.00 | |
| P | 0.06 | 0.06 | 0.045 | 0.045 | 0.040 | |
| S | 0.03 | 0.03 | 0.030 | 0.030 | 0.030 | |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 16-18 | |
| Ni | 3.5-5.5 | 4-6 | 8-10.5 | 10-14 | ||
| Mo | 2.0-3.0 | |||||
Mechanical Property |
Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | 535 | 520 | 520 | 520 | ||
| Yield Strength | 245 | 205 | 205 | 205 | ||
| Extension | 30% | 30% | 35% | 35% | ||
| Hardness (HV) | ||||||
