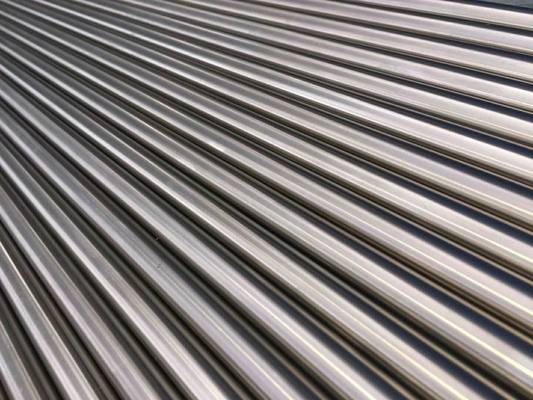

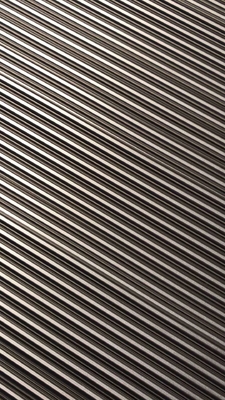

Product Details:
|
| Certification: | ISO,BV,SGS | Type: | Round |
|---|---|---|---|
| Application: | Construction,decoration,Industry,Mechineal,shipbuilding | Standard: | DIN,ASTM,AISI,JIS,EN |
| Grade: | Nitronic50 | Shape: | Round |
| Special Use: | Cold Heading Steel | Dimensions: | 5.5mm-500mm |
| Surface: | Bright,Polished | Technique: | Cold Rolled Hot Rolled |
| Length: | Customers' Requirements | ||
| High Light: | ss round bars,stainless steel round rod |
||
Nitronic 50® stainless steel is an austenitic stainless steel with a blend of strength and corrosion resistance that is higher than stainless steel grades 316, 316/316L, 317, and 317/317L .
The high strength, corrosion resistance, and low magnetic permeability of this alloy allows it to be used as a material for medical implants.
The following sections will discuss in detail about stainless steel grade NITRONIC® 50 (XM-19).
The chemical composition of stainless steel grade NITRONIC® 50 (XM-19) is outlined in the following table.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 20.5-23.5 |
| Nickel, Ni | 11.5-13.5 |
| Manganese, Mn | 4-6 |
| Molybdenum, Mo | 1.5-3 |
| Silicon, Si | 1 max |
| Nitrogen, N | 0.20-0.40 |
| Niobium, Nb | 0.10-0.30 |
| Vanadium, Va | 0.10-0.30 |
| Phosphorous, P | 0.04 max |
| Carbon, C | 0.06 max |
| Sulfur, S | 0.010 max |
The physical properties of stainless steel grade NITRONIC® 50 (XM-19) are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.88 g/cm3 | 0.285 lb/in3 |
The following table shows mechanical properties of stainless steel grade NITRONIC® 50 (XM-19).
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 690 MPa | 100 ksi |
| Yield strength | 380 MPa | 55 ksi |
| Elongation | 35% | 35% |
| Hardness | 293 | 293 |
Other designations that are equivalent to stainless steel grade NITRONIC® 50 (XM-19) include the following:
Stainless steel grade Nitronic® 50 has machinability characteristics that are similar to other austenitic stainless steels; however it requires slower speeds, more power, and higher rigidity due to its high work hardening rate. It is recommended that coated carbide tooling be used.
Stainless steel grade Nitronic® 50 can be formed using the same methods applied for other austenitic stainless steels. More power for forming and forging is needed for this alloy. Forging can be done at 1177-1204°C (2150-2200°F).
Welding of stainless steel grade Nitronic® 50 can be performed using traditional joining processes. Recommended filler metal should be Nitronic® 50W (AWS E/ER209).
Caution should be taken while using autogenous, high power density joining processes such as EB or laser welding, due to low FN potential and severe outgassing possibility.
Final annealing process performed for several of the applications, is done at 1065°C (1950°F), which is followed by water quenching. In case this material is used in a strongly corrosive environment, annealing should be done at 1121°C (2050°F). This alloy cannot be hardened by heat treatment.
NITRONIC® 50 (XM-19) is widely used in the following sectors:
Some of the key products made using NITRONIC® 50 (XM-19) include:
