304L ASTM A240 Stainless Steel Perforated Sheet Metal For 0.3mm - 120mm Thickness

304L ASTM A240 Stainless Steel Perforated Sheet Metal For 0.3mm - 120mm Thickness
304L ASTM A240 Stainless Steel Perforated Sheet Metal For 0.3mm - 120mm Thickness 304L ASTM A240 Stainless Steel Perforated Sheet Metal For 0.3mm - 120mm Thickness

Large Image :  304L ASTM A240 Stainless Steel Perforated Sheet Metal For 0.3mm - 120mm Thickness

Product Details:
Place of Origin: China
Brand Name: TISCO ZPSS LISCO BAO STEEL
Certification: SGS ISO MTC
Model Number: 304L
Payment & Shipping Terms:
Minimum Order Quantity: 200KGS
Price: 3.75 USD/KG
Packaging Details: Wodden Pallet
Delivery Time: 14 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

304L ASTM A240 Stainless Steel Perforated Sheet Metal For 0.3mm - 120mm Thickness

Description
Application: Construction,Kitchenware,Decoration,chemical,Industry Width: 1000-2000mm,20mm-1250mm,1219/1250/1500
Type: Plate,Coil,stainless Steel Sheet Standard: ASTM,JIS,AISI,EN
Length: Customer's Request,1000-6000mm Or Customer's Requirement Grade: 300 Series,201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect
Product Name: ASTM JIS SUS 201 202 301 304 304l 316 316l 310Stainless Steel Sheet Surface: BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Thickness: 0.3mm-120mm Material: 200 Series/300 Series/400series
Edge: Slit Edge Technique: Cold Rolled Hot Rolled
Price Term: FOB,CIF CFR FOB EX-WORK
High Light:

stainless steel plate

,

stainless steel panels





Stainless Steel Perforated Sheet 304L ASTM A240 Stainless Steel Perforated Sheet Metal

The material of perforated sheet is mainly made of metal, iron plate, galvanized plate, stainless steel, aluminum plate are the most commonly used.The pattern of punch net is divided according to the shape of hole, round hole, square hole, long round hole and hexagon are common.In some construction industry, perforated sheet is often used as industry decoration perforated mesh.



In the perforated sheet filed to follow a principle, the aperture should be greater than or equal to the thickness of the sheet metal that is to comply with the minimum aperture principle.The closer the hole diameter is to the thickness of the plate, the more difficult the machining is and the higher the processing fee is.In some materials, the aperture can be smaller than the thickness of the plate.



Now let's talk about the arrangement of punch holes:

(1) straight line----as following picture show)

(2) 60 ° staggered----(as following picture show)

(3) 45 ° staggered----(as following picture show)

(4) square hole----(as following picture show)

(5) long round hole (straight row)---(as following picture show)

(6) long round hole----(as following picture show)

(7) hexagonal hole----(as following picture show)

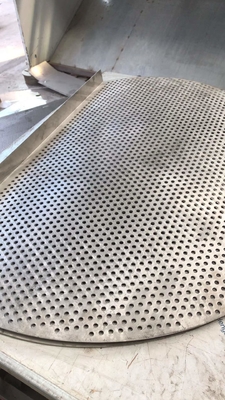

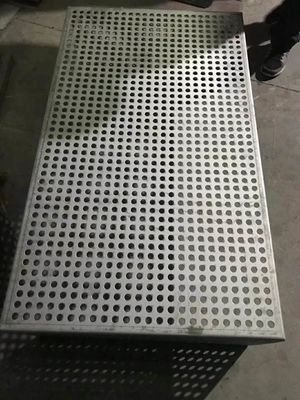

Product Show



Hole diameter Staggered Centers Sheet Thickness Open Area
0.045 1.14mm 0.066 0.033-0.039 0.84-0.99mm 37%
1/16 1.59mm 3/32 0.027-0.033 0.68-0.84mm 41%
5/64 1.98mm 1/8 0.027-0.053 0.68-1.35mm 35%
0.081 2.06mm 1/8 0.053-0.066 1.35-1.68mm 38%
3/32 2.38mm 5/32 0.053-0.066 1.35-1.68mm 33%
1/8 3.17mm 3/16 0.027-0.127 0.68-3.23mm 40%
5/32 3.97mm 3/16 0.027-0.066 0.68-1.68mm 63%
3/16 4.76mm 1/4 0.027-0.127 0.68-3.23mm 50%
1/4 6.35mm 3/8 0.033-0.111,0.25 0.84-2.82mm.6.35mm 40%
3/8 9.52mm 1/2 0.053-0.082,3/16 1.35-2.08mm,4.76mm 51%
3/8 9.52mm 9/16 0.059,0.119 1.50mm,3.02mm 40%
1/2 12.70mm 11/16 0.033-0.127 0.84-3.23mm,4.76mm 48%
1/4Hex 6.35mmHex 0.285 0.027-0.033 0.68-0.84mm 76%
3/8Sq. 9.52mmSq.   0.053-0.066 1.35-1.68mm 51%









Product Application
