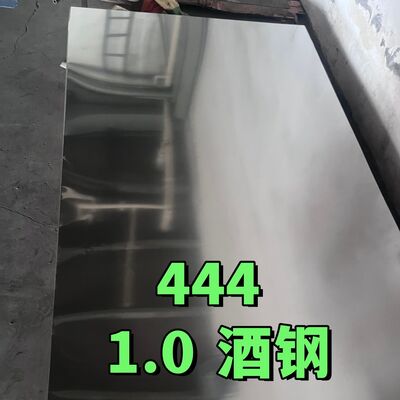

444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties

444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties
444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties 444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties 444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties 444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties 444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties

Large Image :  444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties

Product Details:
Place of Origin: China
Brand Name: ZPSS TISCO BAO STEEL
Certification: SGS ISO MTC
Model Number: 444
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: 2.15 USD/KG
Packaging Details: Export Packing
Delivery Time: 14 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties

Description
Material: SUS444 Metal Type: Stainless Steel
Color: Customized 2B 2D Shape: Flat Sheet
Thickness: 1-3mm Width: 1000-2000mm
Length: 2000-6000mm
High Light:

stainless steel sheets and plates

,

stainless steel plate thickness

Strip, Coil, Foil, Wire, ASTM A268, ASTM A240

APPLICATIONS

Food processing, brewery and wine making equipment, hot-water tanks, heat-exchanger tubing and automotive components

DESCRIPTION

Type 444 is a low carbon, low nitrogen, ferritic stainless steel that provides pitting and crevice corrosion resistance superior to most ferritic stainless steels. Applications requiring superior corrosion resistance and resistance to chloride stress corrosion cracking are ideal for this alloy.

CHEMISTRY TYPICAL

Carbon: 0.025 max
Manganese: 1.00 max
Silicon: 0.60
Chromium: 17.50-19.50
Nickel: 01.00 max
Molybdenum: 1. 75-2.50
Titanium+ Columbium : 0.20 + 4x (Carbon+ Nitrogen) min-0.80 max
Phosphorus: 0.040 max
Sulfur: 0.030 max
Iron: Balance

PHYSICAL PROPERTIES

Density: 0.28 lbs/in3 7.75 g/cm3

Electrical Resistivity: microhm-in (microhm-cm):
68 ° F (20 ° C): 22.50 (57)

Specific Heat: BTU/lbl° F (kJ/kg•K):
32 - 212 ° F (0 - 100 ° C): 0.102 (0.427)

Thermal Conductivity: BTU/hr/ft2/ft/° F (W/m•K)
At 212 °F (100 °C): 15.5 (26.8)

Mean Coefficient of Thermal Expansion: in/inl° F (µm/m•K):
32 - 212 ° F (0 - 100 °C): 6.1 x 10-s (11.0)

Modulus of Elasticity: ksi (MPa)
29 x 103 (200 x 103) in tension


Magnetic Permeability: Magnetic

Melting Range: 2700 - 2790 ° F (1482 - 1532 °C)

FORMS

Coil - Strip, Foil, Ribbon Wire - Profile, Round, Flat, Square

444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties 0444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties 1444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties 2444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties 3444 Stainless Steel Sheet AISI 444 (S44400) Stainless Steel 444 Stainless Steel Properties 4

MECHANICAL PROPERTIES AT ROOM TEMPERATURE

PROPERTIES: ANNEALED

Ultimate Tensile Strength: 60 KSI min (414 MPa min)
Yield Strength (0.2% offset): 40 KSI min (276 MPa min)
Elongation: 22% min
Hardness: Rb 90 max

PROPERTIES: TEMPERED

Type 444 can be rolled to various tempers. Consult Ulbrich Technical Services if temper rolled product is required.

ADDITIONAL PROPERTIES

CORROSION RESISTANCE

Refer to NACE (National Association of Corrosion Engineers) for recommendations.

FINISHES

# 1 - Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative finish is not required.
# 2D - Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain lubricants in the forming process. # 2B - Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D.
#BA- Bright annealed cold rolled and bright annealed
#CBA- Course bright annealed cold rolled matte finish and bright anneal
#2 - Cold Rolled
# 2BA- Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A 2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part. Polished - Various grit finish for specific polish finished requirements.
* Not all finishes are available for all alloys - Contact Ulbrich Sales for more information.

WIRE FINISHES

XC - Extra clean bright annealed or bright annealed and cold rolled Grease - Ultra-bright finish (for decorative applications) Soap - Soap is not removed from tempered wire to act as a lubricant.

* Contact Ulbrich Wire for custom wire finishes.

COLD FORMING

Type 444 provides excellent formability and can be readily deep drawn and spin formed. Stretch forming, however, is limited in application for this alloy.

HEAT TREATMENT

Type 444 is non-heat treatable.
