Product Details:
|
| OD: | 6-630mm | Length: | 6m |
|---|---|---|---|
| Surface: | NO.1 | Type: | Seamless |
| Mill: | Bao Steel | ||
| High Light: | seamless stainless steel tube,ss seamless pipes |
||

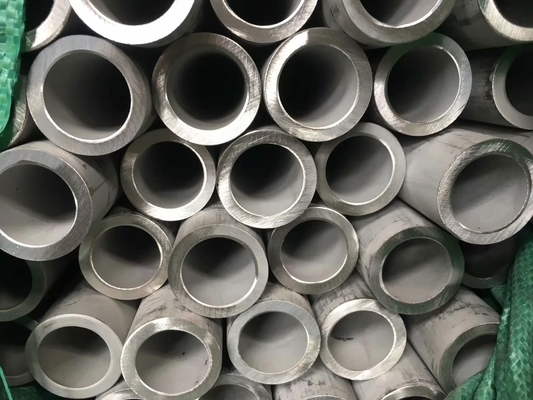

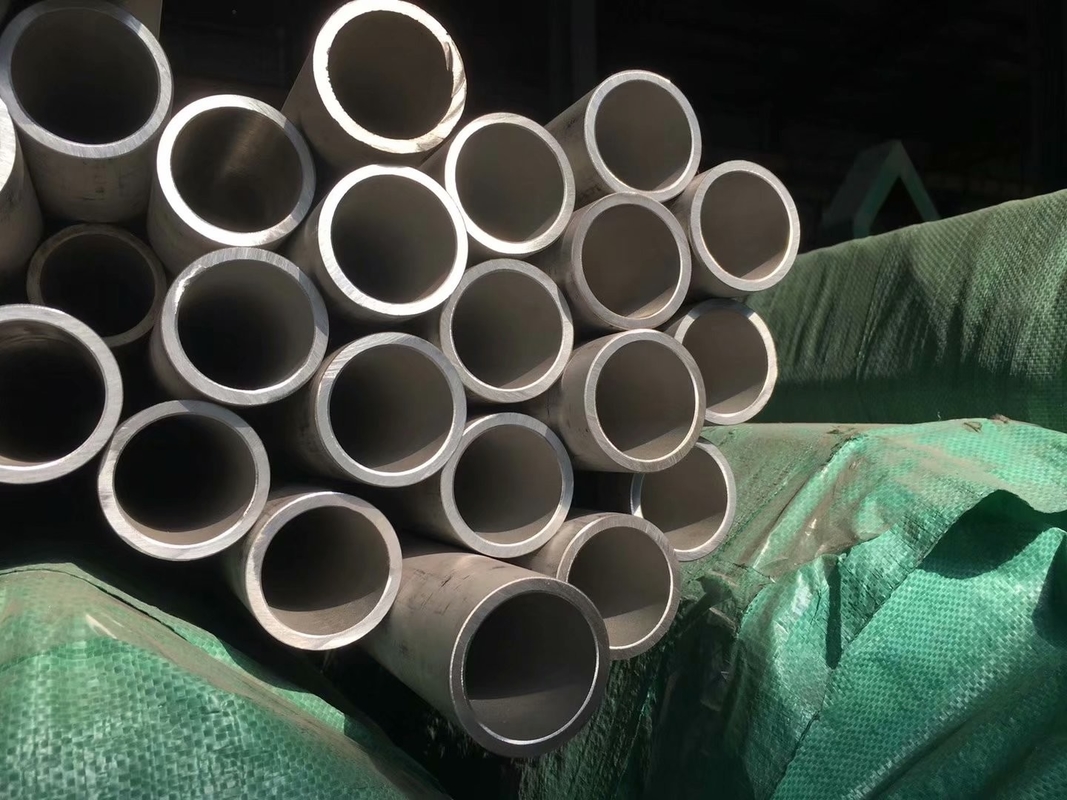

Duplex Stainless Steel Seamless Tube S31803 / S32205 / S32750 / 1.4410 / 1.4462
Duplex Stainless Steel Pipe S31803 / S32205 / S32750 / 1.4410 / 1.4462 Seamless Tube
Our duplex and stainless steel tubes can easily be welded and transformed into different structures.
6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
We offer Stainless steel supplies and stainless steel supply items for all stainless steel tube sizes. We are leading stainless steel tube suppliers, stainless steel tubing suppliers.
2205 is a duplex (austenitic-ferritic) stainless steel containing about 40 - 50% ferrite in the annealed condition. 2205 has been a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless. The high chromium, molybdenum and nitrogen contents provide corrosion resistance superior to 316/316L and 317L stainless in most environments. 2205 is not suggested for operating temperatures above 600°F.
The design strength of 2205 is significantly higher than 316/316L, often permitting lighter wall construction. 2205 has good notch impact toughness down to temperatures below - 40°F.
Specifications:
UNS S31803
ASME SA-182 (F51), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F51),A240, A276, A479, A789, A790, A815, A928, A988
SAE J405
UNS S32205
ASME SA-182 (F60), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F60), A240, A276, A479, A480, A798, A790, A815, A928, A988
SAE J405
Features
Chemical Composition, %
|
Cr |
Ni |
Mo |
C |
N |
|---|---|---|---|---|
| 22.0-23.0 | 4.50-6.50 | 3.00-3.50 | .030 Max | 0.14-0.20 |
|
Mn |
Si |
P |
S |
Fe |
| 2.00 Max | 1.00 Max | .030 Max | .020 Max | Balance |
Chemical Compositions:
| Chemical Composition (%) Duplex Stainless Steel Pipe | ||
| Alloy | 2205 | 2205 |
| UNS Designation | S31803 | S32205 |
| Carbon (C) max. | 0.030 | 0.030 |
| Manganese (Mn) max. | 2.00 | 2.00 |
| Phosphorus (P) max. | 0.030 | 0.030 |
| Sulfur (S) max. | 0.020 | 0.020 |
| Silicon (Si) max. | 1.00 | 1.00 |
| Chromium (Cr) | 21.0 - 23.0 | 22.0 - 23.0 |
| Nickel (Ni) | 4.5 - 6.5 | 4.5 - 6.5 |
| Molybdenum (Mo) | 2.5 - 3.5 | 3.0 - 3.5 |
| Nitrogen (N) | 0.08 - 0.20 | 0.14 - 0.20 |
| Iron (Fe) | Balance | Balance |
