ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed

ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed
ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed

Large Image :  ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed

Product Details:
Place of Origin: China
Brand Name: Bao Steel
Certification: SGS ISO
Model Number: 446
Payment & Shipping Terms:
Minimum Order Quantity: 500KG
Price: 5.85 USD/KG
Packaging Details: Wodden Box
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50 Tons

ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed

Description
OD: 114MM Thickness: 6mm
Length: 5800mm Surface: NO.1
High Light:

ss seamless pipes

,

astm stainless steel pipe



446 Stainless Steel Pipe



Commodity Stainless Steel tube
material 446
Standard ASTM, AISI, GB, JIS, KS, EN
Surface Finishing: 2B, BA, Hair Line, No.1, No.4,
OD 3 mm to 530 mm
WT 0.5mm to 50 mm or as required
Length as required
size Special sizes can be cutted as customer's requirement
Application Stainless steel tube applies to construction field, ships building industry, Petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields
Packing export standard or as customer's requirement

Stainless Steel 446 Welded pipes are formed by cold or hot rolling plate and welding the seam. To keep the outside surface of a welded pipe uniform & smooth scarfing blade is used to remove the weld flash. ERW pipes stands for Electric Resistance Welded Pipes. Stainless Steel 446 ERW pipes are used in various scaffolding, line pipes, engineering purposes, fencing etc.

Chemical Composition of grade 446 Stainless Steel

Element Content (%)
Iron, Fe 73
Chromium, Cr 23.0 - 27.0
Manganese, Mn 1.5
Silicon, Si 1
Nickel, Ni 0.25
Carbon, C 0.2
Phosphorous, P 0.04
Sulfur, S 0.03

Physical properties of grade 446 Stainless Steel

Properties Metric Imperial
Density 7.80 g/cm3 0.282 lb/in³

Mechanical properties of grade 446 Stainless Steel

Properties Metric Imperial
Tensile strength 550 MPa 79800 psi
Yield strength (@strain 0.200%) 345 MPa 50000 psi
Elastic modulus 200 GPa 29000 ksi
Poisson's ratio 0.27-0.30 0.27-0.30
Elongation at break 20% 20%

Specifications: ASTM A/ ASME SA213/A249/A269/A312/A358 CL. I TO V ASTM A789/A790

Size: 1/2” NB to 24” NB

ERW 446 Pipes: 1/2” NB to 24” NB

EFW 446 Pipes: 6” NB to 100” NB

Wall Thickness: Schedule 5S to Schedule XXS

Stainless Steel 446 are available in NB size as well as OD size in all categories Pipes, Tubes & Tubing. We also have Specality in manufacturing and supply of custom sizes 446 as per requirements.SS 446 cold drawn seamless and welded pipes are available in ex-stock.

The grade 446 stainless steel is a ferritic, non-heat treatable stainless steel that provides good resistance to high temperature oxidation and corrosion. The following data sheet provides more details of grade 446 stainless steel.



Standard: ASTM/ASME A/SA 268
Material: TP446 SUS446 AISI446 UNS S44600 1.4762
Nominal Dia: 1/2 "to 8" NB for seamless pipe
Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
Size Range for tubing: OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)
Length: 30 m(Max) or as your requirement
Process: Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube
Finish: Annealed & pickled, bright annealing, polished
Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end



Chemical Composition:
The chemical composition of grade 446 stainless steel is outlined in the following table.





ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed 0

Mechanical Properties:
The mechanical properties of grade 446 stainless steel are displayed in the following table.



ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed 1

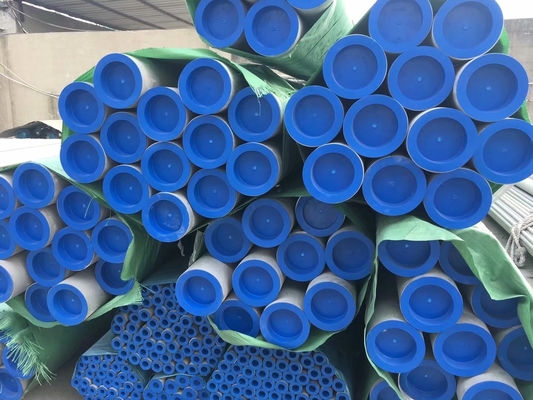

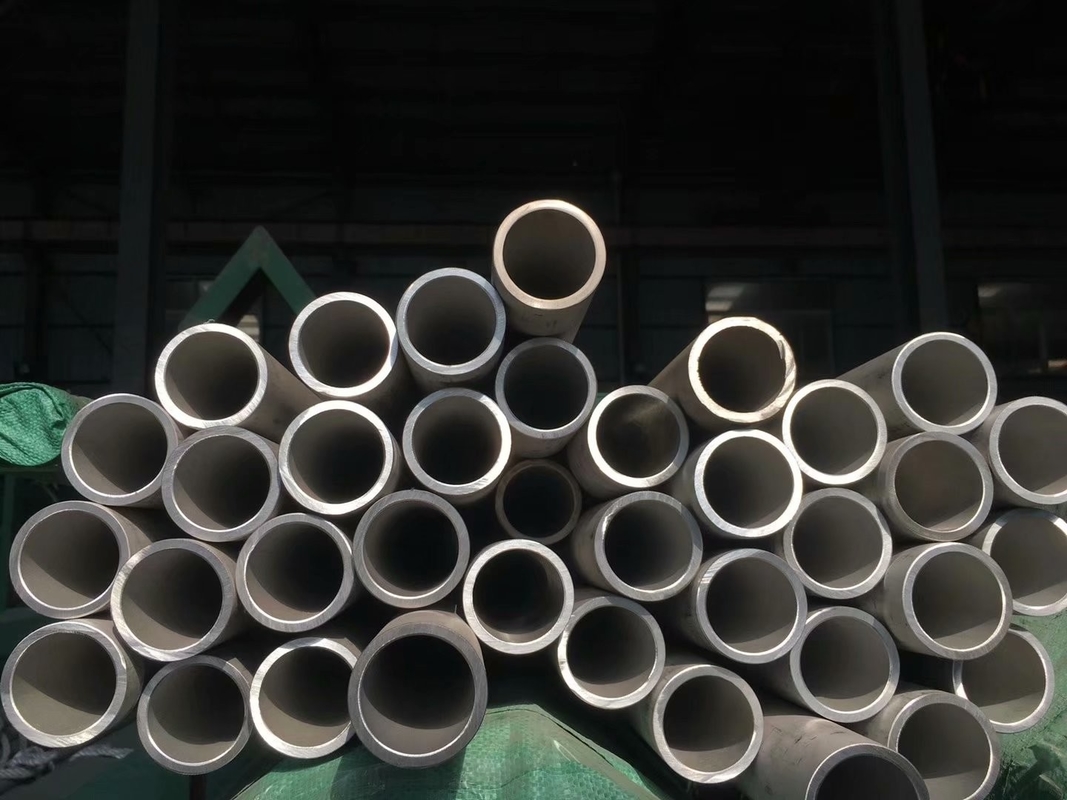

Photo :

ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed 2ASTM A268 TP446 114*6mm Seamless Stainless Steel Pipe High Precision Instrumentation Annealed 3
