ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger

ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger
ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger

Large Image :  ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger

Product Details:
Place of Origin: China
Brand Name: MITTEL
Certification: SGS ISO
Model Number: TP304
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: 3150 USD/Ton
Packaging Details: Wodden Box
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 100 Tons

ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger

Description
OD: 6-630mm Thickness: 1-50mm
Length: 6m Surface: NO.1
Condition: Seamless Use: Heat Exchanger Tubes
High Light:

ss seamless pipes

,

astm stainless steel pipe

ASTM A312 Schedule 40S GR TP304 Stainless Steel Tube SS304 Heat Exchanger Tubes

Stainless pipe
Pickling
Project Standard ASTM A269/A269M ASTM A312/A312M ASTM A213/A213M ASTM A789/789M ASTM A790/790M
Grade

TP304

TP304L

TP321

TP316

TP316L

TP317

TP321

TP347

N08904/904L

TP304

TP304L

TP309S

TP310S

TP316

TP316L

TP316Ti

TP317

TP317L

TP321

TP347

TP304

TP304L

TP309S

TP316

TP316L

TP316Ti

TP317

TP310S

TP321

TP347

S32250

S31803

S32750

S31803

S32750

Size

NPS:1/8”-48” SCH:5S,10/10S,20,30,40/40S,60,80/80S,100,120,140,160,STD,XS,XXS

OD:0.23”-26”(5.8mm-660.4mm)

WT:0.04”- 2”(1.0mm-50.8mm)

Length According to customer’s request, Max. 18Meters.
Chemical composition(According to the standard)
Eg. TP304L(ASTM)/1.4306(DIN)
  C max Si max Mn max P max S max Cr Ni N max
TP304L 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0 --
1.4306 0.030 1.00 2.00 0.045 0.030 18.0-20.0 10.0-12.0 0.11
Surface Finish Pickled
Packing Bundles for each piece then packed in seaworthy wooden cases.
Applications For fluid & gas transport; structure & machining; petrochemical; environmental protection; electricity etc
Other standards

ASTM A270/270M

ASTM B667

EN10216-5

JIS G3463

2. Description:

3.1Chemical Composition: 3. Material

Grade C Si Mn P S Ni Cr Mo N

317l ≤0.03 ≤1.00 ≤2.0 ≤0.045 ≤0.03 11.0-15.0 18.0-20.0 3.0-4.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.04 ≤0.03 9.0-12.0 17.0-19.0   Ti≥5xC
409 ≤0.08 ≤1.0 ≤1.0 ≤0.04 ≤0.03 ≤0.5 10.5-11.7   Ti6xC%≤0.70
409L ≤0.03 ≤1.0 ≤1.0 ≤0.04 ≤0.03 0.5 10.5-11.7   Ti8xC%≤0.70
430 ≤0.12 ≤1.0 ≤1.0 ≤0.04 ≤0.03   16.0-18.0
SS329J4L ≤0.03 ≤1.0 ≤1.5 ≤0.04 ≤0.03 5.50-7.50 24.00-26.00 2.50-3.50



3.2 Mechanical Property:

ASTM Tensile Strength (Mpa) Yield Strength (Mpa) Elogation (%) Hardness (HRB)

317L ≥480 ≥175 ≥40 ≤200
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80
SS329J4L ≥620 ≥450 ≥18 ≤320
Our Services

You can select different sizes stainless steel products with high quality from a reliable manufacturer with reasonable price. We can supply stainless tube/pipe, stainless steel sheet&plate, stainless steel bar, stainless steel wire, stainless steel coil etc.




Size

Outer Diameter:1mm-10mm; 10mm-250mm
Wall Thickness: 0.01mm-4mm; 1mm-20mm
Length: 10mm -6000mm
Surface treatment Polishing, Mirro surface, Bright, Pickling
Type Welded, ERW, seamless
Manufacturing method Hot rolled, Extrusion, Cold drawn, Cold rolled
Shape Round, Square, Irregular

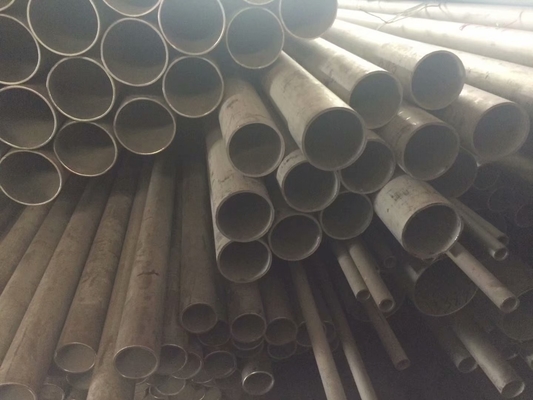

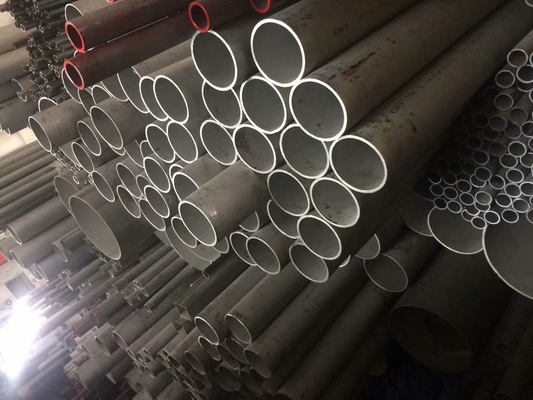

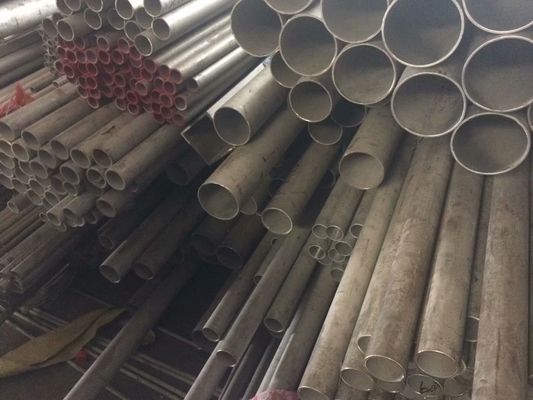

bright annealed, small diameter tubing show:

ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger 0ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger 1ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger 2ASTM A312 Schedule 40S GR TP304 Stainless Steel Seamless Tube SS304 For Heat Exchanger 3
