Hardness K500 Ni - Cu Seamless Alloy Steel Tube Pipe Monel K500 Material

Hardness K500 Ni - Cu Seamless Alloy Steel Tube Pipe Monel K500 Material
Hardness K500 Ni - Cu Seamless Alloy Steel Tube Pipe Monel K500 Material Hardness K500 Ni - Cu Seamless Alloy Steel Tube Pipe Monel K500 Material

Large Image :  Hardness K500 Ni - Cu Seamless Alloy Steel Tube Pipe Monel K500 Material

Product Details:
Place of Origin: China
Brand Name: MITTEL
Certification: SGS ISO
Model Number: Monel K500
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: 35 USD/KG
Packaging Details: Export Packing
Delivery Time: 7 Days
Supply Ability: 5000KGS

Hardness K500 Ni - Cu Seamless Alloy Steel Tube Pipe Monel K500 Material

Description
OD: 6-530mm Thickness: 1-50mm
Length: 1000-12000mm Surface: NO.1 And Bright
High Light:

seamless stainless steel tube

,

astm stainless steel pipe

Monel K500 Material Machining Monel K500 Material Monel K500 Hardness K500 Ni-Cu Alloy Pipe

MONEL K500

NiCu K-500
UNS N05500

Ni 63.0 Cu 29.5 Al 2.7, Ti 0.6 C 0.18 Fe 2.0 Mn 1.5 Si 0.50 S 0.010

High Performance Alloys stocks and produces MONEL K500 in this grade in the following forms: Bar, square bar, fasteners. Request quote on this grade.

Overview

MONEL K500 is a age-hardenable Nickel-Copper alloy which combines the corrosion resistance of Alloy 400 with high strength corrosion fatigue and erosion resistance.

MONEL K500 is a nickel-copper alloy, precipitation hardenable through additions of aluminum and titanium. MONEL K500 retains the excellent corrosion resistant characteristics of 400 and has enhanced strength and hardness after precipitation hardening when compared with 400. Alloy K500 has approximately three (3) times the yield strength and double the tensile strength when compared with 400. MONEL K500 can be further strengthened by cold working before the precipitation hardening.

Characteristics

  • Excellent mechanical properties from sub-zero temperatures up to about 480C.
  • Corrosion resistance in an extensive range of marine and chemical environments. From pure water to non-oxidising mineral acids, salts and alkalis.


Applications

Typical application for MONEL K500 which takes advantage of high strength and corrosion resistance are pump shafts, impellers, propeller shafts, valve components for ships and offshore drilling towers, bolting, oil well drill collars and instrumentation components for oil and gas production. It is particularly well suited for centrifugal pumps in the marine industry because of its high strength and low corrosion rates in high-velocity seawater.

MONEL K500 is non-magnetic. MONEL K500 should be annealed when welded and the weldment then stress relieved before aging.

Propeller and pump shafts.
Pumps and valves used in the manufacture of perchlorethylene, chlorinated plastics.

High Performance Alloys, Inc. stocks Alloy K500 in a range of sizes including 3/8"-2-1/2" diameter cold drawn, annealed and aged, and 2-3/4"-10" diameter hot finished and aged. Material can be supplied in random lengths, cut to order or machined to your specifications. Machining includes drilling, turning, tapping, threading, CNC shapes, flanges and more.


Chemical Requirements



Ni

Mn

Si

Fe

Al

S

C

Max



1.50

0.50

2.00

3.15

0.010

0.18

Min

63.00







2.30





Mechanical Property Requirements



Ultimate Tensile

Yield Strength (0.2% OS)

Elong.

Hardness

Rockwell C, min.



HardnessBrinell 3000 kg, min.

Cold Worked/SR
Over 1" (25.4mm) to 3"
Min 140 KSi 100 KSi 17.0 29 280
Max
Min 965 MPa 690 MPa
Max
Hot Worked/ Aged Hardened
Min 140 KSi 100 KSi 20.0 27 265
Max
Min 965 MPa 690 MPa
Max

Specifications

Form

Standard

Metal Type

UNS N05500

Bar

ASTM B865 QQ-N-286

Wire

AMS4676

Sheet

ASTM B865 QQ-N-286

Plate

ASTM B865 QQ-N-286

Fitting



Forging

QQ-N-286 Din 17754

Weld Wire

FM 60 ERNiCu-7

Weld Electrode
FM 190 ENiCu-7 Din 17753

Din

2.4375

Machining

Nickel & cobalt base corrosion, temperature and wear-resistant alloys, such as MONEL K500, are classified as moderate to difficult when machining, however, it should be emphasized that these alloys can be machined using conventional production methods at satisfactory rates. During machining these alloys work harden rapidly, generate high heat during cutting, weld to the cutting tool surface and offer high resistance to metal removal because of their high shear strengths. The following are key points which should be considered during machining operations:

CAPACITY- Machine should be rigid and overpowered as much as possible.
RIGIDITY- Work piece and tool should be held rigid. Minimize tool overhang.
TOOL SHARPNESS- Make sure tools are sharp at all times. Change to sharpened tools at regular intervals rather than out of necessity. A 0.015 inch wear land is considered a dull tool.
TOOLS- Use positive rake angle tools for most machining operations. Negative rake angle tools can be considered for intermittent cuts and heavy stock removal. Carbide-tipped tools are suggested for most applications. High speed tools can be used, with lower production rates, and are often recommended for intermittent cuts.
POSITIVE CUTS- Use heavy, constant, feeds to maintain positive cutting action. If feed slows and the tool dwells in the cut, work hardening occurs, tool life deteriorates and close tolerances are impossible.
LUBRICATION- lubricants are desirable, soluble oils are recommended especially when using carbide tooling. Detailed machining parameters are presented Tables 16 and17. General plasma cutting recommendations are presented in Table 18.

Table 16
RECOMMENDED TOOL TYPES AND MACHINING CONDITIONS
Operations
Carbide Tools
Roughing, with severe interruption
Turning or Facing C-2 and C-3 grade: Negative rake square insert, 45 degree SCEA1, 1/32 in. nose radius. Tool holder: 5 degree neg. back rake, 5 degree neg. side rake. Speed: 30-50 sfm, 0.004-0.008 in. feed, 0.150 in depth of cut. Dry2, oil3, or water-base coolant4.
Normal roughing
Turning or Facing C-2 or C-3 grade: Negative rate square insert, 45 degree SCEA, 1/32 in nose radius. Tool holder: 5 degree neg. back rake, 5 degree neg. side rake. Speed: 90 sfm depending on rigidity of set up, 0.010 in. feed, 0.150 in. depth of cut. Dry, oil, or water-base coolant.
Finishing
Turning or Facing C-2 or C-3 grade: Positive rake square insert, if possible, 45 degree SCEA, 1/32 in. nose radius. Tool holder: 5 degree pos. back rake, 5 degree pos. side rake. Speed: 95-110 sfm, 0.005-0.007 in. feed, 0.040 in. depth of cut. Dry or water-base coolant.
Rough Boring
C-2 or C-3 grade: If insert type boring bar, use standard positive rake tools with largest possible SCEA and 1/16 in. nose radius. If brazed tool bar, grind 0 degree back rake, 10 degree pos. side rake, 1/32 in. nose radius and largest possible SCEA. Speed: 70 sfm depending on the rigidity of setup, 0.005-0.008 in. feed, 1/8 in. depth of cut. Dry, oil or water-base coolant.
Finish Boring
C-2 or C-3 grade: Use standard positive rake tools on insert type bars. Grind brazed tools as for finish turning and facing except back rake may be best at 0 degrees. Speed: 95-110 sfm, 0.002-0.004 in feed. Water-base coolant.
Notes:
1 SCEA - Side cutting edge angle or lead angle of the tool.

2 At any point where dry cutting is recommended, an air jet directed on the tool may provide substantial tool life increases. A water-base coolant mist may also be effective.

3 Oil coolant should be premium quality, sulfochlorinated oil with extreme pressure additives. A viscosity at 100 degrees F from 50 to 125 SSU.

4 Water-base coolant should be premium quality, sulfochlorinated water soluble oil or chemical emulsion with extreme pressure additives. Dilute with water to make 15:1 mix. Water-base coolant may cause chipping and rapid failure of carbide tools in interrupted cuts.

Table 17
RECOMMENDED TOOL TYPES AND MACHINING CONDITIONS
Operations
Carbide Tools
Facing Milling
Carbide not generally successful, C- grade may work. Use positive axial and radial rake, 45 degree corner angle, 10 degree relief angle. Speed: 50-60 sfm. Feed: 0.005-0.008 in. Oil or waterbase coolants will reduce thermal shock damage of carbide cutter teeth.
End Milling
Not recommended , but C-2 grades may be successful on good setups. Use positive rake. Speed: 50-60 sfm. Feed: Same as high speed steel. Oil or water-base coolants will reduce thermal shock damage.
Drilling
C-2 grade not recommended, but tipped drills may be successful on rigid setup if no great depth. The web must thinned to reduce thrust. Use 135 degree included angle on point. Gun drill can be used. Speed: 50 sfm. Oil or water-base coolant. Coolant-feed carbide tipped drills may be economical in some setups.
Reaming
C-2 or C-3 grade: Tipped reamers recommended, solid carbide reamers require vary good setup. Tool geometry same as high speed steel. Speed: 50 sfm. Feed: Same as high speed steel.
Tapping
Not recommended, machine threads, or roll-form them.
Electrical Discharge Machining
The alloys can be easily cut using any conventional electrical discharge machining system (EDM) or wire (EDM).
Notes:
5 M-40 series High Speed Steels include M-41 , M-42, M-43, M-44, M-45 and M-46 at the time of writing. Others may be added and should be equally suitable.

6 Oil coolant should be a premium quality, sulfochlorinated oil with extreme pressure additives. A viscosity at 100 degree F from 50 to 125 SSU.

7 Water-base coolant should be premium quality, sulfochlorinated water soluble oil or chemical emulsion with extreme pressure additives. Dilute with water to make 15:1 mix.

Plasma Arc Cutting
Our alloys can be cut using any conventional plasma arc cutting system. The best arc quality is achieved using a mixture of argon and hydrogen gases. Nitrogen gas can be substituted for hydrogen gases, but the cut quality will deteriorate slightly. Shop air or any oxygen bearing gases should be avoided when plasma cutting these alloys.

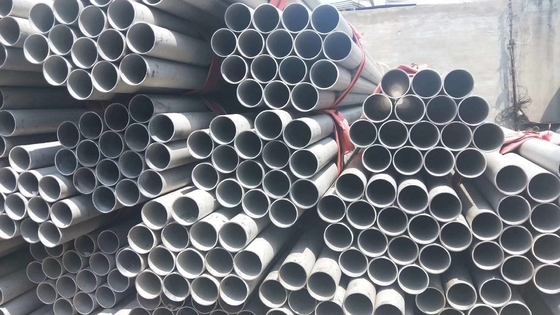

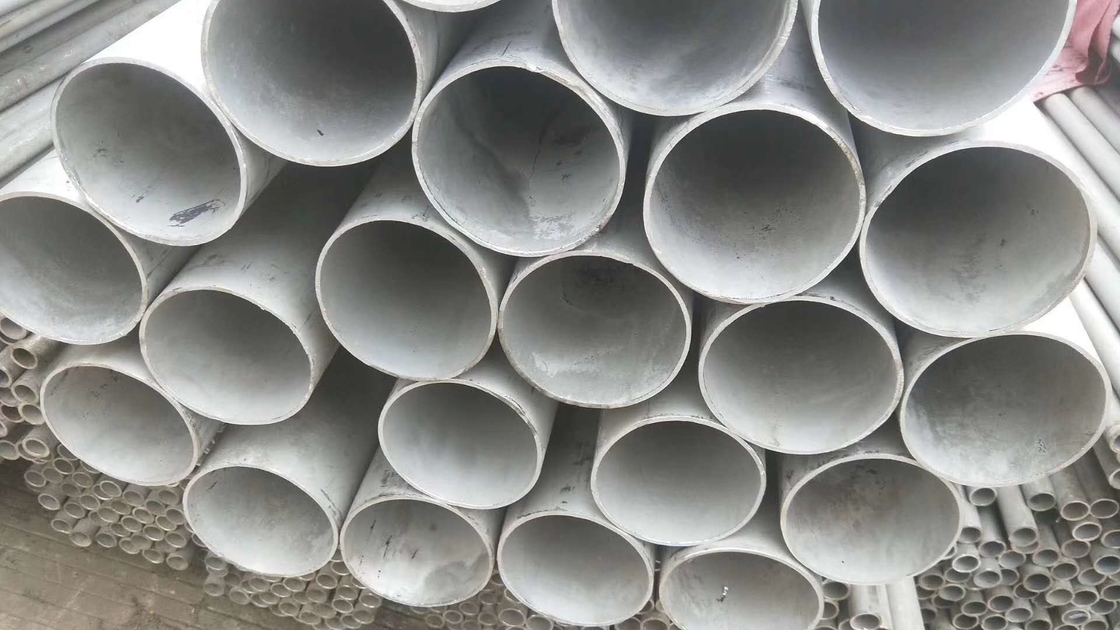

Hardness K500 Ni - Cu Seamless Alloy Steel Tube Pipe Monel K500 Material 0Hardness K500 Ni - Cu Seamless Alloy Steel Tube Pipe Monel K500 Material 1
