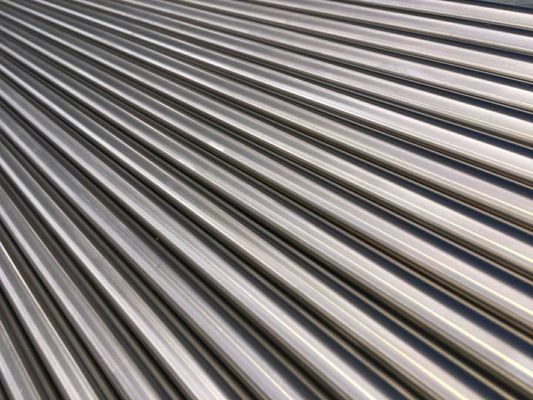

Hot Rolled ASTM A276 316L Stainless Steel Round Bar 145-150MM Dia 6000MM Long

Hot Rolled ASTM A276 316L Stainless Steel Round Bar 145-150MM Dia 6000MM Long
Hot Rolled ASTM A276 316L Stainless Steel Round Bar 145-150MM Dia 6000MM Long Hot Rolled ASTM A276 316L Stainless Steel Round Bar 145-150MM Dia 6000MM Long

Large Image :  Hot Rolled ASTM A276 316L Stainless Steel Round Bar 145-150MM Dia 6000MM Long

Product Details:
Place of Origin: China
Brand Name: Bao Steel
Certification: SGS ISO
Model Number: 316L
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: 4 USD/KG
Packaging Details: Export Packing
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000 KGS

Hot Rolled ASTM A276 316L Stainless Steel Round Bar 145-150MM Dia 6000MM Long

Description
OD: 150mm Surface: Bright And Black
Type: Hot Rolled Length: 1-12m
Grade: 316L
High Light:

ss round bars

,

stainless steel round rod

ASTM A276 316L Round Bar 145-150MM Dia 6000MM Long Per 3.1 Black and Bright Polish

Product Description

Stainless Steel 316/316L Round Bars Manufacturers, UNS S30400/S30403, 1.4301/1.4306 Stainless Steel Bars Suppliers

AISI EN / DIN ASTM/UNS EN AFNOR Reg.TM Forging
316 1. 4401 S31600 X5CrNiMo17.12.2 Z7CND17.11.02 NA A182 F316 Austenite
316L 1. 4404 S31603 X2CrNiMo17.13.2 Z3CND18.12.02 NA A182 F316L Austenite

Stainless steel 316/316L round bars are characterised by improved corrosion resistance in most acidic conditions, especially at higher temperatures and/or with chlorides present. Among 316 and 316L round bars 316L is more preferred for welded constructions. We are leading suppliers of “Dual Certified” stainless steel round bars meeting the requirements of both 316 and 316L.

Metline Industries is an ISO 9001: 2008 Certified manufacturer and supplier of 316/316L stainless steel round bars and stainless steel 316 rods, with a supply base to all destinations in India and worldwide. Metline stocks and supplies a full range of 316/316L stainless steel round bars from 8mm diameter to 600 mm forged bars with 1 meters to 6 meters length.

We specialise in the export of a wide range of 316L stainless steel bar stock products such as Steel Rounds, Squares, Hexagons, Bright Bars of various grades which are used as raw material by various manufacturers in engineering, forging, oil and gas components, drilling materials, tools & dies, as well as auto component industry.

Stainless Steel 316 is the standard molybdenum-bearing grade, second in importance to SS 304 amongst the austenitic stainless steels. The molybdenum gives SS 316 better overall corrosion resistant properties than Stainless Steel 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. Stainless Steel 316 has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields. SS 316 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

SS 316L, the low carbon version of SS 316 and is immune from sensitisation (grain boundary carbide precipitation).SS 316H, with its higher carbon content has application at elevated temperatures, same as SS 316Ti which is a Titanium stabilised grade .SS 316N is nitrogen enhanced with greater strength than SS 316 .

“316/316L Stainless Steel Round Bars Stock Available for Immediate Deliveries Worldwide!”

 Stainless Steel 316/316L Round Bars

Prices for Stainless Steel 316/316L Round Bars Starting at Rs. 195/kg

Metline is one of the world most reliable supplier of stainless steel round bars with shortest delivery times. It can be supplied in a range of sizes and finishes with varying tolerances. Cold-finished stainless steel bar is usually supplied to meet the international standards of ASTM A276, A484 or A582/A484M.

Manufacturing Specifications for 316/316L Stainless Steel Round Bars, 316 Stainless Steel Rods

  1. ASTM A276 / A276M, Standard Specification for Stainless Steel Bars and Shapes
  2. ASTM A484 / A484M, Standard Specification for General Requirements for Stainless Steel Bars, Billets, and Forgings
  3. ASTM A479/ A479M, Standard Specification for Stainless Steel Bars and Shapes for Use in Boilers and Other Pressure Vessels

Designation of Stainless Steel 316/316L Grade Round Bars

Stainless Steel [SS] 316 / 316H / 316 L / 316N / 316Ti
AISI 316 / 316H / 316 L / 316N / 316Ti
UNS S31600 / S31609 / S31603 / S31651 / S31635
Werkstoff Nr. 1.4401 / 1.4404 / 1.4432 / 1.4435 / 1.4429 / 1.4571

Chemical Composition of Stainless Steel 316/316L Round Bars/Rods

SS 316 316H 316N 316L 316Ti
Ni 10 – 14 10 – 14 10 – 14 10 – 14 10 – 14
Fe Balance
Cr 16 – 18 16 – 18 16 – 18 16 – 18 16 – 18
Mo 2 – 3 2 – 3 2 – 3 2 – 3 2 – 3
C 0.08 max 0.10 max 0.03 max 0.03 max 0.08 max
Si 0.75 max 0.75 max 0.75 max 0.75 max 0.75 max
Mn 2 max 2 max 2 max 2 max 2 max
P 0.045 max 0.045 max 0.045 max 0.045 max 0.045 max
S 0.030 max 0.030 max 0.030 max 0.030 max 0.030 max
N 0.1 max   0.1 max 0.1 max 0.1 max
Ti         5 X % (C + N)



Mechanical and Physical Properties of Stainless Steel 316/316L Round Bars

Density 8.0 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %



Production and Supply Range for Stainless Steel 316/316L Round Bars – Buy Now!

Standard 316/316L, 1.4401, 1.4404
Designation ASTM A276, A479, ASME SA276, 479
Range 3 MM TO 350 MM DIA
Finish Bright, Polish & Black
Form Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.



Stainless Steel 316/316L Bright Round Bars Manufacturers, Suppliers Size Range

Metline Industries is a leading supplier of cold drawn machined bright bars with highest level of dimensional accuracy, right mechanical properties, and excellent machining capabilities.

Type SIZES (mm) SIZES (Inches) ISO Tolerance
Cold Drawn and Polish 3.00 – 75.00 1/8” – 3.00” h8-h9-h10-h11, ASTMA-484
Cold Drawn and Ground 10.00 – 75.00 5/6” – 2.50” h8-h9-h10-h11
Peeled and Polished 40.00 – 150.00 1.50” – 6.00” h11, ASTMA-484 h11-DIN 1013
Peeled and Ground 20.00 – 50.00 3/4″ – 2.00” h9-h10-h11, ASTMA-484



Specifications for Stainless Steel 316/316L Cold Drawn Round Bars

We can give Chamfering of 30 or 45 degrees on one or both the ends. For Strain-Hardened Bars, we can supply in B8(304) and B8M(316) in Class1 and Class2.

Condition Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished Cold Drawn, Centreless Ground & Polished (Strain Hardened)
Grades 201, 202, 303, 304, 304L, 310, 316, 316L, 321, 410, 420, 416, 430, 431, 430F & others 304, 304L, 316, 316L
Diameter (Size) 2 mm to 5mm (1/8″ to 3/16″) 6mm to 22m (1/4″ to 7/8″) 10mm to 40mm (3/8″ to 1-1/2″)
Diameter Tolerance h9 (Din 671),h11
ASTM A 484
h9 (Din 671)
ASTM A 484
h9 (Din 671),h11
ASTM A 484
Length 3/4/5.6/6 meter
(12/14ft/20feet)
3/4/5.6/6 meter
(12/14ft/20feet)
3/4/5.6/6 meter
(12/14ft/20feet)
Length Tolerance -0/+200mm or
+100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”)
-0/+200mm or
+100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”)
-0/+200mm
(-0 ”/+1 feet)



Specifications for Peeled Turned Polished Stainless Steel 316/316L Round Bars, Forged Bars

We can manufacture and offer stainless steel hot rolled round bars and rods in “As rolled condition” or “Heat treated condition”. All products supplied by Metline Industries have passed IGC Practice E test, as well as UT Test.

Condition Peeled, Centre less Ground & Polished Peeled & Polished Peeled
(Rough Turned)
Forged,
Rough Turned
Grades 201, 202, 303, 304, 304L, 310, 316, 316L, 321, 410, 420, 416, 430, 431, 430F & others 304, 304L, 316, 316L, 410, 416, 420, 431 303, 304, 304L, 316, 316L, 410, 416, 420, 431
Diameter (Size) 20mm to 85mm
(3/4 ” to 3–1/4 ”)
85mm to 140mm
(3-1/4 ” to 4–3/4 ”)
25mm to 140mm
(1 ” to 5–1/2 ”)
150mm to 400mm (6 ” to 16”)
Diameter Tolerance h9 (Din 671)
ASTM A 484
h11 K12/K13
(Din 1013)
-0mm/+3mm
(-0 ”/+0.12 ”)
Length 3/4/5.6/6 meter
(12/14ft/20feet)
3/4/5.6/6 meter
(12/14ft/20feet)
3/4/5.6/6 meter
(12/14ft/20feet)
3 meter -5 meter
10 feet -16 feet
Length Tolerance -0/+200mm or
+100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”)
-0/+200mm or
+100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”)
-0/+1000mm or 500mm (-0 ”/+3 feet or +2 feet) -0/+2 meter-
-0/+6 feet
