Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube

Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube
Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube

Large Image :  Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube

Product Details:
Place of Origin: China
Brand Name: Mittel Steel
Model Number: A333 Gr.6, A53 GR.B, A333 GR1
Payment & Shipping Terms:
Minimum Order Quantity: 2 tons
Price: USD 500-858 per ton
Packaging Details: Standard seaworthy packaging by plywood pallet.
Delivery Time: within 7-10 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 30000 tons per month

Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube

Description
Certification: CE, ISO, BV, SGS Product Name: A333 Gr1 API 5l X52 Cryogenic Tube
OD: 12mm-620mm Wall Thickness: 0.25mm-45mm
Length: 1000mm-12000mm Shape: Round
Standard: ASTM, AISI, JIS, DIN, EN, GB Technique: ERW
Sample: Allowed Application: Machinery
High Light:

carbon steel seamless pipe

,

structural steel pipes

Multifunctional 4 Inch A53 GR.b /A333 gr1/API 5l x52 Cryogenic tube



Descriptions A333 Gr1 API 5l x52 Cryogenic tube
Structural pipe

A333 Gr.6, A53 GR.B, A333 GR1

Liquid pipe 20# q295b-e, q345b-e
High pressure boiler tube

20G 15MnG 20MnG 15CrMoG, 12Cr1MoVG

St35.8, sa106b, sa106c, sa210a, sa210c, A333P2, A333P11, A33P12, A333P22, A33P36, A333P91, A333P92, A335T2, A335T11, A335T12, A335T22, A335T91, A335T23, A335T9

Pipeline

API SPEC 5L, X42, X52, X60, X65,X70,X80

ASTMA53, ASTM A106, ASTM A333, BS301, BS3602, BS3603, BS3604, PSL1, PSL2, DNV-OS-F101, CSA-Z245

Alloy pipe 4140, 42CrMo, 32CrMo, 15CrMo,
Packing Black paint, Varnish painting, Tarpaulin packing
End Common round end, beveled.
Processing Galvanizing; cutting; making thread outside the pipe; Machining.



Production Description

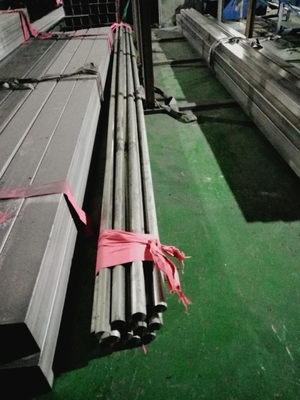

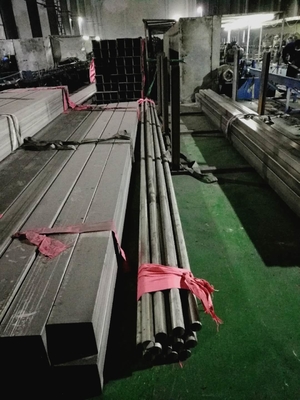

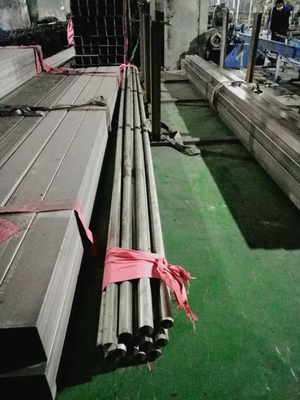

1) Precision pipe Images, Usage and Standard

Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube 0



Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube 1



Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube 2



Usage: Hydraulic Pipe, Fluid Pipe, physical construction, hydraulic device, automobile parts, Steel sleeve, bearing, hydraulic cylinder, Pneumatic cylinder and hydraulic pipe



Standard: ISO, JIS, GB, DIN, ASTM, API



2) Mechanical properties



Mechanical properties of common precision pipe

Standard Grade Designation (%)
    Cold finished (hard)(BK) Cold finished (Soft) BKW
    UTS(Ultimate Tensile Strength) percentage elongation after fracture UTS(Ultimate Tensile Strength) percentage elongation after fracture

    σ b (Mpa) δ 5(%) σ b (Mpa) δ 5(%)
GB/T3639-2000 10# 410 6 375 10
GB3077-88 20# 510 5 450 8
  35# 590 4 550 6
  45# 645 4 630 5
  40cr 784 12
  37Mn5 784 12



Remarks:



Cold Finished (Hard): Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation



Cold Finished (Soft): The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding)



Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube 3



Multifunctional 4 Inch A53 GR.B /A333 Gr1/API 5l X52 Seamless Steel Pipe Cryogenic Tube 4



FAQ

Q: What about your payment term?

A: Usually T/T or L/C, 30% deposit and 70% before delivery.

Q: what about your standard delivery date ?

A: 30 days after receiving deposit

Q: How about your capacity ?

A: For steel pipes, 50,000 tons per month, 600,000 tons per year. For pipe fittings, 30,000 tons per year

Q: what about your package ?

A: Usually as per customer's requests.

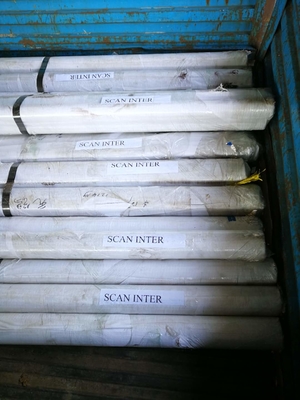

Common packing information: Small size in bundles, big size in bulk, some sizes with plastic cap to protect both ends, seaworthy packaging.

Q: What is your main market &main customers ?

A: We have 12 years experience on steel pipes & pipe fittings. Our main market includes China, Singapore etc. Main Customers including HYST, Keppel group etc.

Q: If products have some quality problem,how would you deal with?

A: We will responsible for all of our quality problems.

Q: How to get accurate price / quotation from you?

A: Please kindly tell us below details and we'll send our quotation to you ASAP:

1) Pipe's outer diameter

2) Wall thickness

3) Section Shape (round, square etc.)

4) Length for each pipe

5) Steel grade

6) Standard (e.g.: API 5L)

7) Order quantity

8) Designation (BK, BKW etc.)

9) Trade Terms

P.S.: more detailed information you clarified, more exact price we provided.
