Product Details:
|
| Certification: | CE, ISO, BV, SGS | Stock: | Always In Good Stock |
|---|---|---|---|
| Product Name: | Hot Dipped Galvanized Steel Coil | Surface: | Galvanized |
| Width: | 1000-2000mm | Length: | 2000-6000mm |
| Type: | Hot Dipped | Thickness: | 0.5mm-3.0mm |
| Standard: | ASTM, AISI, JIS, DIN, EN, GB | Sample: | Allowed |
| Application: | Industrial | Grade: | SPCC SPCD SPCE |
| High Light: | hot dipped galvanized steel coils,galvanized steel sheet in coil |
||

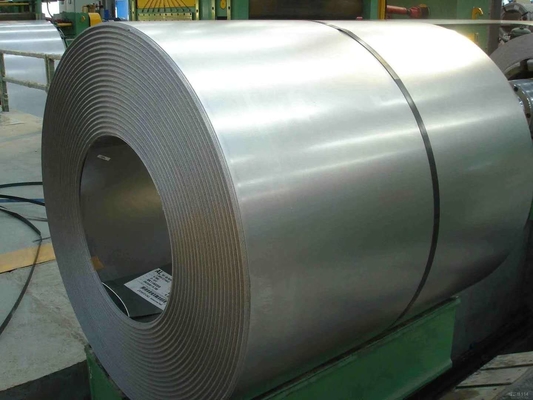

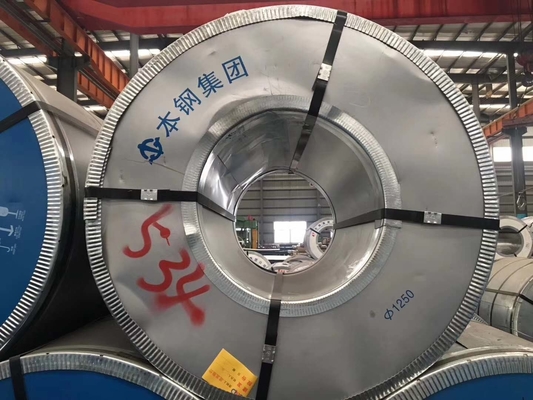

GI/SECC DX51 ZINC Cold rolled coil / Hot Dipped Galvanized Steel Coil / Sheet / Plate / Strip
Galvanized Coil / Plate 0.1-16mm
| Thickness | 0.1mm-16mm |
| Width | 600mm,1000mm,1200mm,1219mm, 1250mm, 2200mm, 2400mm, 2500mm,or be required |
| Grade | SGCC, DX51D, DX53D, DX54D. Q195, Q235, Q345 |
| Galvanized Quantity |
30-40, 80, 100, 120, 180, 220, 250, 270, 275, 350, 430, 500 Or as customer required |
| Application |
a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear) |
| Package |
1. Mill's standard package,wrapped with anti-rust paper;; 2. no package; 3. exporting package with steel pallet 4. according to requirement |
| Delivery time | Normally according to the order quantity, 15-35days |
| Purpose | Grades | Yield strength/Re/MPa | Tensile strength/ Rm/MPa | Elongation/A80/%(2) |
| Commercial | DC(X)51D+Z | - | 270~500 | ≥ 22 |
| Drawing | DC(X)52D+Z | 140~300 | 270~420 | ≥ 26 |
| Deep drawing | DC(X)53D+Z | 140~260 | 270~380 | ≥ 30 |
| Structure | S220GD+Z | ≥ 220 | ≥ 300 | ≥ 20 |
| S250GD+Z | ≥ 250 | ≥ 330 | ≥ 19 | |
| S280GD+Z | ≥ 280 | ≥ 360 | ≥ 18 | |
| S320GD+Z | ≥ 320 | ≥ 390 | ≥ 17 | |
| S350GD+Z | ≥ 350 | ≥ 420 | ≥ 16 | |
| S390GD+Z | ≥ 390 | 460-620 | ≥ 15 | |
| S450GD+Z | ≥ 450 | 500-700 | ≥ 14 | |
|
1. If the yield point is not pronounced, the value applies to Rp0.2; If the yield point is pronounced, the value applies to Rel.
2. When the thickness is less than or equal to 0.7 mm and greater than 0.5 mm, the minimum value for elongation is reduced by 2 units. For a thickness less than or equal to 0.5 mm, the minimum value is reduced by 4 units. |
||||
Packaging
| Packaging | Standard Export Wooden Pallet or without pallet |
| Shipping Delivery: | in 30 days after received your deposit or L/C |
1) About size
Commercial size are in stock, if you wanted a customized size, there'll ask MOQ and please contact us to verify
2) About the packaging
Q What's common package?
A Common package is anti-rust paper packed.
3) About steel grade
Q Can you make the coil according to the standard that we request
A Generally, we provide the steel in an equivalent standard, but we also manufacture the steel according to customer' request standard, it may request MOQ and please contact us to verify
4) About certificate
Q Do you provide a Mill Test Certificate or Quality Certificate?
A Yes, we provide it.
And if you need other certificate, please let us know, we'll prepare it accordingly
