DIN 1.7147 20MnCr5 alloy Steel Round Bar 3 - 12m Length MTC ISO SGS

China DIN 1.7147 20MnCr5 alloy Steel Round Bar 3 - 12m Length MTC ISO SGS supplier
DIN 1.7147 20MnCr5 alloy Steel Round Bar 3 - 12m Length MTC ISO SGS supplier DIN 1.7147 20MnCr5 alloy Steel Round Bar 3 - 12m Length MTC ISO SGS supplier

Large Image :  DIN 1.7147 20MnCr5 alloy Steel Round Bar 3 - 12m Length MTC ISO SGS

Product Details:

Place of Origin: China
Brand Name: Bao Steel
Certification: MTC ISO SGS
Model Number: 20MnCr5

Payment & Shipping Terms:

Minimum Order Quantity: 5 Tons
Price: 785 USD/Ton
Packaging Details: Export Packing
Delivery Time: 7 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 500 Tons
Contact Now
Detailed Product Description
OD: 6-600mm Surface: Black And Bright
Length: 3-12m Type: Hot Rolled
Condition: Heat Treatments

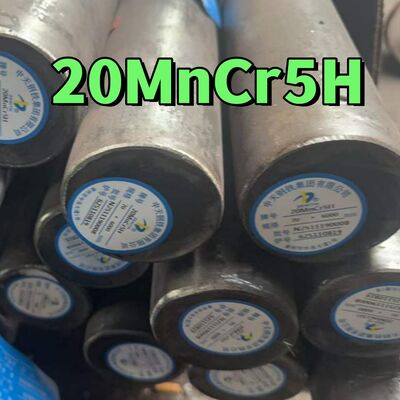

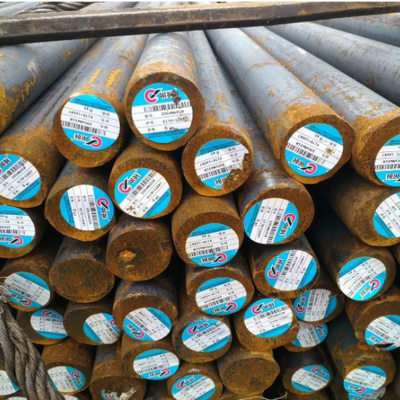

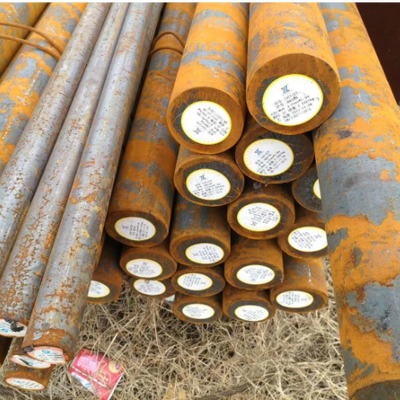

20MnCr5 Steel Round Bar Hot Rolled Alloy Bar 20Mncr5 Material DIN 1.7147 Special Alloy Steel Rod

Grade :20MnCr5
Number:1.7147
Classification:Alloy special steel
Standard:
EN 10084: 2008 Case hardening steels. Technical delivery conditions
Equivalent grades:Go here



Chemical composition % of steel 20MnCr5 (1.7147): EN 10084-2008

Elements not quoted in this table shall not be intentionally added to the steel without the agreement of the purchaser, other than for the purpose of finishing the heat.
Steels with improved machinability as a result of the addition of lead or higher sulfur contents, depending on the manufacturing process up to around 0.1 % S, may be supplied on request. In this case, the upper limit of the manganese content may be increased by 0.15 %
CSiMnPSCr
0.17 - 0.22max 0.41.1 - 1.4max 0.025max 0.0351 - 1.3


Mechanical properties of steel 20MnCr5 (1.7147)


Brinell hardness (HBW): (+S)255
Brinell hardness (HBW): (+A)217
Brinell hardness (HBW): (+TH)170 - 217
Brinell hardness (HBW): (+FP)152 - 201
Brinell hardness (HBW): (+N)140 - 201


Equivalent grades of steel 20MnCr5 (1.7147)
Warning! Only for reference

EU
EN
USA
-
Germany
DIN,WNr
Japan
JIS
France
AFNOR
Italy
UNI
China
GB
Poland
PN
Czechia
CSN
Finland
SFS
Russia
GOST
Inter
ISO
20MnCr5
SAE5120
20MnCr5
SMnC420H
20MC5
20MnCr5
20CrMn
20CrMnTi
20MnCr
18HGT
14221
510
18KHG
20MnCr5


NEW opportunities for buyers!
Post free buying requirement of steel 20MnCr5 (1.7147)

Mechanical properties

ReHMinimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale
RmTensile strength / Zugfestigkeit / Resistance a la traction
AMinimum elongation / Mindestwert der Bruchdehnung / Allongement minimal
JNotch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc


Heat treatment conditions


+ASoft annealed
+ACAnnealed to achieve spheroidization of the carbides
+ARAs rolled
+ATSolution annealed
+CCold drawn / hard
+CRCold rolled
+FPTreated to ferrite-pearlite structure and hardness range
+IIsothermal annealing
+LCCold drawn / soft
+MThermo mechanical rolling
+NNormalized
+NTNormalized and tempered
+PPrecipitation hardened
+PEPeeled
+QAAir quenched and tempered
+QLLiquid quenched and tempered
+QTQuenched and tempered
+STreated to improve shearability
+SHAs rolled and turned
+SRCold drawn and stress relieved
+TTempered
+THTreated to hardness range
+WWWarm worked
+UUntreated



Alloy special steel
Chemical composition of steel 20MnCr5 (1.7147), Standards of steel 20MnCr5 (1.7147)
Mechanical Properties of steel 20MnCr5 (1.7147) Equivalent grades of steel 20MnCr5 (1.7147)
Tensile Strength, Elongation, Proof strength, Hardness
