Product Details:
|
| Certification: | CE, ISO, BV, SGS | Stock: | Always In Stock |
|---|---|---|---|
| Type: | Galvanized Steel Pipe | OD: | 15mm-350mm |
| Wall Thickness: | 2.5mm-25mm | Length: | 1000mm-12000mm |
| Standard: | AISI, ASTM, JIS, DIN, EN, GB | Technical: | ERW |
| Zinc Layer: | 80, 120, 725 | Sample: | Allowed |
| High Light: | carbon steel seamless pipe,structural steel pipes |
||

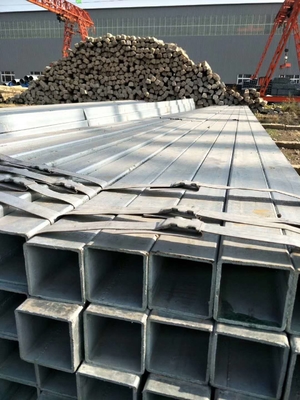

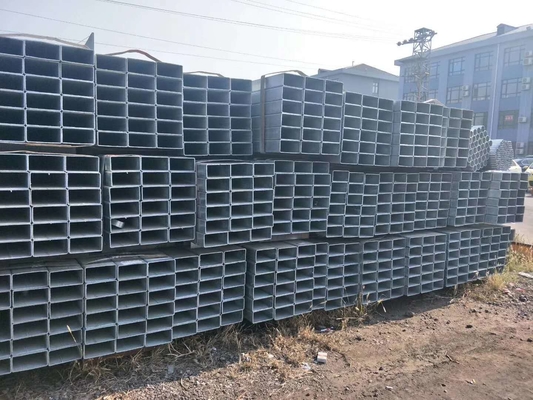

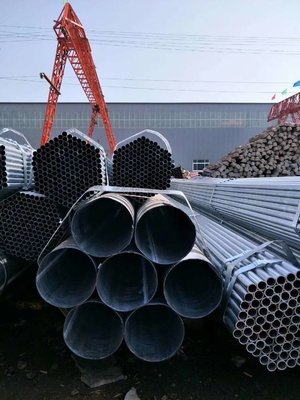

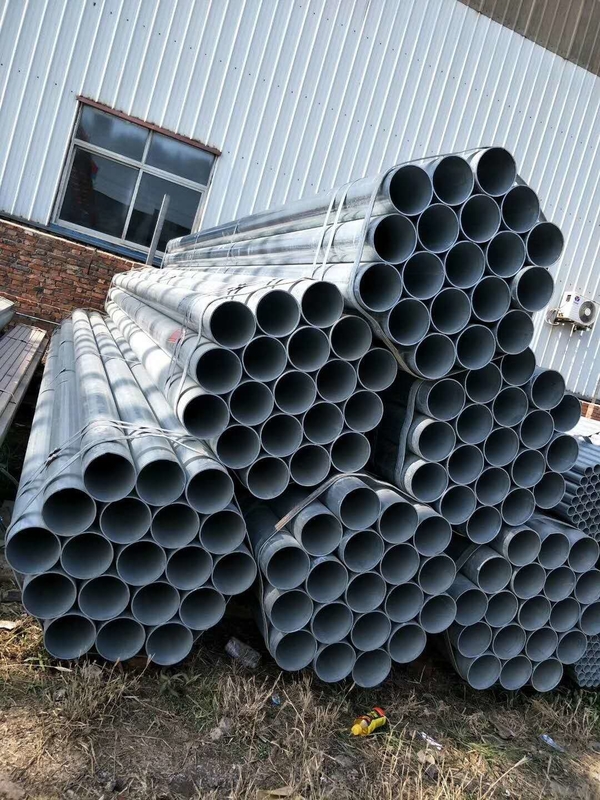

galvanized steel pipe zinc coated surface/ gi pipe / galvanized hollow section
| Product Name | galvanized steel pipe | |||
| Size | OD | 20~406mm(1/2inch~16inch) in theory | ||
| Thickness | 1.2~15.7mm | |||
| Length | Any Length Below 16 Meter | |||
| Standard | GB/T3091-2008 ASTM A53 BS1387 BS EN39 ASTM A500 BS 4568 BS EN31 | |||
| Material | Chinese Grade | Q215 Q235 According to GB/T700;Q345 According to GB/T1591 | ||
| Foreign Grade | ASTM | Grade B,Grade C,Grade D,Grade 50 | ||
| EN | S185,S235JR,S235JO,E335,S355JR,S355J2 | |||
| JIS | SS330,SS400,SPFC590 | |||
| Usage | Used For Water, Gas, Stream, Combustible Fluids And Other Liquid Delivery | |||
| Ends |
Plain, Beveled, Thread With Couplings Or Sockets; Plastic Caps And Steel Rings Can Be Provided If Possible |
|||
| Surface | Bared, Galvanized, Oiled, Color Paint, 3PE; Or Other Anti-corrosive Treatment | |||
| Inspection |
With Chemical Composition and Mechanical Properties Analysis; Dimensional and Visual Inspection, Also With Nondestructive Inspection |
|||
| Technique | Hot Rolled Or Cold Rolled ERW | |||
| Package | Hexagon Shape Bundle, Covered With Tarpaulin, Containers Or In Bulk | |||
| Date of Delivery |
According to The Specifications And the Quantities Of Each Contract, Time Start To Begin When We confirm the Date of the Earnest or L/C |
|||
| Method of Payment | T/T L/C West Union | |||
| Method Of Delivery | Terms According To the <INCOTERMS 2000> for International Trading, | |||
| Others | N/A | |||
| Size | OD | 1/2-20"(21.3mm-323.9mm) | |
| Wall Thickness |
0.5-30mm. SCH30,SCH40,STD,XS,SCH80,SCH160, XXS etc. |
||
| ZINC COATED |
1)Pre-galvanized:Z60-120g/m2 2)Hot dip galvanized:Z200-500g/m2 |
||
| Steel material |
Q195 Q215 Q235 Q345 |
||
| Standard | ISO API CE SGS AISI ASTM BS DIN GB JIS | ||
| Section shape | Round | ||
| Type | Welded Pipe | ||
| Technique |
Electronic Resistance Welded (ERW ) Electronic Fusion Welded (EFW) Double Submerged Arc Welded (DSAW) |
||
| Welded Line Type | Longitudinal | ||
| Length | 1m-12m(customizable) | ||
| End protector |
1) Plastic pipe cap 2) Iron protector |
||
| Surface Treatment |
1) Bared 2) Black Painted (varnish coating) 3) Galvanized |
||
Surface Treatment:
Pre-Galvanized( Zinc Coating is about 40-180g/sqm)
Hot Dipped Galvanized Pipe( zinc coating 230-500g/sqm)
1) We can accept small quantity inquiry
2) We can produce pipes according to your requirements
3) We can provide some accessories if you need
4) If you can not find the size you need, or the product you want, you can contact us directly! We can product according to your needs
Why you choose us?
1. more than 20 years experiences in steel business
2. good quality
3. competitive price
4. meet your needs via reprocessing
5. excellent service
6. short delivery time
7. long mutual beneficial business cooperation
Packing:in bundle,standard export packing or as customer demands.
Delivery:5-10 days if goods in stock,15-20 days if goods not in stock.
